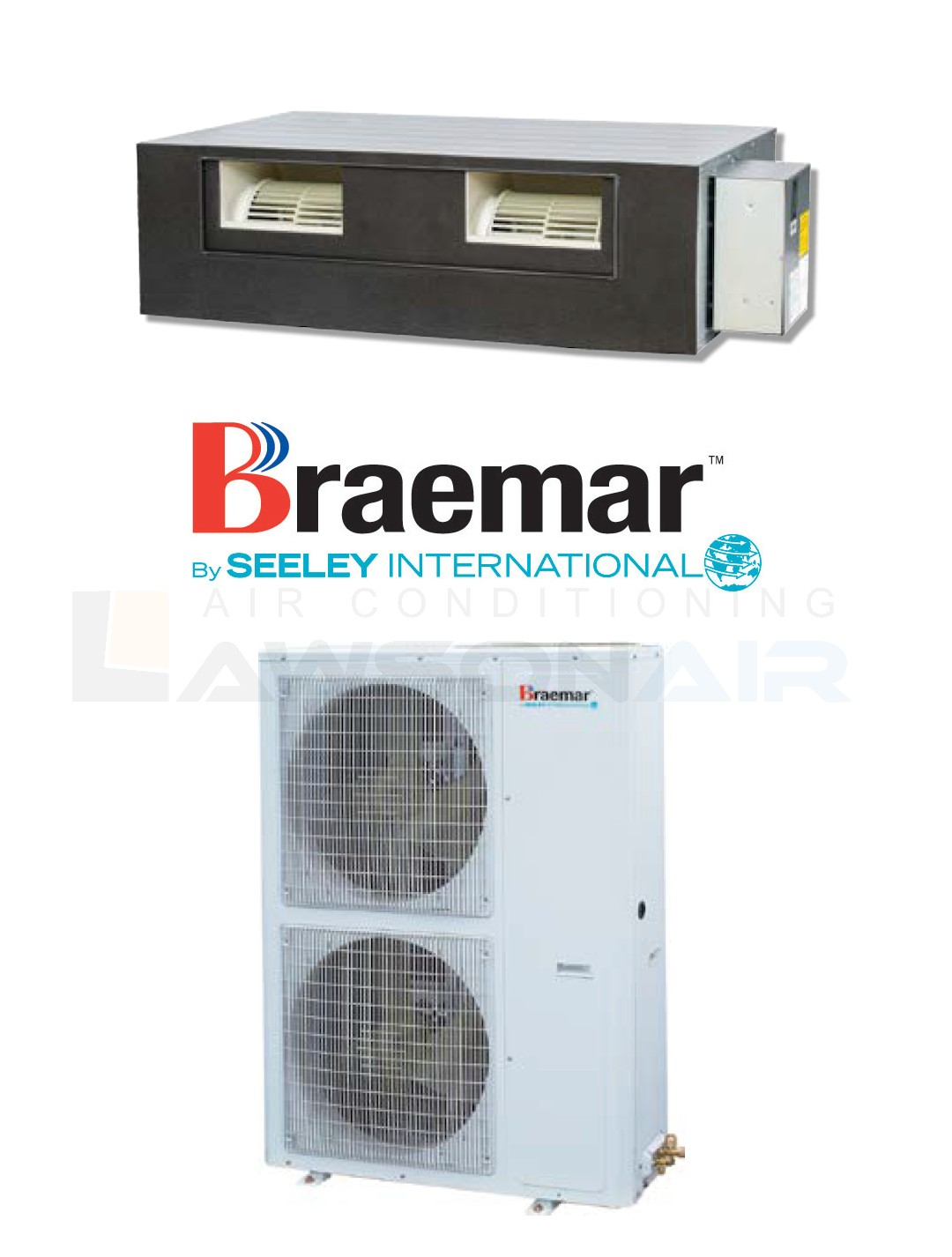

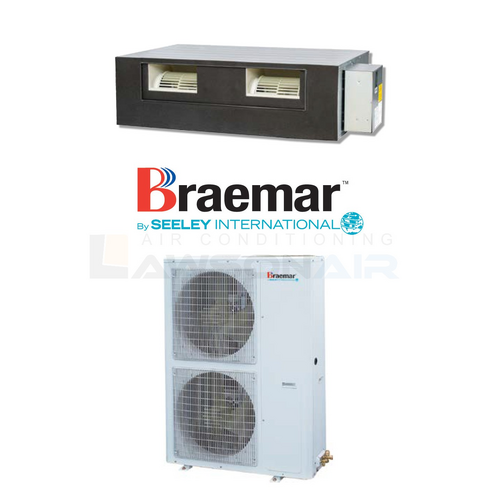

Braemar 7.0kW SDHV07D1S 1 Phase Ducted Air Conditioning System

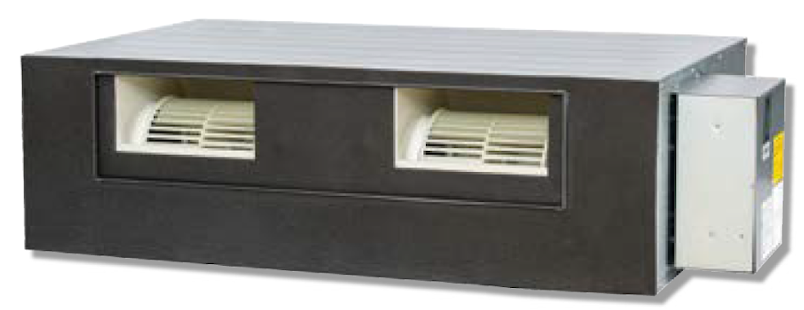

SDHV07D1S / SCHV07D1S Braemar Ducted
$1,902.73 Excl GST

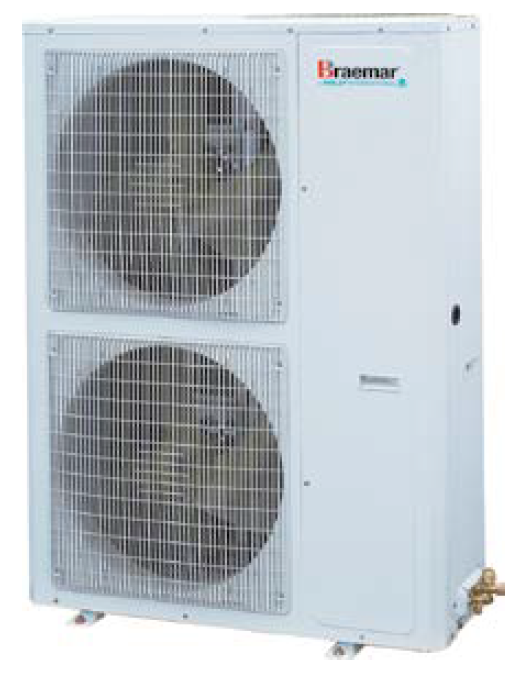

Braemar SDHV07D1S 7.0kW Single Phase Ducted System - Includes Outdoor Unit SCHV07D1S
All Braemar ducted inverter systems feature DC inverter technology. An inverter is a power conversion circuit that electronically regulates the voltage, current and frequency of an air conditioner. This circuit controls the compressor, outdoor and indoor fans, maximising the air conditioner's efficiency.
Key Features:
- Power Saving
- Efficient and Quiet
- Low Profile Design
- Flexible Outdoor Placement
- Easy and Flexible Installation
(SDHV07D1S)
Indoor | SDHV07D1S | ||
Outdoor | SCHV07D1S | ||
Refrigerant Type | R410A | ||
Power Supply (Volts - Phase - Hz) | 220-240 / 1 / 50 | ||
Cooling | Capacity - Rated (Range) | kW | 7.0 (2.4 - 9.5) |
Power Input (Range) | kW | 2.18 (0.85 - 2.50) | |
Max Current Input (Indoor / Outdoor) | 1 / 16 | ||
Efficiency - Rated | W/W | 3.21 | |
Ambient Temperature Range | °C | -15 - 48 | |
Heating | Capacity - Rated (Range) | kW | 8.0 (2.4 - 10.0) |
Power Input (Range) | kW | 2.28 (0.80 - 2.75) | |
Max Current Input (Indoor / Outdoor) | 1 / 16 | ||
Efficiency - Rated | W/W | 3.51 | |
Ambient Temperature Range | °C | -10 - 24 | |
Indoor Unit | Dimensions (WxDxH) | mm | 1220 x 290 x 790 |
Net Weight | kg | 47.0 | |
Min/Max Airflow | L/s | 250 - 500 | |
Range (9 Settings) | Pa | 0 - 200 | |
Sound Pressure Level | dBA(@spl) | 40 - 47 | |
Outdoor | Dimensions (WxDxH) | mm | 980 x 790 x 427 |
Net Weight | kg | 69.0 | |
Compressor Type | - | - | |
Fan Motor Output | W | - | |
Sound Pressure Level | dBA(@spl) | 56 | |
Sound Power | dBA(@spl) | - | |
Pipe Size | Pipe Sizes | mm | 9.53 / 15.88 |
Coupler Style | - | - | |
Minimum Length | m | - | |
Maximum Length | m | 50 | |
Pre Charge Length | m | 7 | |
Additional Refrigerant | g / m | 60 | |
Lift | m | 15 |
SKU | SDHV07D1S |
Brand | Braemar |
Shipping Weight | 116.0000kg |
