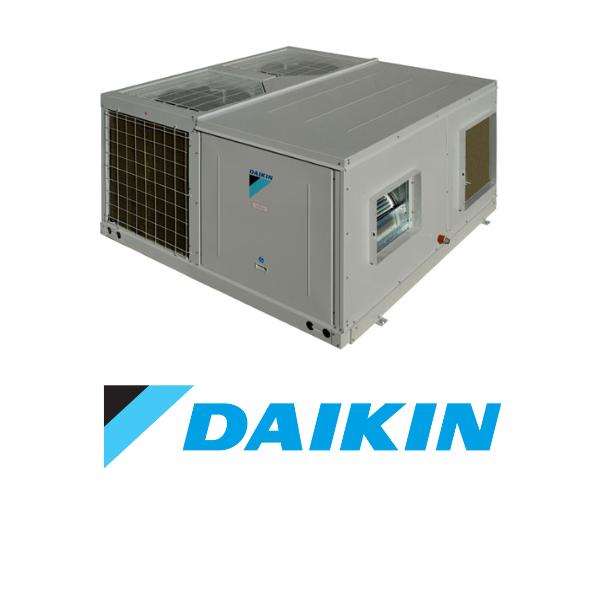

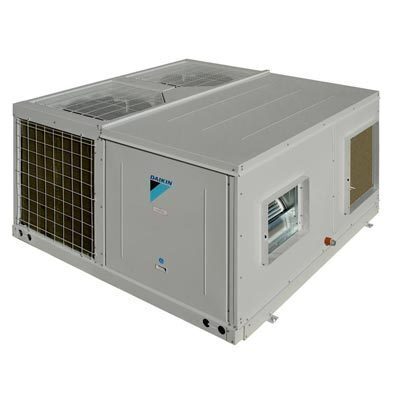

Daikin 26.5kW UAYQ90CY1A Rooftop Package Air Conditioning Unit
UAYQ90CY1A Daikin Rooftop Package
$11,117.27 Excl GST
.jpg)
NOTE: This is a Special Order Product - Contact our Sales Team for Enquiries on Package Units
Daikin UAYQ90CY1A 26.5kW Rooftop Package Unit (Includes Wall Controller)
Daikin has designed its lineup of Rooftop Packaged Units with a focus on meeting the demands of commercial settings, ensuring adaptability and straightforward installation. Featuring a sleek light cream color, a flat top, and a compact design, these units offer an aesthetically pleasing and tidy look when placed within the line of sight. Crafted from resilient powder-coated sheet metal and equipped with corrosion-resistant fixings, this unit proves to be exceptionally well-suited for the challenging conditions of the Australian climate.
Features:
- Base Beam
- Flexible Air Supply
- Convertable Return and Air Supply
- Powder Coated Condensate Drain Pan
- Return Air Filters
- Energy Efficiency
- Extensive Controls Capability
(UAYQ90CY1A)
| Package Unit | UAYQ60CY1A | UAYQ90CY1A | UAYQ120CY1A | UAYQ150CY1A | UAYQ180CY1A | UAYQ210CY1A |
|---|---|---|---|---|---|---|
| Rated Cooling Capacity (kW) | 16.27 | 26.54 | 34.42 | 42.81 | 53.11 | 63.69 |
| Rated Heating Capacity (kW) | 15.24 | 25.68 | 35.78 | 43.10 | 56.10 | 63.95 |
| Rated Input Power Cool/Heat (kW) | 4.87 / 4.69 | 8.18 / 7.33 | 10.95 / 10.84 | 13.64 / 12.86 | 17.15 / 15.54 | 20.53 / 18.58 |
| EER/COP (kW) | 3.34 / 3.25 | 3.24 / 3.50 | 3.14 / 3.30 | 3.14 / 3.35 | 3.10 / 3.61 | 3.10 / 3.44 |
| Power Supply (V/Ph/Hz) | 380-415 / 3 / 50 | |||||
| Refrigerant Charge | 5.50 | 6.10 | 5.8+5.8 | 7.2+7.2 | 8.7+8.7 | 10.4+10.4 |
| Refrigerant Type/Control | R410A / EEV | |||||
| Evaporator Airflow Rate (l/S) | 732 | 1560 | 2030 | 2670 | 3160 | 3450 |
| Evaporator External Static Pressure (Pa) | 59 | 147 | 206 | |||
| Evaporator Condensate Drain Size (mm) | 25 | |||||
| Condenser Airflow Rate (l/S) | 2313 | 3884 | 5664 | 5710 | 6090 | 9534 |
| Condenser Sound Pressure Level (dBA) | 67 | 68 | 64 | 65 | 68 | 70 |
| Condenser Sound Power Level (dBA) | 82 | 83 | 87 | 90 | ||
| Compresser Quantity | 1 | 2 | ||||
| Unit Dimensions mm (HxWxD) | 1110 x 1060 x 1740 | 1150 x 1638 x 2063 | 1028 x 2209 x 2113 | 1130 x 2209 x 2113 | 1048 x 2209 x 2670 | 1302 x 2209 x 2670 |
| Unit Weight Without Packaging (kg) | 310 | 445 | 580 | 610 | 830 | 880 |
| SKU | UAYQ90CY1A |
| Brand | Daikin |
| Shipping Weight | 445.0000kg |
| Shipping Width | 2.063m |
| Shipping Height | 1.150m |
| Shipping Length | 1.638m |
| Shipping Cubic | 3.886073100m3 |
| Unit Of Measure | ea |
Daikin offers a 5-year warranty for all of their Air Conditioners and Controllers.
