Daikin Premium Slim-Line 12.5kW FBA125B-VF2Y 3 Phase Air Conditioning System
FBA125B-VF2Y Daikin Slim-Line Inverter
$5,807.99 Incl GST
$5,279.99 Excl GST
In Stock
$5,279.99 Excl GST
.jpg)

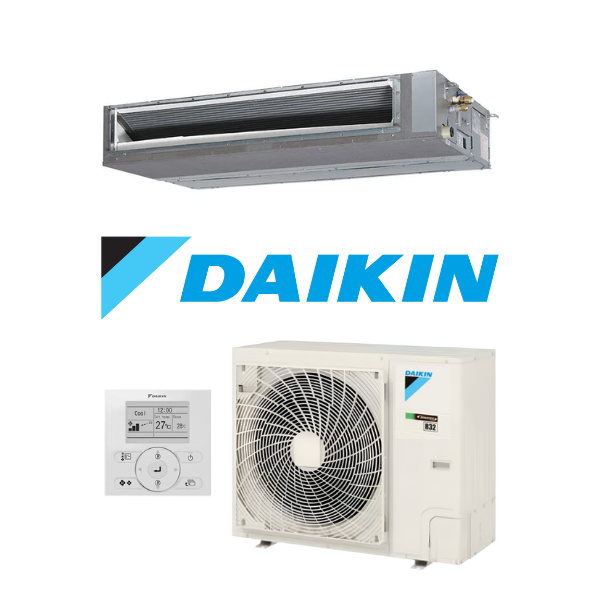

Daikin 3 Phase Premium Slim-Line Inverter FBA125B-VF2Y 1.25 kW
Tailored for installations where ceiling space is limited, our Slim-Line Ducted series offers exceptional adaptability and creative design possibilities. Whether you have restricted ceiling room or require an underfloor solution, this ducted system effectively addresses the demands of contemporary commercial spaces and medium-density apartment projects.
Key Features:
-
Automatic Airflow Adjustment
Enables automatic adjustment of fan speed to perfectly align with your duct design, ensuring optimal airflow distribution. -
R22 Retrofit Capability
Offers a cost-effective and hassle-free upgrade option for your current R22 ducted system, all while preserving the existing field piping. -
Design Flexibility
Equipped with a DC fan featuring a static pressure of 150Pa, and offering up to 85 meters of available pipe run (classified within the 100-140 Class range) to accommodate your design layout. -

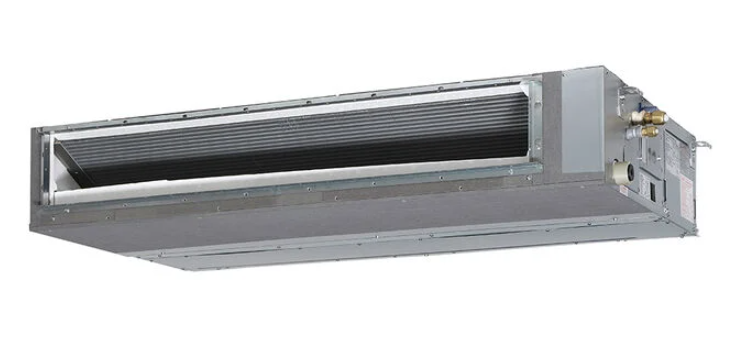

Slim-Line Indoor
The industry-leading low-profile design, standing at a height of 245mm, guarantees ample clearance in the narrowest of roof spaces. -
Built-in condensate pump
The DC condensate pump comes standard with an 850mm lift capability. -
Flexible Return Air
The choice between a rear or bottom suction return provides increased installation flexibility.
(FBA125B-VF2Y)
| Premium Inverter | Inverter | |||||
|---|---|---|---|---|---|---|
| System Names | FBA71B-VC2Y | FBA85B-VC2Y | FBA100B-VF2Y | FBA125B-VF2Y | FBA140B-VF2Y | FBA85B-CC2Y |
| Indoor Units | FBA71BVMA | FBA85BVMA | FBA100BVMA | FBA125BVMA | FBA140BVMA | FBA85BVMA |
| Rated Cooling Capacity (kw) | 7.1 | 8.5 | 10.0 | 12.5 | 14.0 | 8.5 |
| Rated Heating Capacity (kW) | 8.0 | 10.0 | 12.0 | 15.0 | 16.5 | 10.0 |
| Indoor Dimensions (H x W x D) (mm) | 245 x 1000 x 800 | 245 x 1400 x 800 | ||||

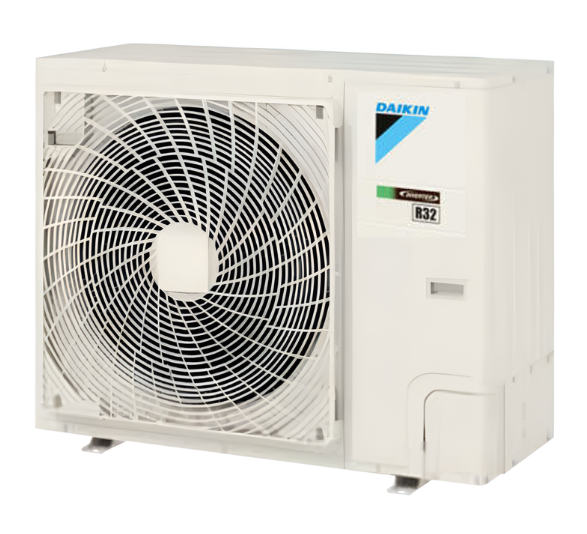

| Outdoor Dimensions (H x W x D) (mm) | 990 x 940 x 320 | 870 x 1100 x 460 | 990 x 940 x 320 | |||
| Indoor Weight (kg) | 37 | 47 | 47 | 47 | 47 | 47 |
| Outdoor Weight (kg) | 69 | 78 | 93 | 95 | 95 | 69 |
| SKU | FBA125B-VF2Y |
| Brand | Daikin |
| Shipping Weight | 142.0000kg |
Daikin offers a 5-year warranty for all of their Air conditioners and controllers.
