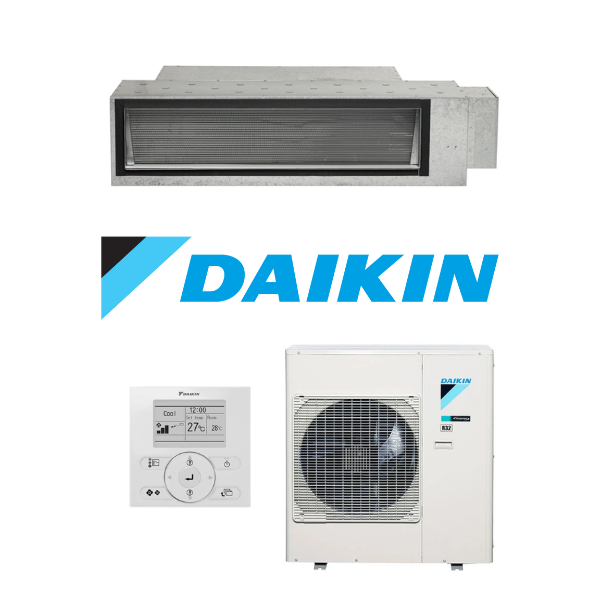

Daikin 10.0kW FDYAN100A-C2V Ducted Air Conditioning System
FDYAN100A-C2V Daikin Ducted
$3,767.26 Excl GST
.jpg)

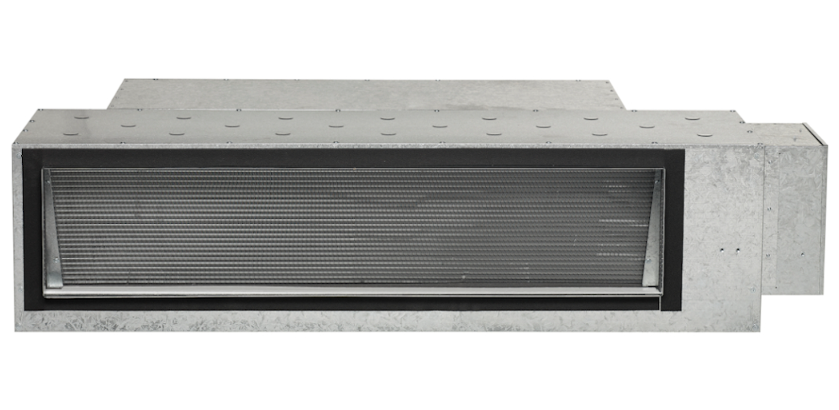

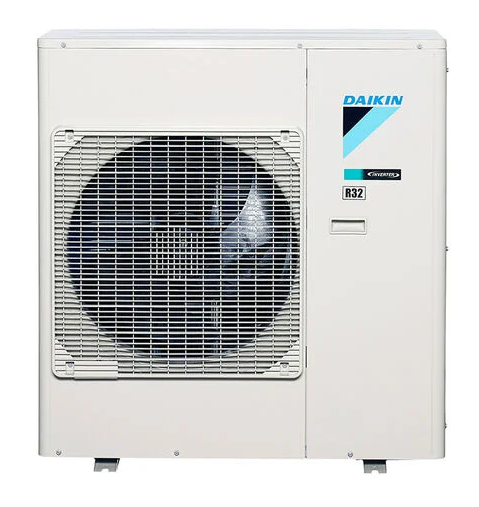

Daikin Ducted Inverter FDYAN100A-C2V 10.0 kW
Crafted to offer a space-efficient and high-performance design, Daikins Inverter series is an optimal choice for seamlessly integrating into the confined roof spaces of contemporary residences. Moreover, these models, ranging from 5.0kW to 15.5kW, now come equipped with R22 retrofit capability. This advancement ensures environmental compliance while enhancing the adaptability of the units.
Key Features:
-
Optimized for energy efficiency.
Attained through the utilization of a reengineered cross-pass heat exchanger, a DC fan motor, and enhanced refrigerant control technology.
-
Night Quite Mode.
Lowers outdoor noise levels during sleeping hours and seamlessly restores regular operations in the morning.
-
Demand Respone Enabled Ducted (DRED).
A Demand Response Enabled (DRED) air conditioner permits your electricity provider to regulate the system at different preset levels, effectively managing your power grid demand during peak periods.
-
R22 backwards compatibility.
Offers an economical and user-friendly enhancement option for an existing R22 ducted system, maintaining the field piping (excluding Heating Focus models).
-
Australian Made.
The indoor units are meticulously crafted and engineered to adhere to Australian standards, ensuring durability against the more demanding conditions of the summer climate.
(FDYAN100A-C2V)
| System Names | FDYAN50A-C2V | FDYAN60A-C2V | FDYAN71A-C2V | FDYAN85A-C2V | FDYAN100A-C2V | FDYAN125A-C2V | FDYAN140A-C2V | FDYAN160A-C2V |
|---|---|---|---|---|---|---|---|---|
| Indoor Units | FDYAN50AV1 | FDYAN60AV1 | FDYAN71AV1 | FDYAN85AV1 | FDYAN100AV1 | FDYAN125AV1 | FDYAN140AV1 | FDYAN160AV1 |
| Outdoor Units | RZA50C2V1 | RZA60C2V1 | RZA71C2V1 | RZA85C2V1 | RZA100C2V1 | RZA125C2V1 | RZA140C2V1 | RZA160C2V1 |
| Rated Cooling Capacity (kW) | 5.0 | 6.0 | 7.1 | 8.5 | 10.0 | 12.5 | 14.0 | 15.5 |
| Rated Heating Capacity (kW) | 6.0 | 7.0 | 7.5 | 10.0 | 12.5 | 15.0 | 16.5 | 18.0 |
| Indoor Dimensions (H x W x D) (mm) | 300 x 1210 x 900 | 360 x 1520 x 935 | ||||||
| Outdoor Dimension (H x W x D) (mm) | 595 x 845 x 300 | 990 x 940 x 320 | 1430 x 940 x 320 | |||||
| Indoor Weight (kg) | 37 | 37 | 40 | 40 | 45 | 55 | 55 | 56 |
| Outdoor Weight (kg) | 45 | 45 | 45 | 69 | 69 | 78 | 93 | 99 |
| SKU | FDYAN100A-C2V |
| Brand | Daikin |
| Shipping Weight | 120.0000kg |
Daikin offers a 5-year warranty for all of their Air conditioners and controllers.
