Daikin 12.5kW FDYAN125A-CV 1 Phase Ducted Air Conditioning Unit

Calculate Shipping

Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm.

Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Sydney Warehouse. Mon - Fri 8am - 4pm.

Dear Customers, our online sales will close on 23rd December 2024 at 3:00 PM and will recommence on 2nd January 2025 at 8:00 AM.

This product has been superseded by Daikin FDYAN125A-C2V

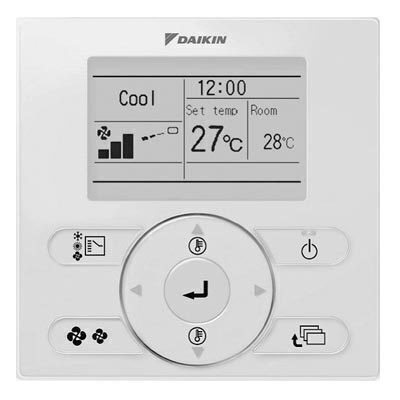

Daikin FDYAN125 12.5kW 1 Phase Ducted Unit - Includes BRC1E63 Wired Controller

Daikin Ducted Systems provide discreet air conditioned comfort. It can be installed in a new home or tailored to suit an existing one, and once installed, only the controller, the return air and discharge grilles are visible inside your home.

Engineered to deliver a compact and efficient design, the new Standard Inverter series is ideal for installation into the tight roof space of any modern home.

Features:

Heating or cooling your entire home
Small to large houses
Houses with limited roof space and outdoor space

Upgrade to iZONE Smart Home - WiFi Ducted Zone Controller

Your smart home automation system begins here. Air Conditioning, LED Lighting, Garage Door, Security, Garden Sprinkler System.....the list goes on.

Start with one now....add more later!!

Alternative option to MyAir, MyLights, C-BUS, Fibaro, Control4, Atmos, Nero, Clipsal Iconic smart home automation product suppliers.

(FDYAN125A-CV)

System names		FDYAN50A-CV	FDYAN60A-CV	FDYAN71A-CV	FDYAN85A-CV	FDYAN100A-CV	FDYAN125A-CV	FDYAN140A-CV	FDYAN160A-CV

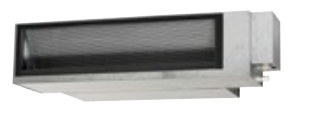

Indoor Units		FDYAN50AV1	FDYAN60AV1	FDYAN71AV1	FDYAN85AV1	FDYAN100AV1	FDYAN125AV1	FDYAN140AV1	FDYAN160AV1

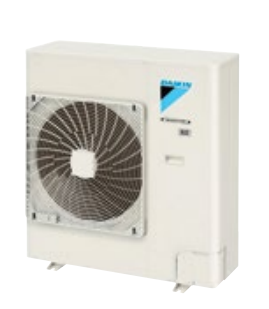

Outdoor Units		RZA50CV1	RZA60CV1	RZA71CV1	RZA85CV1	RZA100CV1	RZA125CV1	RZA140CV1	RZA160CV1
Rated Capacity	Cooling (kW)	5.0	6.0	7.1	8.5	10.0	12.5	14.0	15.5
Rated Capacity	Heating (kW)	6.0	7.0	7.5	10.0	12.5	15.0	16.5	18.0
Energy Efficiency Ratio (EER)	Cooling / Heating	3.70 / 3.70	3.37 / 3.59	3.23 / 3.89	3.36 / 3.57	3.23 / 3.73	3.17 / 3.75	3.26 / 3.67	3.13 / 3.67
Dimension (H x W x D)	Indoor (mm)	300 x 1210 x 900					360 x 1520 x935
Dimension (H x W x D)	Outdoor (mm)	595 x 845 x 300			990 x 940 x 320			1430 x 940 x 320
Weight	Indoor (kg)	37	37	40	40	45	55	55	56
Weight	Outdoor (kg)	45	45	45	69	69	78	93	99
Piping Length	(m)	50
Pipe Sizes	liquid (mm)	6.4 (Flare)		9.5 (Flare)
	Gas (mm)	12.7 (Flare)		15.9 (Flare)
	Drain (mm)	ID 25 / OD 32
Supply Air Opening	(H x W, Flange) (mm)	185 x 852						245 x 1152
Return Air Opening	(mm)	1 x 400 (Oval)				2 x 350 (Oval)	2 x 400 (Oval)
Power Supply	V/Hz	1 Phase, 220-240V, 50Hz
Refrigerant		R32
