Fujitsu 10.5kW SET-ARTG36LHTB 3 Phase Ducted Air Conditioning System
ARTG36LHTB / AOTG36LATT Fujitsu Ducted
$4,100.91 Excl GST
.jpg)

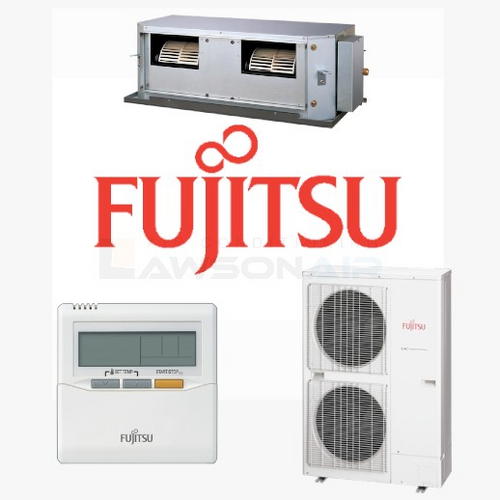

Fujitsu 10.5 kW ARTG36LHTB Three Phase Ducted System - Includes Outdoor Unit AOTG36LATT
Ducted air conditioning with Zone Control capabilities allows for different zones (areas) to be set up in your home. The system adjusts airflow through dampers to control the air conditioning of the zones to reach the desired temperature.
Features:
- Optional zone control allowing for 8 zones to be connected, giving greater temperature control to meet individual needs.
- With built in features such as DC fan motors, DC rotary compressors, and built in programmable timers, these systems use less power than ever before.
- Fujitsu General offers a full five year parts and labour warranty on its entire range, so you can rest assured that your air conditioner will perform.
(SET-ARTG36LHTB)

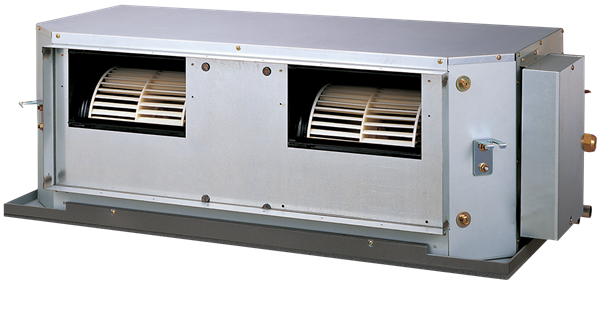

| Indoor Unit | ARTG36LHTB | |||

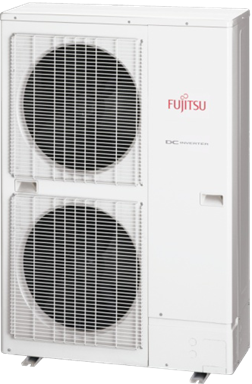

| Outdoor Unit | AOTG36LATT | |||
| Operation Type | Reverse Cycle | |||
| Power Source | V/Ph/HZ | 415 / 3 / 50 | ||
| Cooling | Heating | |||
| Capacity | kW | 10.5 (5.0 - 11.4) | 12.1 (5.1 - 14.0) | |
| Input Power | kW | 3.18 (Max 5.63) | 3.30 (Max 5.63) | |
| EER/COP | kW/kW | 3.30 | 3.67 | |
| Star Rating | - | - | ||
| Running Current | Cooling/Heating | Amps | 4.6 / 4.8 | |
| Moisture Removal | L/Hr | 1.5 | ||
| Noise Level | Indoor Sound Pressure (High/Quiet) | dBA | 41 | |
| Outdoor Sound Pressure | dBA | 51 | ||
| Outdoor Sound Power | dBA | 67 | ||
| Air Circulation (Indoor - High Fan) | I/sec | 695 | ||
| Net DimensionsiHxWxD | Indoor Unit | mm | 400 x 1050 x 500 | |
| kgs | 39 | |||
| Outdoor Unit | mm | 1290 x 900 x 330 | ||
| kgs | 104 | |||
| Piping Connections (Liquid/Suction) | mm | Ø 9.52 / Ø 15.88 | ||
| Max. Pipe Length (Precharged Length) | m | 75 / 30 | ||
| Max height Difference | m | 30 | ||
| Operation Range | °CDB | Cooling: -15 to 46, Heating: -15 to 24 | ||
| Refrigerant | R410A | |||
| SKU | SET-ARTG36LHTB |
| Brand | Fujitsu |
| Shipping Weight | 143.0000kg |
