Fujitsu 11.5kW SET-ABTA45LAT Split Air Conditioning System
ABTA45LBT / AOTA45LCTL Fujitsu Split
$4,450.91 Excl GST
Dear Customers, our online sales will close on 23rd December 2024 at 3:00 PM and will recommence on 2nd January 2025 at 8:00 AM.
.jpg)

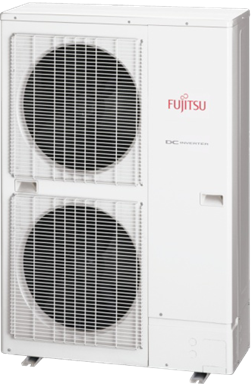

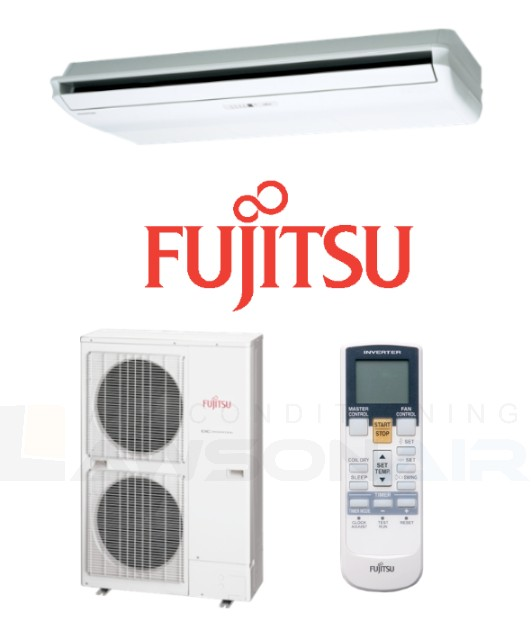

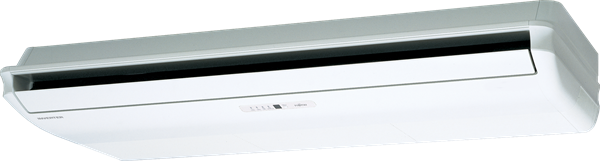

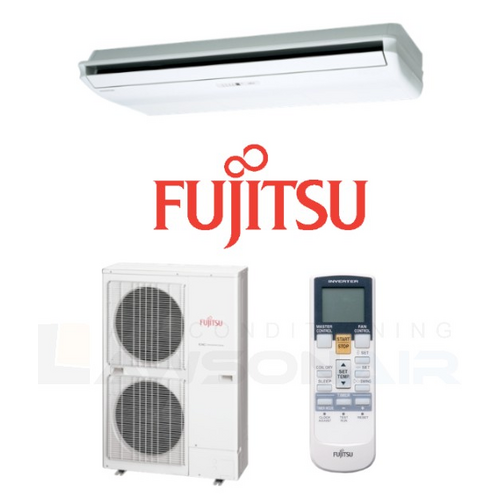

Fujitsu ABTA45LAT 11.5 kW Under Ceiling Split System - Includes Outdoor Unit AOTA45LCTL
With slim design, these models are designed for ceiling installation, ideal for commercial applications.
Features:
- Up/Down Swing Louvre
- Automatic Air Flow Adjustment
- Sleep Timer
- Economy Mode
(SET-ABTA45LAT)
| Indoor Unit | ABTA45LBT | |||
| Outdoor Unit | AOTA45LCTL | |||
| Operation Type | Reverse Cycle | |||
| Power Source | V/Ph/HZ | 230 / 1 / 50 | ||
| Cooling | Heating | |||
| Capacity | kW | 11.5 (4.0 - 13.3) | 14.0 (4.2 - 15.5) | |
| Input Power | kW | 3.56 (Max 4.90) | 4.11 (Max 4.90) | |
| EER/COP | kW/kW | 3.23 | 3.41 | |
| Star Rating | - | - | ||
| Running Current | Cooling/Heating | Amps | 14.9 / 17.2 | |
| Moisture Removal | L/Hr | 4.0 | ||
| Noise Level | Indoor Sound Pressure (High/Quiet) | dBA | 49 | |
| Outdoor Sound Pressure | dBA | 55 | ||
| Outdoor Sound Power | dBA | 69 | ||
| Air Circulation (Indoor - High Fan) | I/sec | 583 | ||
| Net DimensionsiHxWxD | Indoor Unit | mm | 240 x 1660 x 700 | |
| kgs | 46 | |||
| Outdoor Unit | mm | 1290 x 900 x 330 | ||
| kgs | 86 | |||
| Piping Connections (Liquid/Suction) | mm | Ø 9.52 / Ø 15.88 | ||
| Max. Pipe Length (Precharged Length) | m | 50 (20) | ||
| Max height Difference | m | 30 | ||
| Operation Range | °CDB | Cooling: -15 to 46, Heating: -15 to 24 | ||
| Refrigerant | R410A | |||
| SKU | SET-ABTA45LAT |
| Brand | Fujitsu |
| Shipping Weight | 77.0000kg |
