Fujitsu 13.8kW SET-ABTG54LRTA 3 Phase Split Air Conditioning System
ABTG54LRTA / AOTG54LATT Fujitsu Split
$5,113.64 Excl GST
.jpg)

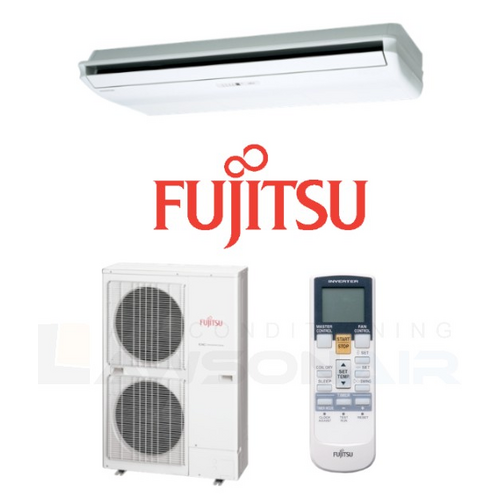

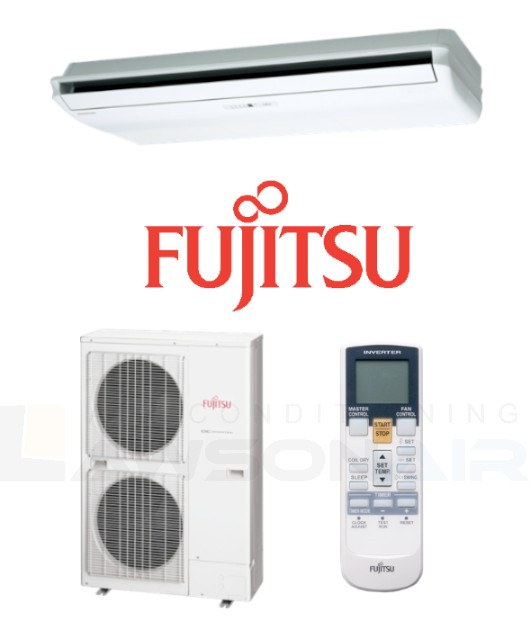

Fujitsu ABTG54LRTA 13.8 kW Under Ceiling Three Phase Split System - Includes Outdoor Unit AOTG54LATT
With slim design, these models are designed for ceiling installation, ideal for commercial applications.
Features:
- Up/Down Swing Louvre
- Automatic Air Flow Adjustment
- Sleep Timer
- Program Timer
(SET-ABTG54LRTA)

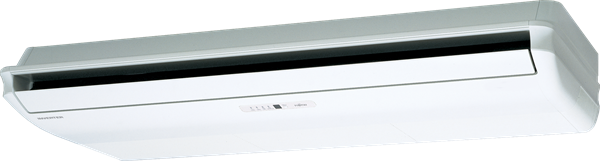

| Indoor Unit | ABTG54LRTA | |||

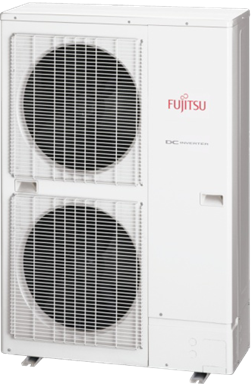

| Outdoor Unit | AOTG54LATT | |||
| Operation Type | Reverse Cycle | |||
| Power Source | V/Ph/HZ | 240 / 1 / 50 | ||
| Cooling | Heating | |||
| Capacity | kW | 13.8 (5.4 - 16.0) | 16.0 (5.8 - 18.0) | |
| Input Power | kW | 4.34 (Max 6.72) | 4.67 (Max 6.72) | |
| EER/COP | kW/kW | 3.18 | 3.43 | |
| Star Rating | - | - | ||
| Running Current | Cooling/Heating | Amps | 6.2 / 6.6 | |
| Moisture Removal | L/Hr | 5.0 | ||
| Noise Level | Indoor Sound Pressure (High/Quiet) | dBA | 51 | |
| Outdoor Sound Pressure | dBA | 55 | ||
| Outdoor Sound Power | dBA | 70 | ||
| Air Circulation (Indoor - High Fan) | I/sec | 639 | ||
| Net DimensionsiHxWxD | Indoor Unit | mm | 240 x 1660 x 700 | |
| kgs | 48 | |||
| Outdoor Unit | mm | 1290 x 900 x 330 | ||
| kgs | 104 | |||
| Piping Connections (Liquid/Suction) | mm | Ø 9.52 / Ø 15.88 | ||
| Max. Pipe Length (Precharged Length) | m | 75 (30) | ||
| Max height Difference | m | 30 | ||
| Operation Range | °CDB | Cooling: -15 to 46, Heating: -15 to 24 | ||
| Refrigerant | R410A | |||
| SKU | SET-ABTG54LRTA |
| Brand | Fujitsu |
| Shipping Weight | 152.0000kg |
