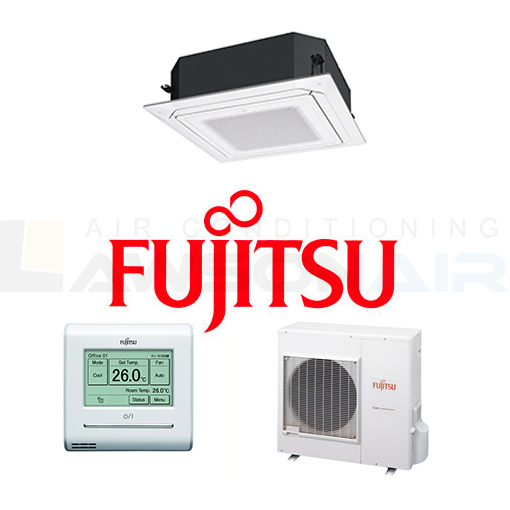

Fujitsu 10.0kW SET-AUTG36KRLA 4-Way Cassette Air Conditioning System
AUTG36KRLA / AOTG36KBTA Fujitsu Cassette
$4,197.27 Excl GST
.jpg)

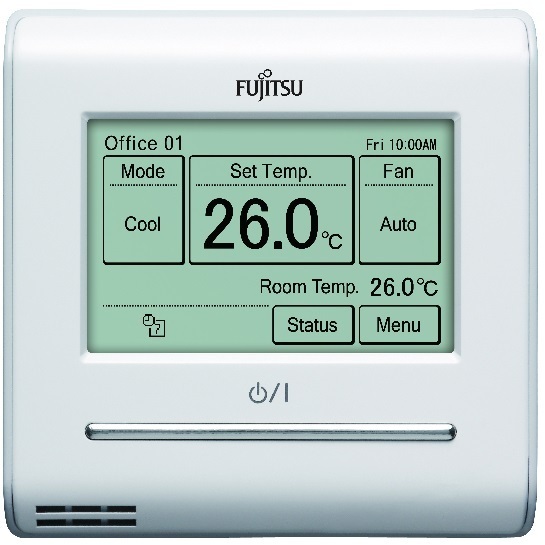

Fujitsu AUTG36KRLA 10.0kW 4-way Cassette - Includes Wired Controller & Outdoor Unit AOTG36KBTA
(SET-AUTG36KRLA)

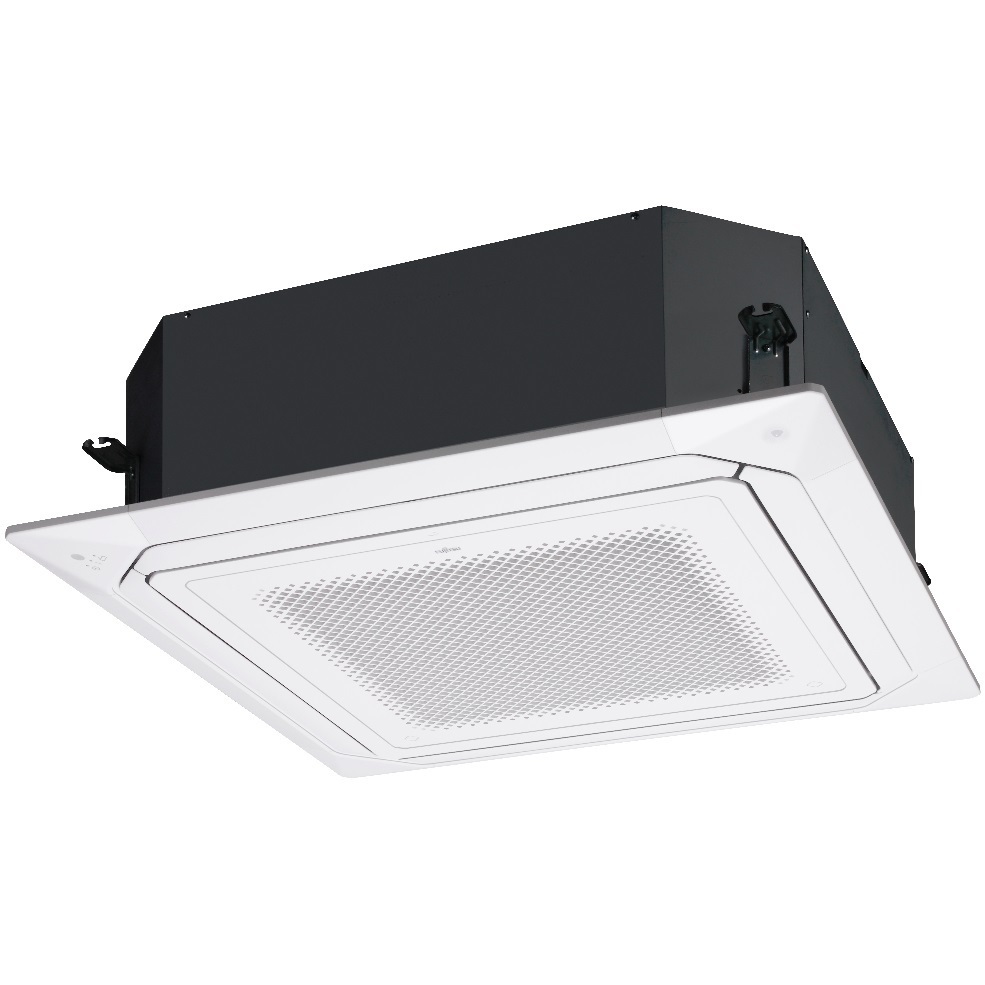

| Indoor | AUTG36KRLA | ||

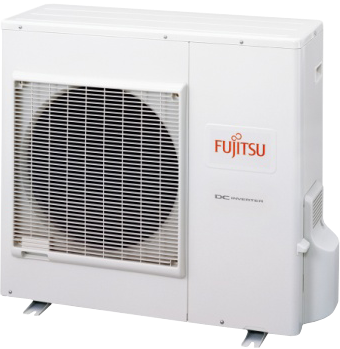

| Outdoor | AOTG36KBTA | ||
| Power Source | V / ø / Hz | 240 / 1 / 50 | |
| Capacity | Cooling - Rated (min - Max) | kW | 10.00 (2.8 - 11.2) |
| Heating - Rated (min - Max) | kW | 11.20 (2.70 - 12.70) | |
| Input | Cooling - Rated / Max | kW | 2.67 / 4.43 |
| Heating - Rated / Max | kW | 2.95 / 4.43 | |
| Efficiency Ratings | Cooling | EER | 3.75 |
| AEER | 3.69 | ||
| Heating | COP | 4.52 | |
| ACOP | 4.47 | ||
| Star Rating | Cooling | 2.5 | |
| Heating | 4.0 | ||
| Running Current | Cooling - Rated / Max | Amps | 11.2 / 19.5 |
| Heating - Rated / Max | Amps | 10.4 / 19.5 | |
| Moisture Removal | l / h | 3.5 | |
| Indoor Noise - High | Sound Pressure | dBA | 43 |
| Outdoor Noise - High | Sound Pressure | dBA | 51 |
| Outdoor Noise - High | Sound Power | dBA | 67 |
| Airflow - High (Cool) | Indoor / Outdoor | L / sec | 500 / 1139 |
| Net Weight and Dimensions - H x W x D | Indoor | mm | 288 x 840 x 840 |
| kg | 30 | ||
| Grille | mm | 53 x 950 x 950 | |
| kg | 6 | ||
| Outdoor Unit | mm | 914 x 970 x 370 | |
| kg | 75 | ||
| Pipe Size | Liquid / Suction | mm | ø9.52 / ø15.88 |
| Max Pipe Length (Pre-Charged Length) | m | 75 / 30 | |
| Max Pipe Height | m | 30 | |
| Operation Range | Cooling | °CDB | -15 to 46 |
| Heating | °CDB | -20 to 24 | |
| Refrigerant | R32 | ||
| Grille | UTG-UKTA-W | ||
| SKU | SET-AUTG36KRLA |
| Brand | Fujitsu |
| Shipping Weight | 111.0000kg |
