Fujitsu Lifestyle SET-ASTH34KMTD 9.5kW Wall Split Air Conditioning System
ASTH34KMTD / AOTH34KMTD Fujitsu Wall Split R32
$2,793.64 Excl GST
.jpg)

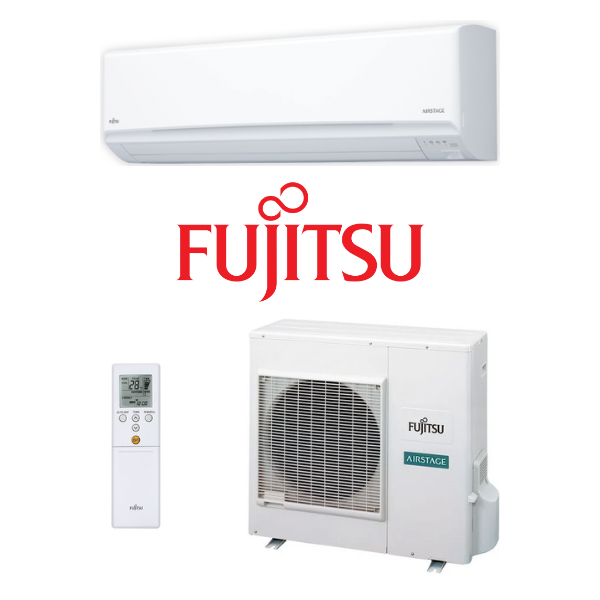

Fujitsu Lifestyle SET-ASTH34KMTD 9.5kW Reverse Cycle Split System (Optional Wi-Fi Adaptor) - Includes Outdoor Unit and Wireless Controller
Ideal for large rooms. With energy management features such as Human Sensor Control, economy mode, and weekly timers, the Lifestyle range makes indoor comfort easy and cost-effective. Energy-efficient, wall mounted split system units in cooling only and reverse cycle. A stylish design, along with efficient features like Human Sensor Control and Economy mode have been combined in the Lifestyle wall mounted split system air conditioning range to offer user flexibility and total control around the comfort of their home.
Features:
- 7 Models from 2.5kW to 9.5kW
- Compact and Modern Aesthetic
- Award-Winning design
- R32 refrigerant
- Cooling operation range up to 50C ambient temperature
- Includes Wireless Remote Controller
(SET-ASTH34KMTD)
| System Names | SET-ASTG09KMTC | SET-ASTG12KMTC | SET-ASTH18KMTD | SET-ASTH22KMTD | SET-ASTH24KMTD | SET-ASTH30KMTD | SET-ASTH34KMTD |
|---|---|---|---|---|---|---|---|

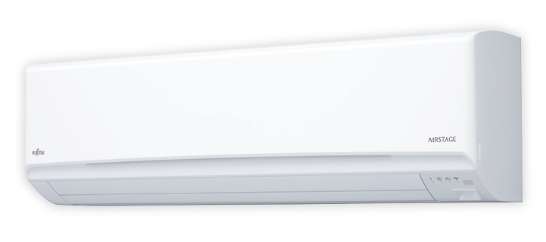

| Indoor Units | ASTG09KMTC | ASTG12KMTC | ASTH18KMTD | ASTH22KMTD | ASTH24KMTD | ASTH30KMTD | ASTH34KMTD |

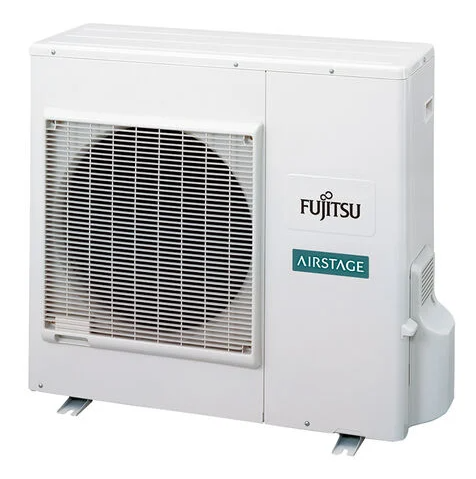

| Outdoor Units | AOTG09KMTC | AOTG12KMTC | AOTH18KMTD | AOTH22KMTD | AOTH24KMTD | AOTH30KMTD | AOTH34KMTD |
| Power Source (V/Ph/Hz) | 220-240 / 1 / 50 | ||||||
| Rated Cooling Capacity (kW) | 2.5 | 3.5 | 5.0 | 6.0 | 7.1 | 8.5 | 9.5 |
| Rated Heating Capacity (kW) | 3.2 | 3.7 | 6.0 | 7.2 | 8.0 | 9.0 | 10.3 |
| EER / COP | 4.71 / 4.84 | 3.93 / 4.68 | 4.31 / 4.69 | 3.80 / 4.24 | 3.41 / 4.19 | 3.41 / 3.77 | 3.49 / 3.39 |
| Outdoor Sound Power (dBA) | 55 | 59 | 59 | 61 | 66 | 65 | 70 |
| Indoor dimensions (H x W x D) (mm) | 270 x 834 x 222 | 280 x 980 x 240 | 340 x 1150 x 280 | ||||
| Outdoor dimension (H x W x D) (mm) | 542 x 799 x 290 | 716 x 820 x 315 | 788 x 940 x 320 | 998 x 940 x 320 | |||
| Indoor Weight (kg) | 10 | 12.5 | 16.5 | ||||
| Outdoor Weight (kg) | 32 | 41 | 53 | 62 | |||
| Pipe Sizes (Liquid/Gas) (mm) | 6.35 / 9.52 | 6.35 / 12.7 | 9.52 / 15.88 | ||||
| Pipe Length (m) (Max / Precharged) | 20 (15) | 30 (15) | 50 (20) | 50 (25) | |||
| Max Height Difference (m) | 15 | 25 | 30 | ||||
| Operation Range Cooling (Min to Max CDB) | -10 to 46 | -10 to 50 | |||||
| Operation Range Heating (Min to Max CDB) | -15 to 24 | ||||||
| Refrigerant Type/Amount (g) | R32 / 850 | R32 / 1270 | R32 / 1700 | R32 / 2300 | |||
| SKU | SET-ASTH34KMTD |
| Brand | Fujitsu |
| Shipping Weight | 78.5000kg |
| Shipping Cubic | 0.409678000m3 |
| Unit Of Measure | ea |
