Fujitsu SET-ARTH09KLLAP 2.5kW Ducted Bulkhead 1 Phase Air Conditioning System
ARTH09KLLAP/AOTH09KBTA Fujitsu Bulkhead Ducted
$1,502.73 Excl GST
Dear Customers, our online sales will close on 23rd December 2024 at 8:00 AM and will recommence on 2nd January 2025 at 8:00 AM.
.jpg)

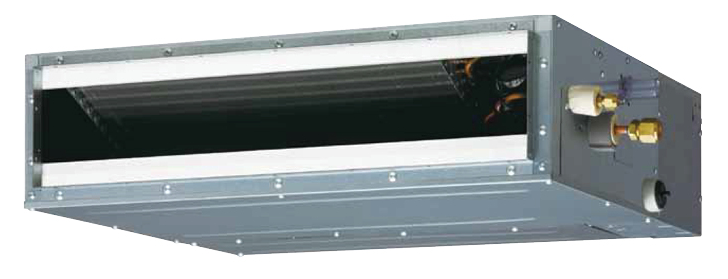

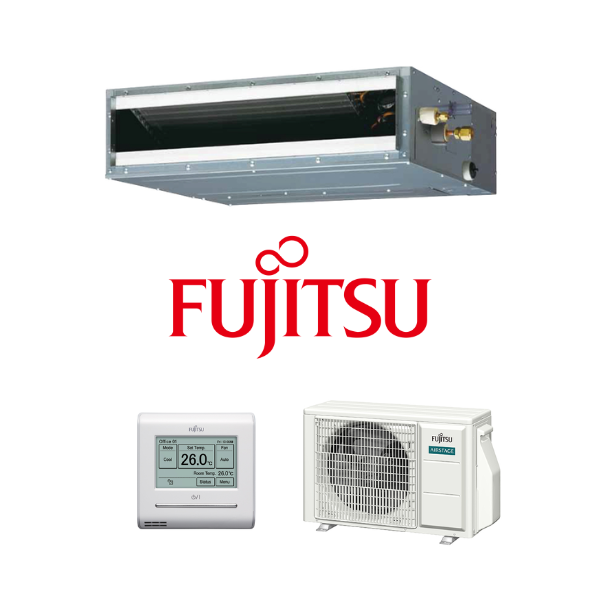

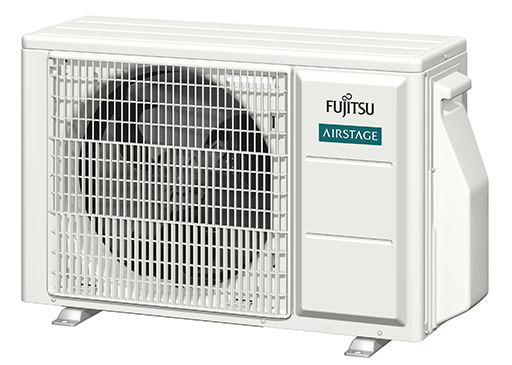

Fujitsu SET-ARTH09KLLAP 2.5 kW 1 Phase Bulkhead Ducted System - Includes AOTH09KBTA Outdoor Unit
Fujitsu bulkhead ducted air conditioner features a compact design to allow for flexible installation in the best available space. This model is quiet, easy to maintain and energy efficient using R32 refrigerant, which has a 67 per cent lower ‘Global Warming Potential Factor’ whilst still maintaining the performance of the air conditioner.
Features:
- All DC
- Auto Restart
- Auto Changeover
- Blue Fin Heat Exchanger
- Connectable Distributing Duct
- Economy Mode

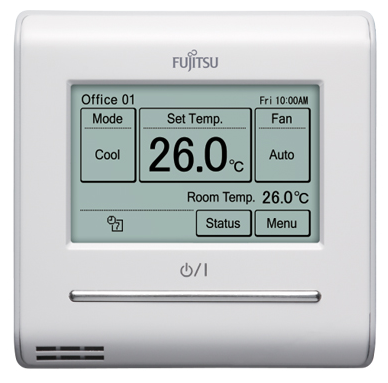

- Wired Remote Controller Included
(SET-ARTH09KLLAP)
| System Names | SET-ARTH09KLLAP | SET-ARTH12KLLAP | SET-ARTH18KLLAP |
|---|---|---|---|
| Indoor Units | ARTH09KLLAP | ARTH12KLLAP | ARTH18KLLAP |
| Outdoor Units | AOTH09KBTA | AOTH12KBTA | AOTH18KBTA |
| Power Source (V/Ph/Hz) | 230 / 1 / 50 | ||
| Rated Cooling Capacity (kW) | 2.5 | 3.5 | 5.0 |
| Rated Heating Capacity (kW) | 3.2 | 4.0 | 6.0 |
| EER / COP | 4.1 / 4.16 | 3.76 / 3.81 | 3.62 / 3.75 |
| Outdoor Sound Power (dBA) | 59 | 61 | 62 |
| Indoor dimensions (H x W x D) (mm) | 198 x 700 x 620 | 198 x 900 x 620 | |
| Outdoor dimension (H x W x D) (mm) | 542 x 799 x 290 | 632 x 799 x 290 | |
| Indoor Weight (kg) | 17 | 20 | |
| Outdoor Weight (kg) | 32 | 36 | |
| Pipe Sizes (Liquid/Gas) (mm) | 6.35 / 9.52 | 6.35 / 12.7 | |
| Pipe Length (m) (Max / Precharged) | 20 (15) | 30 (20) | |
| Max Height Difference (m) | 15 | 20 | |
| Operation Range Cooling (Min to Max CDB) | -10 to 46 | ||
| Operation Range Heating (Min to Max CDB) | -15 to 24 | ||
| Refrigerant Type/Amount (g) | R32 / 850 | R32 / 1020 | |
| SKU | SET-ARTH09KLLAP |
| Brand | Fujitsu |
| Shipping Weight | 49.0000kg |
| Unit Of Measure | ea |
