Fujitsu 7.1kW SET-ASTG24KMCB Split Wifi Air Conditioning System
SET-ASTG24KMCB Fujitsu Split R32
$1,817.27 Excl GST

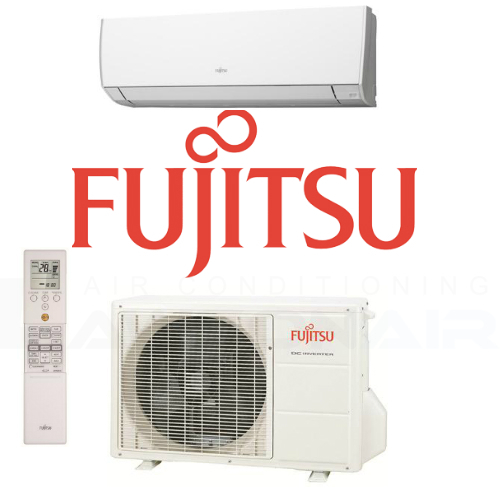

Fujitsu 7.1 kW SET-ASTG24KMCB Reverse Cycle Split System (WiFi) with R32 Gas
Fujitsu General’s KM and CM series have a stylish design across the range, to blend in seamlessly with your home’s decor. The KM and CM series are the most energy efficient air conditioners Fujitsu have designed. Some models up to a 5 star energy rating.
Features:

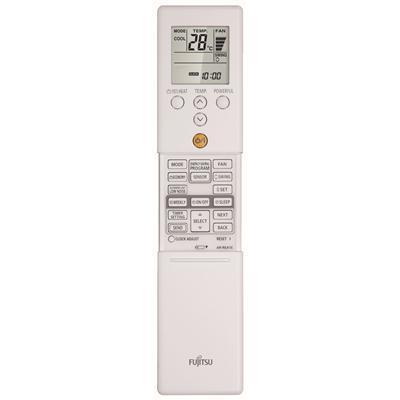

- The KM and CM ranges are accompanied by a simple and easy to use controller, giving you simple control of your climate, right at your fingertips. With features such as low noise mode, economy operation and program timers, you can tailor your comfort needs at the touch of a button.
- The KM and CM series are amongst the most energy efficient air conditioners Fujitsu has designed. With built-in features such as high efficiency DC componentry, Power Diffusers, and High Density Multi-path Heat Exchangers, these air conditioners use less power than ever before.
- All models in the KM and CM series contain human sensor control, an intelligent feature which detects movement of people to deliver optimum efficiency and temperature control.
- By using our built-in WLAN adaptor and FGLair app, you can control the temperature of your home anytime and anywhere. One mobile device can control up to 24 indoor units remotely. Multiple devices can also be used to control a single unit.
(SET-ASTG24KMCB)

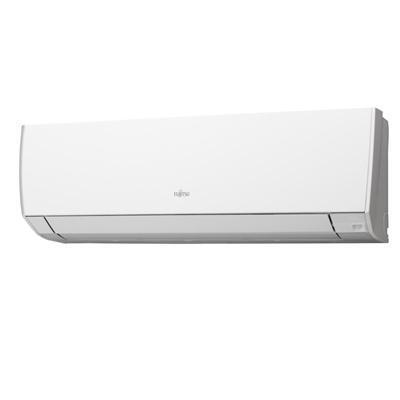

Indoor Unit | ASTG24KMCB | |||

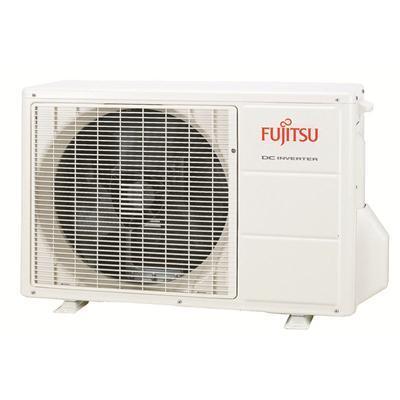

Outdoor Unit | AOTG24KMCB | |||
Operation Type | Reverse Cycle | |||
Power Source | V/Ph/HZ | 240 / 1 / 50 | ||
Cooling | Heating | |||
Capacity | kW | 7.1 (1.1 - 8.3) | 8.0 (1.1 - 10.6) | |
Input Power | kW | 2.01 (0.21 - 2.9) | 2.12 (0.2 - 3.68) | |
EER/COP | kW/kW | 3.53 | 3.77 | |
Star Rating | 2.5 | 3 | ||
Running Current | Cooling/Heating | Amps | 8.5 / 9 | |
Moisture Removal | L/Hr | 2.7 | ||
Noise Level | Indoor Sound Pressure (High/Quiet) | dBA | 49 / 32 | |
Outdoor Sound Pressure | dBA | 52 | ||
Outdoor Sound Power | dBA | 70 | ||
Air Circulation (Indoor - High Fan) | I/sec | 311 | ||
Net DimensionsiHxWxD | Indoor Unit | mm | 295 x 940 x 270 | |
kgs | 14 | |||
Outdoor Unit | mm | 620 x 790 x 290 | ||
kgs | 40 | |||
Piping Connections (Liquid/Suction) | mm | Ø 6.35 / Ø 12.7 | ||
Max. Pipe Length (Precharged Length) | m | 30 (20) | ||
Max height Difference | m | 20 | ||
Operation Range | °CDB | Cooling: -10 to 46, Heating: -15 to 24 | ||
Refrigerant | R32 |
SKU | SET-ASTG24KMCB |
Brand | Fujitsu |
Shipping Weight | 54.0000kg |
