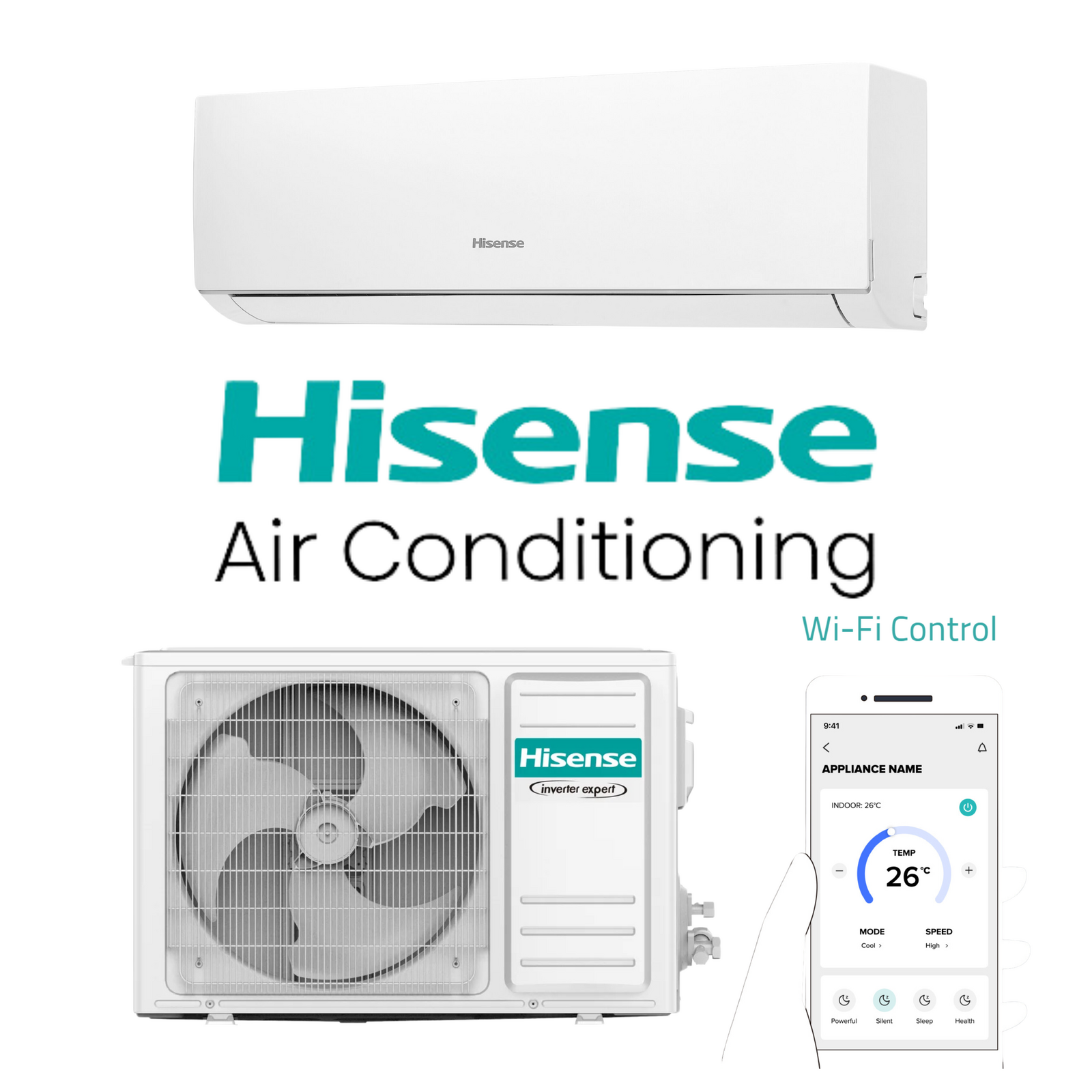

Hisense J-Series HAWJ9KR-SET 2.5kW Wall Split Wifi Air Conditioning System

Calculate Shipping

Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm.

Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Sydney Warehouse. Mon - Fri 8am - 4pm.

Hisense 2.5KW J Series Reverse Cycle Split System With Wi-Fi Control

Easy Installation – Equipped with a supporting bar and frame, that allows for seamless installation.
Eco-friendly R32 Refrigerant – Ultra-low energy consumption, effective power saving, non-toxic and environmentally friendly.
Voice Control – When the air conditioner is connected to Wi-Fi, you can operate it using voice control through Google Home or Amazon Alexa. This allows you to use verbal commands to set modes, adjust temperatures and more.

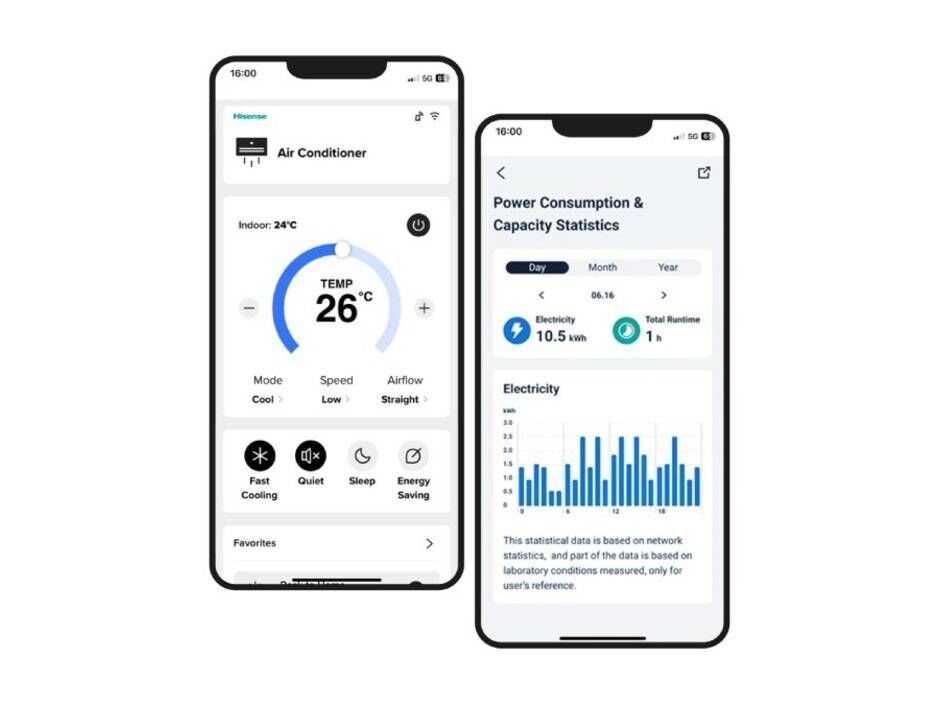

Wi-Fi Control – Remotely control the air conditioner through the mobile phone APP and a Wi-Fi connection.

(HAWJ9KR-SET)

System Names	HAWJ9KR-SET	HAWJ12KR-SET	HAWJ18KR-SET	HAWJ24KR-SET	HAWJ28KR-SET

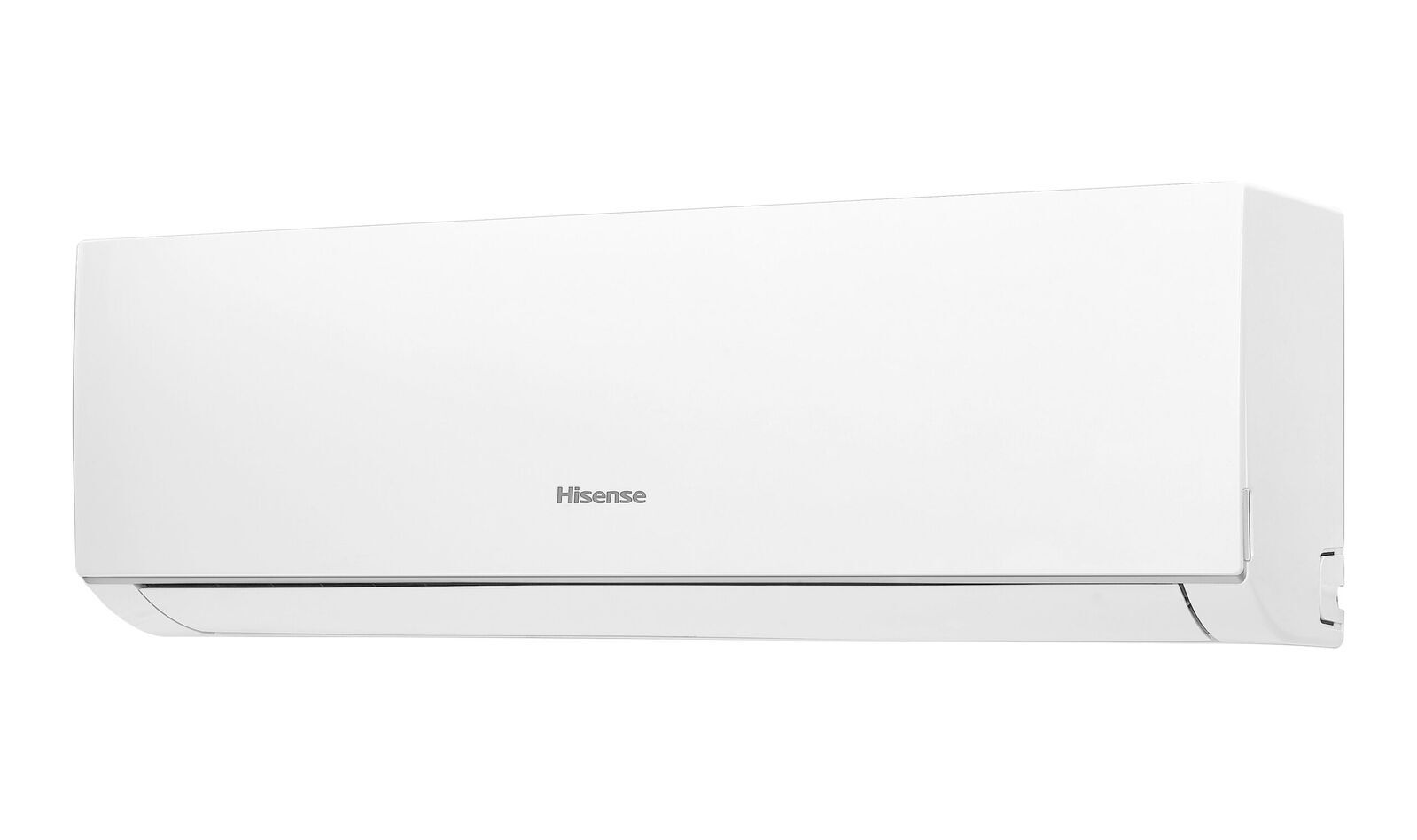

Indoor Units	HAWJ9KR-I	HAWJ12KR-I	HAWJ18KR-I	HAWJ24KRP-I	HAWJ28KR-I

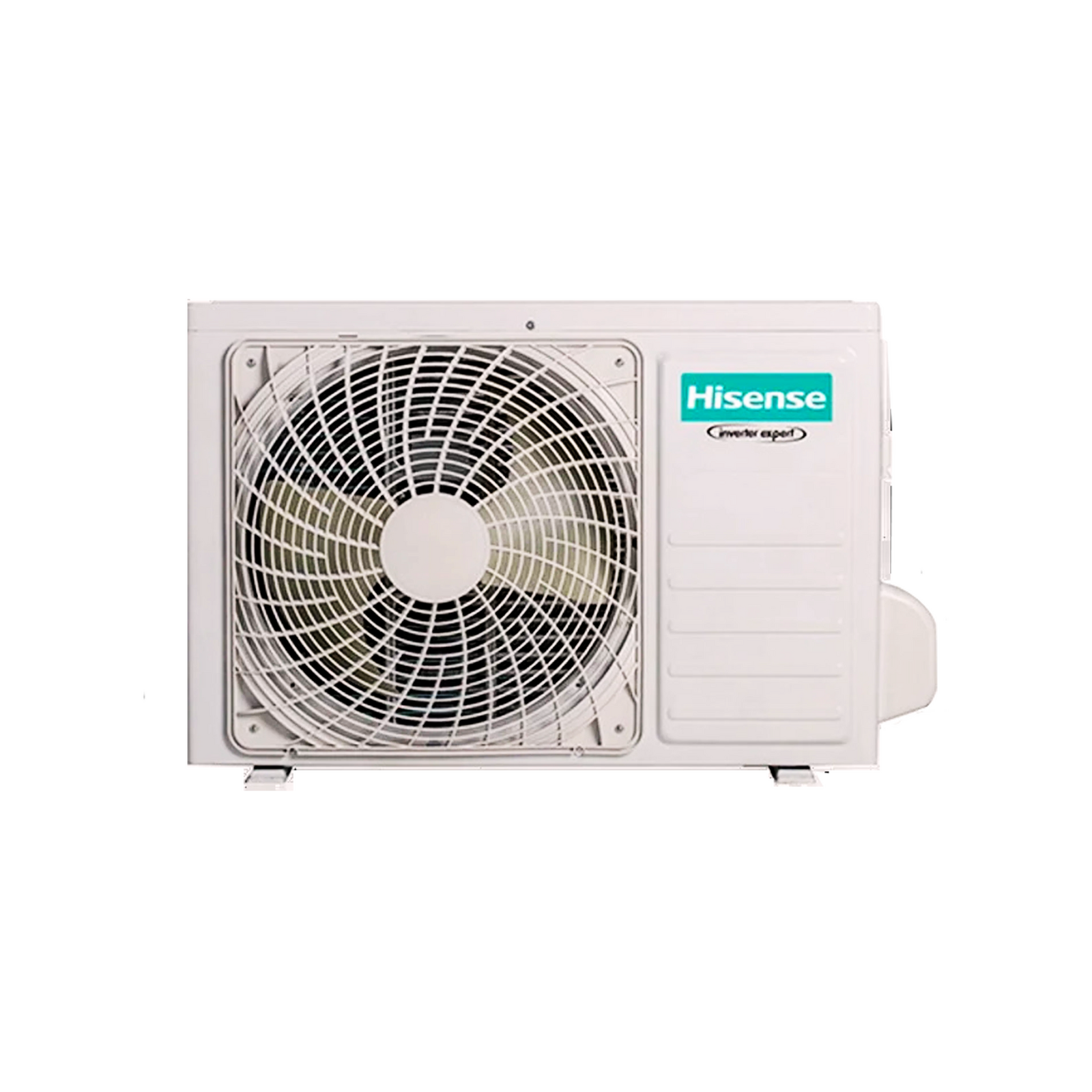

Outdoor Units	HAWJ9KR-O	HAWJ12KR-O	HAWJ18KR-O	HAWJ24KRP-O	HAWJ28KR-O
Rated Cooling Capacity (kW)	2.5	3.5	5.3	7.1	8.0
Rated Heating Capacity (kW)	3.1	3.8	5.4	7.2	8.0
Rated Input Cool/Heat (W)	620 / 690	900 / 890	1590 / 1450	2150 / 2100	2460 / 2460
Moisture Removal (L/H.r)	0.9		2.0	2.5
Airflow Distance (m)	10		13	14
EER/COP (W/W)	4.03 / 4.49	3.89 / 4.27	3.33 / 3.72	3.30 / 3.43	3.25 / 3.25
Outdoor Temperature Range Cool/Heat (C)	-15 to 46 / -15 to 24
Refrigerant Type/kg	R32 / 0.7	R32 / 0.8	R32 / 1.15	R32 / 1.4	R32 / 1.58
Indoor Unit Noise Level (H/L/Fan Only) (dBA)	39 / 25 / 19	41 / 25 / 19	44 / 32 / 19	48 / 35 / 19	47 / 32 / 19
Outdoor Unit Noise Level (dBA)	60	61	65		68
Power Supply	1 Phase, 50Hz, 220-240V
Rated Current (Cool/Heat) (A)	2.8 / 3.1	4.1 / 4.1	7.2 / 6.5	9.6 / 9.4	11 / 11
Expansion Device	Capillary			EEV (Electronic Expansion Valve)
Evaporator	Copper Tube and Aluminium Finish
Condenser	Copper Tube and Aluminium Finish
Pipe Sizes (Liquid/Gas) (mm)	1/4 + 3/8		1/4 + 1/2		3/8 + 5/8
Max Vertical Height Diff between ODU IDU	20/10	25/10	30/20		40/20
Pre-Charged Length (m)	10				5
Indoor Net Dimensions (HxWxD) (mm)	270 x 815 x 212		315 x 915 x 235	315 x 1085 x 235
Outdoor Net Dimensions (HxWxD) (mm)	540 x 780 x 260		585 x 810 x 280	650 x 860 x 310	750 x 900 x 340
Indoor Package Dimensions (HxWxD) (mm)	335 x 870 x 265		390 x 1000 x 315	390 x 1170 x 315
Outdoor Package Dimensions (HxWxD) (mm)	600 x 910 x 360		630 x 940 x 385	720 x 995 x 420	820 x 1060 x 450
Indoor Weight (Net/Gross) (kg)	8.5 / 11		12.5 / 14.5	13.5 / 16	13 / 16
Outdoor Weight (Net/Gross) (kg)	25.5 / 28	28 / 30	34 / 37	43.5 / 47.5	52 / 56
