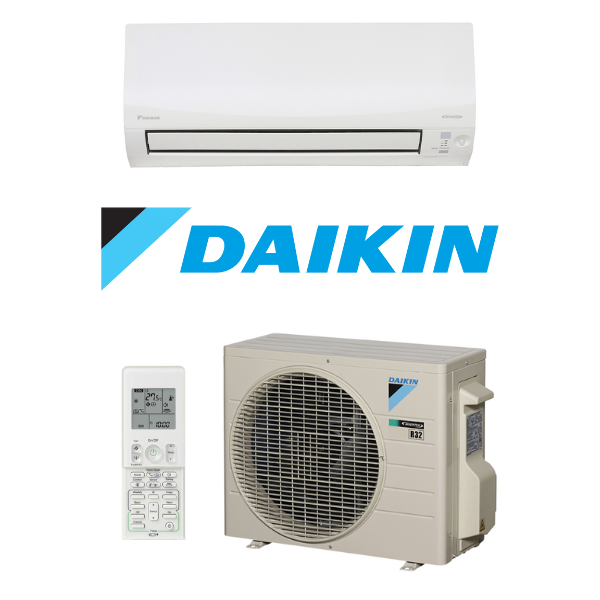

Install Package - Daikin Cora FTXV35W 3.5kW Wall Split Air Conditioning Package

FTXV35WVMA/RXV35WVMA Daikin Wall Split Supply & Install





Install Location

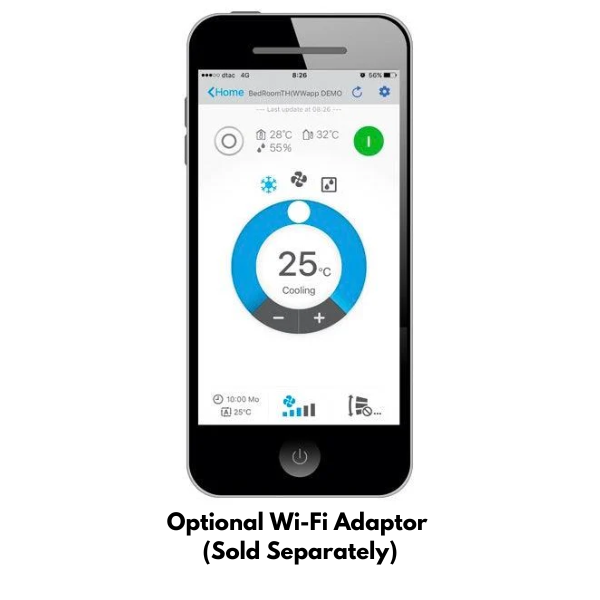

Supply & Installation Package - Daikin Cora Series FTXV35W 3.5kW Wall Split System (Optional Wi-Fi Adaptor)

Delivered in understated confidence, the Daikin Cora series features whisper quiet operation, industry leading energy efficiency and superior comfort levels without compromising on style. Able to blend in harmoniously with modern bedrooms and living areas with its smooth contours and flat panel design in a high quality matte white finish, nothing compares to creating that ideal family sanctuary that makes you feel right at home all year round.

Standard Installation Inclusions:

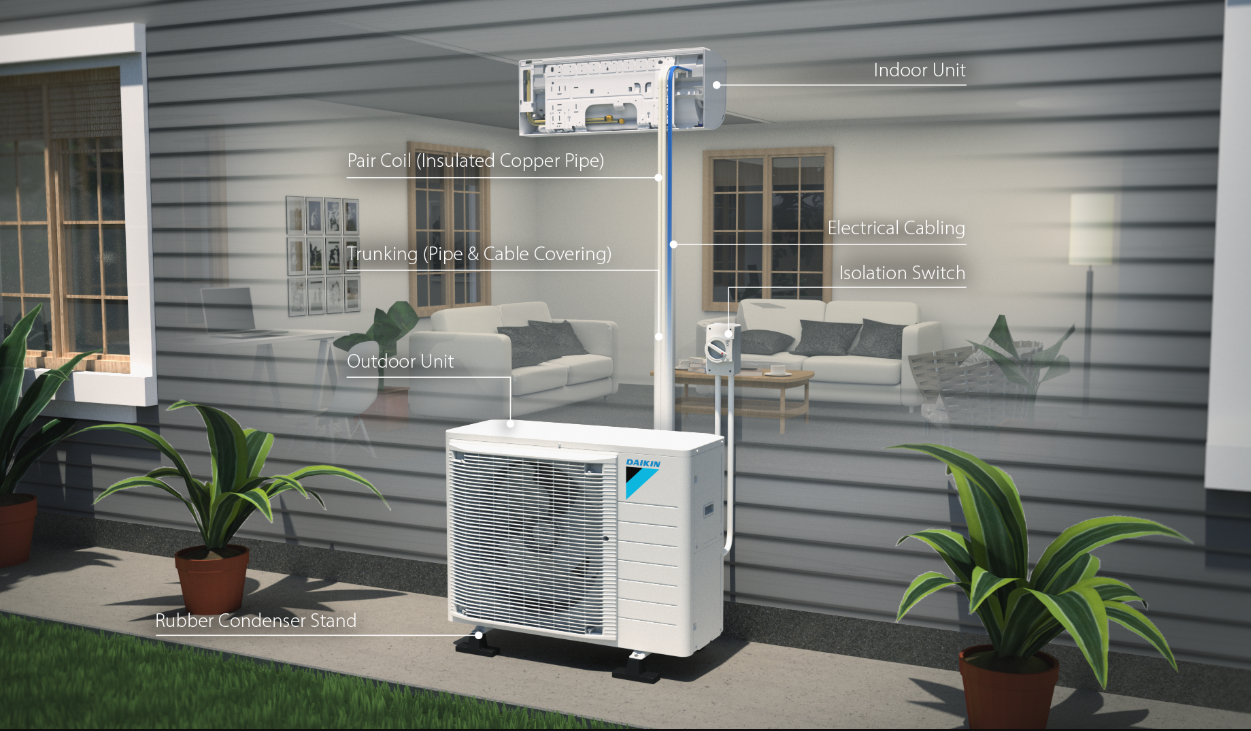

  • Wall Split Air Conditioner Installation
  • Suitable for a single-story (lowset) home
  • Back-to-back installation with a maximum 3m pipe run
  • Outdoor unit mounted on the ground

Terms & Conditions:

  • The quoted price represents “Pricing From” based on a standard installation.
  • Non-standard installations may incur additional costs and require a separate quote based on individual site requirements.
  • Pricing does not cover new builds or replacement installations.
  • Brisbane pricing applies to the Brisbane region.
  • Sydney pricing applies to areas within 20km of our Prestons office.
  • For other areas, a custom quote will be provided.

For a tailored quote based on your specific installation needs, contact our Sales Team today!



Key System Features:

It's the unique features of Daikin products that makes us the world leader.

R32-Refrigerant   R32 Refrigerant: Enables increased energy efficiency and a significant reduction in 'Global Warming Potential Factor' - great for the environmentally conscious.

Inverter Powerful Operation   Powerful Operation: Pushing the POWERFUL button on the remote control gives you a boost in cooling or heating power for a 20 minute period, even if the unit is already operating at high capacity.

2-Area-Intelligent Eye   Intelligent Comfort: Wall mounted indoor units feature Daikin’s Intelligent Eye human sensor that ensures draught free comfort and energy saving operations when the room is unoccupied.

Precision Control   Precision Control: Room temperature can be set in increments of 0.5°C to ensure optimal comfort conditions all year round.

Conanda-Airflow   Coanda Airflow: Discharge louvres designed to stream air along the ceiling for longer throws and delivering rapid cooling and even temperature distribution.

Air-Purification   Air Purification: Enzyme blue deodorising air purification filter traps microscopic particles, decomposes odours and even deactivates bacteria.

(FTXV35W-INSTALL)

System Names FTXV20W FTXV25W FTXV35W FTXV46W FTXV50W FTXV60W FTXV71W

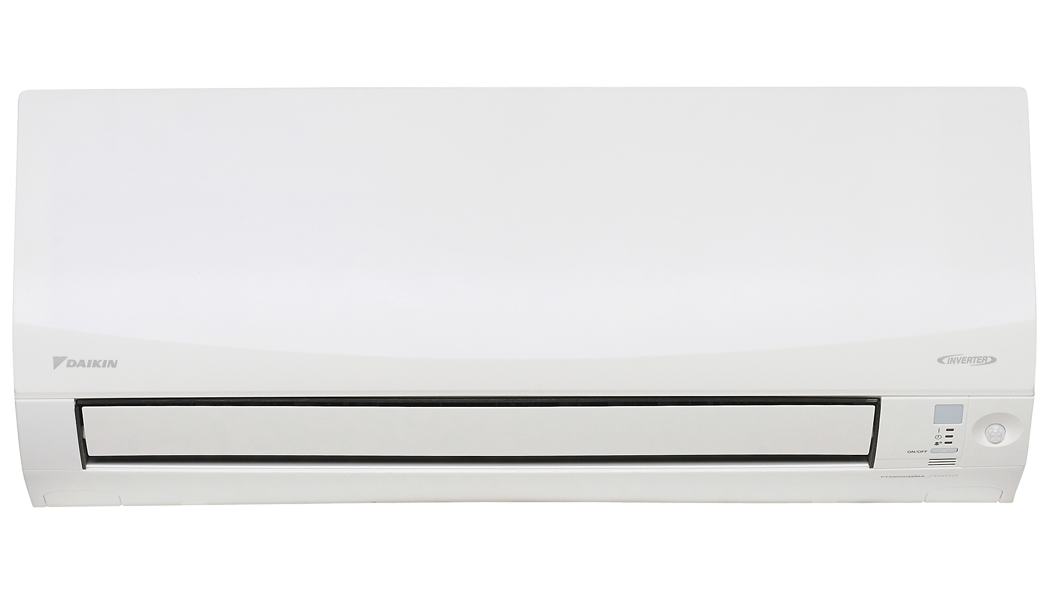

Indoor Unit FTXV20WVMA FTXV25WVMA FTXV35WVMA FTXV46WVMA FTXV50WVMA FTXV60WVMA FTXV71WVMA

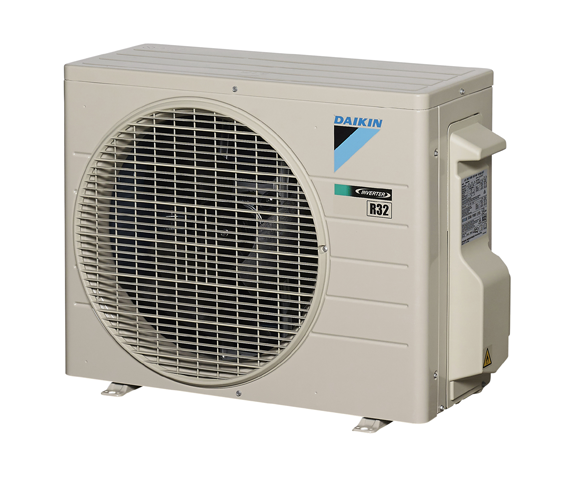

Outdoor Unit RXV20WVMA RXV25WVMA RXV35WVMA RXV46WVMA RXV50WVMA RXV60WVMA RXV71WVMA
Rated Cooling Capacity (kW) 2.0 2.5 3.5 4.6 5.0 6.0 7.1
Rated Heating Capacity (kW) 2.7 3.2 3.7 4.7 6.0 7.2 8.0
Indoor Airflow Rate (Cool/Heat) (I/s) 152 / 157 173 / 168 175 / 183 203 / 202 267 / 287 310 / 333 310 / 328
Indoor Fan Speeds 5 Steps, Quiet and Automatic
Front Panel Colour White
Power Supply 1 Phase, 220-240V, 50Hz
E.E.R / C.O.P 5.00 / 5.09 5.10 / 5.00 4.32 / 4.81 3.83 / 4.23 4.39 / 4.62 3.95 / 4.42 3.68 / 4.26
Indoor Unit Dimensions (H x W x D) (mm) 285 x 770 x 223 295 x 990 x 263
Outdoor Unit Dimension (H x W x D) (mm) 550 x 675 x 284 695 x 930 x 350
Indoor Unit Weight (kg) 9 13
Outdoor Unit Weight (kg) 28 30 51 54 60
Refrigerant R32
Max Pipe Length (m) 20 30
Max Level Difference (m) 15 20
Pipe Sizes (Liquid/Gas) (mm) 6.4 / 9.5 6.4 / 12.7 6.4 / 15.9
Outdoor Operating Range (Cool/Heat) -10 to 46 / -15 to 18
SKU FTXV35W-INSTALL
Brand Daikin
Shipping Weight 39.0000kg
Shipping Cubic 0.154372000m3
Unit Of Measure ea

Daikin offers a 5-year warranty for all of their Air Conditioners and Controllers. Lawson Air Conditioning offers a 1-year warranty on all Split System Installs
