i Z o n e D u c t e d A i r C o n t r o l l e r

Up to 14 Zones, New 7" Display
Individual Wireless Temp Sensors
Auto Adjust Air Flow & Temperature

The iZone climate control system is highly affordable, efficient and effective. It’s far superior to most other systems and as Smart Alec says, “it’s about outsmarting not outspending.”

iZone Panasonic

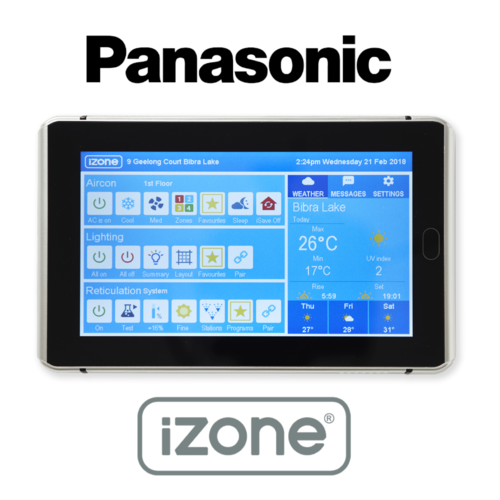

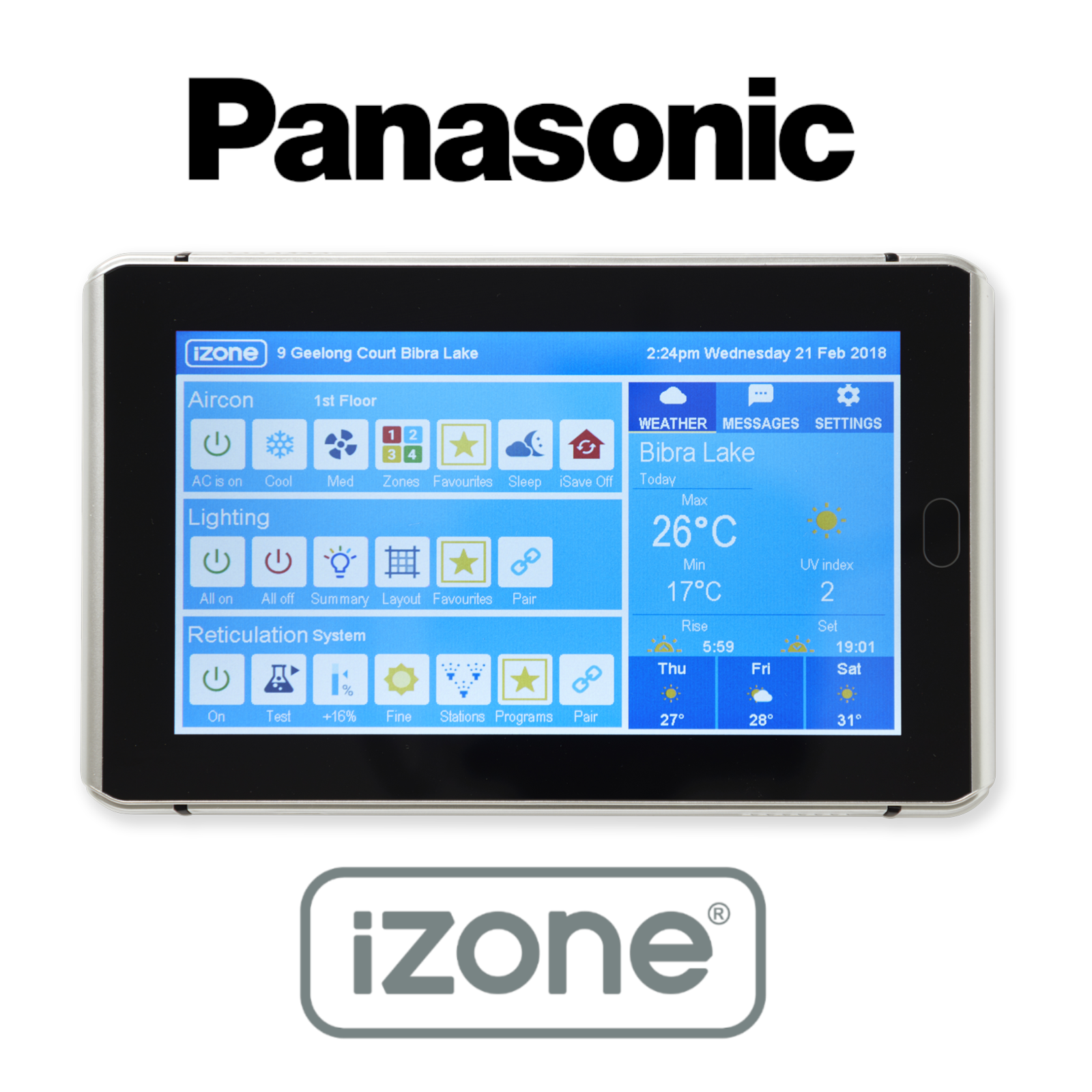

Panasonic Ducted Controller Touch Pad Kit

This Controller kit work specfically with Panasonic Ducted models. iZone allows for multiple ducted units if required for larger homes (addtional components will apply).

Touch Pad Colour Options Include: (please let us know when ordering)

White

Black

Rose Gold

Silver

Complete Kit Includes:

1 x Touch screen

1 x RJ45 cable

1 x 8 zone CPU

1 x Transformer

1 x Panasonic WiFi Bridge

1 x Induct Sensor

NOTE:

1) This kit is the Controller ONLY, does not include Installation, Zone Motors, Dampers, Wireless Sensors, Duct, Grilles etc. To be brought separately.

2) Compatable with 24v Zone motors. RJ11 or RJ12 Plugs

Pins 1 & 2 = Normally Open

Pins 3 & 4 = Neutral

Pins 5 & 6 = Normally Closed

(C-IZNPK_izonepanasonic)

SKU	C-IZNPK_izonepanasonic
Brand	iZone
Shipping Weight	0.5000kg
Shipping Width	0.330m
Shipping Height	0.140m
Shipping Length	0.250m
Shipping Cubic	0.011550000m3
