LG 7.1kW WS24SL Smart Series Wall Split Air Conditioning System

Calculate Shipping

Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm.

Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Sydney Warehouse. Mon - Fri 8am - 4pm.

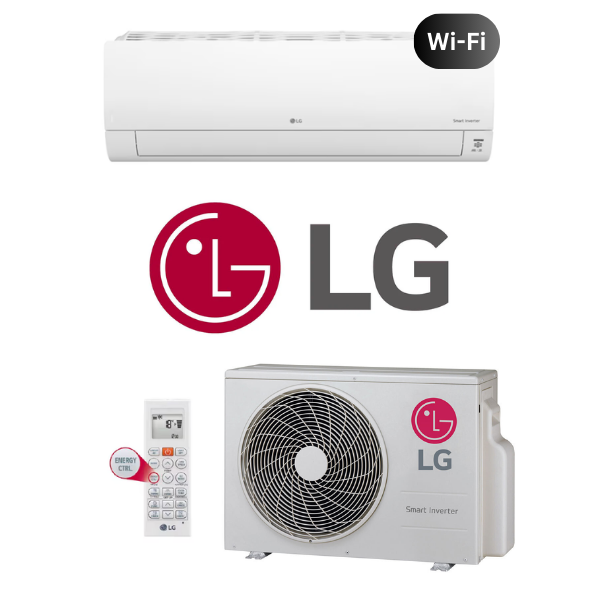

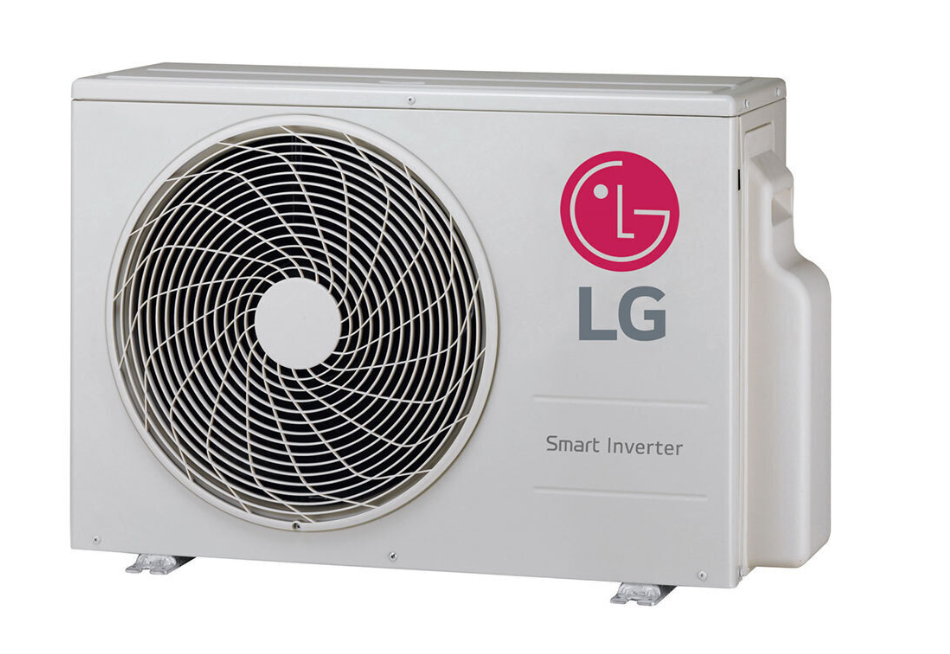

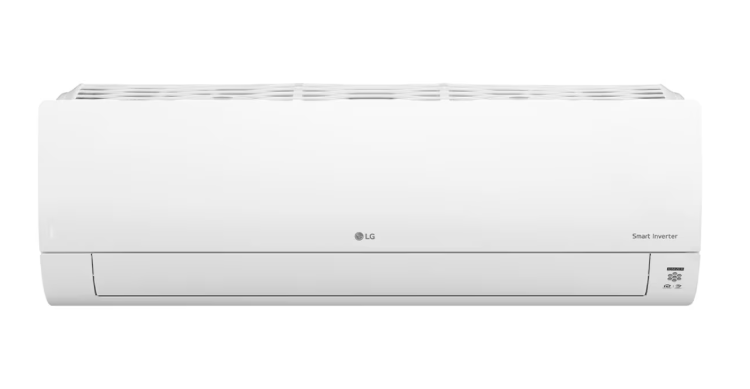

LG WS24SL 7.1kW Smart Series Wall Mounted Split System (Built-In Wi-Fi) - Includes Outdoor Unit WS24SLU and Wireless Controller

Designed for the way you live, LG Air Conditioners are available in a wide range of styles - so you can create a space that’s cool, comfortable and stylish.

With LG Split System air conditioning products, you’ll also enjoy benefits such as:

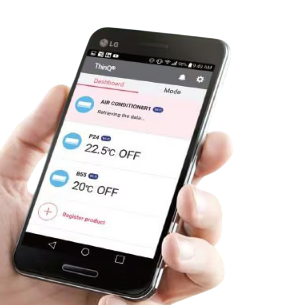

Built-in Wi-Fi Smart Control
Smart Diagnosis

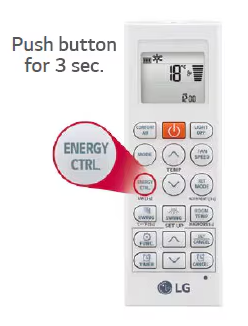

Active Energy Control
Energy Display and Monitoring
Auto Cleaning
4-Way Swing
Jet Cool
Low Sound Levels
Smart Inverter Compressor

For ease of installation, energy efficiency and quiet performance, LG air conditioning systems are the smart choice.

(WS24SL)

System	WS09TWS	WS12TWS	WS18TWS	WS24SL
Indoor Unit	WS09TWN	WS12TWN	WS18TWN	WS24SLN
Outdoor Unit	WS09TWU	WS12TWU	WS18TWU	WS24SLU
Rated Cooling Capacity (kW)	2.6	3.4	4.8	7.1
Rated Heating Capacity (kW)	3.2	4.0	5.9	7.7
Power Supply (V/Ph/Hz)	220-240 / 1 / 50
Capacity Range Cool/Heat (kW)	0.89-3.70 / 0.89-5.00	0.89-4.04 / 0.89-6.00	0.90-5.50 / 0.90-6.40	1.00-8.00 / 1.00-8.50
Rated Power Input Cool/Heat (kW)	0.600 / 0.743	0.895 / 0.990	1.460 / 1.675	2.150 / 2.100
Running Current (A)	3.0 / 3.3	4.4 / 4.7	6.5 / 7.4	9.4 / 9.2
EER/COP (W/W)	4.33 / 4.31	3.80 / 4.04	3.29 / 3.52	3.30 / 3.67
AEER/ACOP	4.26 / 4.25	3.76 / 4.00	3.27 / 3.50	3.30 / 3.66
Energy Label Grade (Cool)	4.5 / 4.0 / 4.0	4.0 / 3.5 / 4.0	3.5 / 3.5 / 3.5	4.0 / 4.0 / 4.0
Energy Label Grade (Heat)	3.0 / 3.0 / 2.5	3.0 / 2.5 / 2.0	3.0 / 2.0 / 1.5	3.0 / 2.5 / 1.5
Indoor Air Flow (Cool) (Max/H/M/L) (L/s)	200 / 183 / 150 / 92		258 / 242 / 217 / 175	383 / 283 / 233 / 183
Indoor Air Flow (Heat) (Max/H/M/L) (L/s)	208 / 183 / 150 / 108		308 / 267 / 225 / 183	433 / 333 / 283 / 233
Indoor Sound Pressure Level Cool (Max/H/M/L/SL) dB(A)	48 / 42 / 37 / 27 / 19		49 / 44 / 39 / 34 / 31	- / 46 / 41 / 36 / 27
Indoor Unit Dimensions (HxWxD) (mm)	308 x 837 x 189		345 x 998 x 210	360 x 1060 x 265
Indoor Unit Net Weight (kg)	9.1		11.7	16.6
Compressor	Twin Rotary
Condenser (Corrosion Protection)	Gold
Outdoor Sound Pressure Level Cool/Heat dB(A)	49 / 51		53 / 55	49 / 52
Outdoor Sound Power Level dB(A)	56	58	61	63
Outdoor Unit Dimensions (HxWxD) (mm)	545 x 770 x 288			650 x 870 x 330
Outdoor Unit Net Weight (kg)	35			45.7
Outdoor Operating Range Cool/Heat (C)	-15 to 48 / -15 to 24		-15 to 48 / -10 to 24	-10 to 48 / -10 to 24
Field Connections
Circuit Breaker (A)	15		20
Power Supply Cable (No. x mm2)	3 x 1.0		3 x 1.5	3 x 2.5
Power and Communication Cable (No. x mm2)	4 x 1.0
Field Piping
Pipe Sizes (Liquid/Gas) (mm)	6.35 / 9.52		6.35 / 12.7
Connection Method IDU/ODU	Flared / Flared
Drain Hose Size IDU/ODU	20 / 15
Min-Max Piping Length (m)	3 - 20			3 - 30
Pre-Charge Length (m)	7.5
Max Elevation Difference (m)	10			20
Piping Connection Heat Insulation	Both Liquid and Gas Pipes
Refrigerant Type/Pre-Charge (g)	R32 / 800		R32 / 1000	R32 / 1300
Additional Charge (g/m)	20
Refrigerant Charge Control	Electronic Expansion Valve
