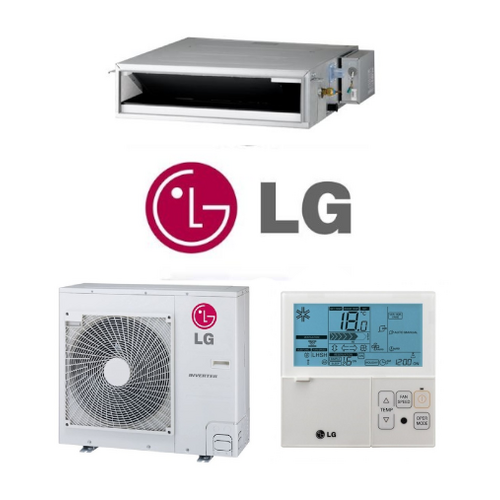

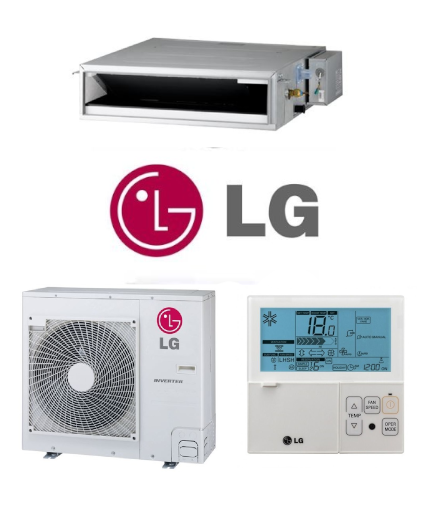

LG UBN36R 9.5kW Slim Ducted Split Air Conditioner - Includes Outdoor Unit UU36WR
The Ultimate combination of Stylish Design and Smart Technology. Designed for the way you live, our ducted air conditioners can be installed in a new home or tailored to an existing one. Our ducted units can typically be installed discreetly in residential houses - so you can create a space that’s cool, comfortable and stylish.
Features:
- Optional Wi-Fi Control
- Improved Energy Efficiency
- Zone Control
(UBN36RKIT)

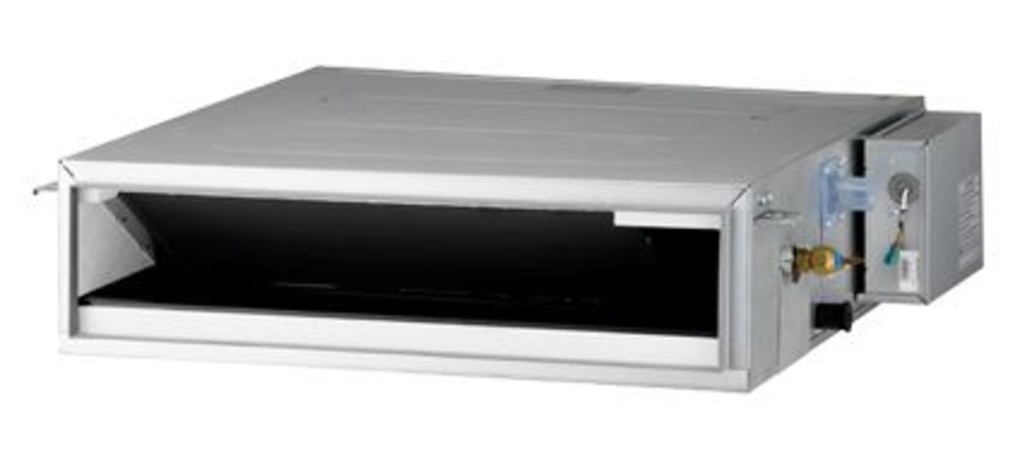

| Indoor Unit |
UBN36R |

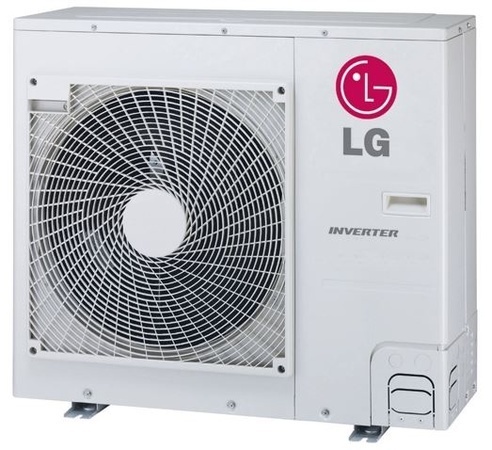

| Outdoor Unit |
UU36WR |
| Power Supply |
1 Phase, 220 ~ 240v, 50Hz |
| Rated Capacity |
| Cool (kW) |
9.5 |
| Heat (kW) |
10.8 |
|
| Capacity Range |
| Cool (kW) |
4.5 ~ 13.0 |
| Heat (kW) |
5.0 ~ 13.7 |
|
| Power Input (Rated) |
| Cool (kW) |
2.43 |
| Heat (kW) |
2.85 |
|
| Running Current |
| Cool (A) |
10.60 |
| Heat (A) |
12.40 |
|
| EER/COP |
3.91 / 3.79 |
| AEER/ACOP |
3.83 / 3.72 |
| Dimensions (HxWxD) |
| Indoor (mm) |
270 x 1250 x 700 |
| Outdoor (mm) |
1380 x 950 x 330 |
|
| Weight |
| Indoor (kg) |
38.5 |
| Outdoor (kg) |
87.5 |
|
| Refrigerant Type |
R32 |
| Refrigerant Amount |
(kg) |
3.00 |
| Pre-Charged to Pipe |
(m) |
7.5 |
| Max Pipe Length |
(m) |
85 |
| Max Level Difference |
|
| Pipe Sizes |
| Liquid (mm) |
9.52 |
| Gas (mm) |
15.88 |
|
| Drain Size |
(mm) |
OD 32 / ID 25 |
| Air Connection Size |
| Supply (mm) |
200 x 1206 |
| Return (mm) |
230 x 1205 |
|
| Ambient Temperature |
| Cool (°C) |
-15 ~ 48 |
| Heat (°C) |
-18 ~ 18 |
|
| Indoor Airflow Rate |
|
| Max External Static Pressure |
(Pa) |
150 |
| Indoor Sound Pressure Level (H/SL) |
| Cool (dBA) |
36 / 34 / 33 |
| Heat (dBA) |
36 / 34 / 33 |
|
| Outdoor Sound Pressure Level (H/SL) |
| Cool (dBA) |
52 |
| Heat (dBA) |
54 |
|
| Outdoor EPA Sound Power Level (H) |
|
| SKU |
UBN36RKIT |
| Brand |
LG |
| Shipping Weight |
126.0000kg |
| Unit Of Measure |
ea |
