LG High Efficiency 9.4kW WH34SR-18 Wall Split Air Conditioning System
WH34SRN-18 / WH34SRU-18 LG Wall Split
$2,260.90 Excl GST
.jpg)

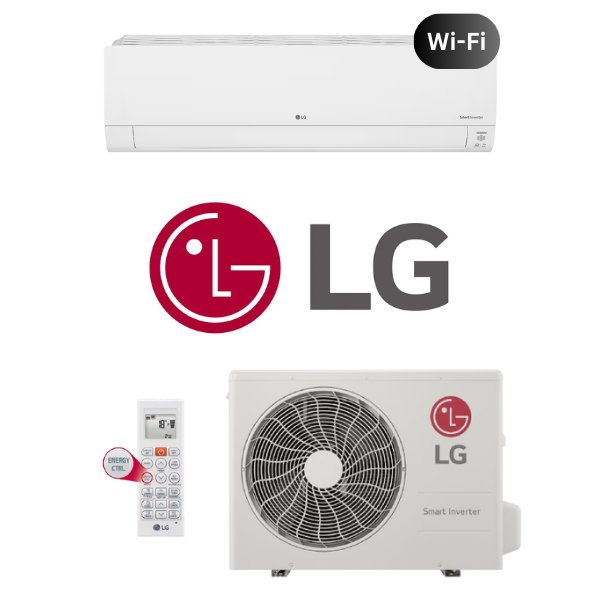

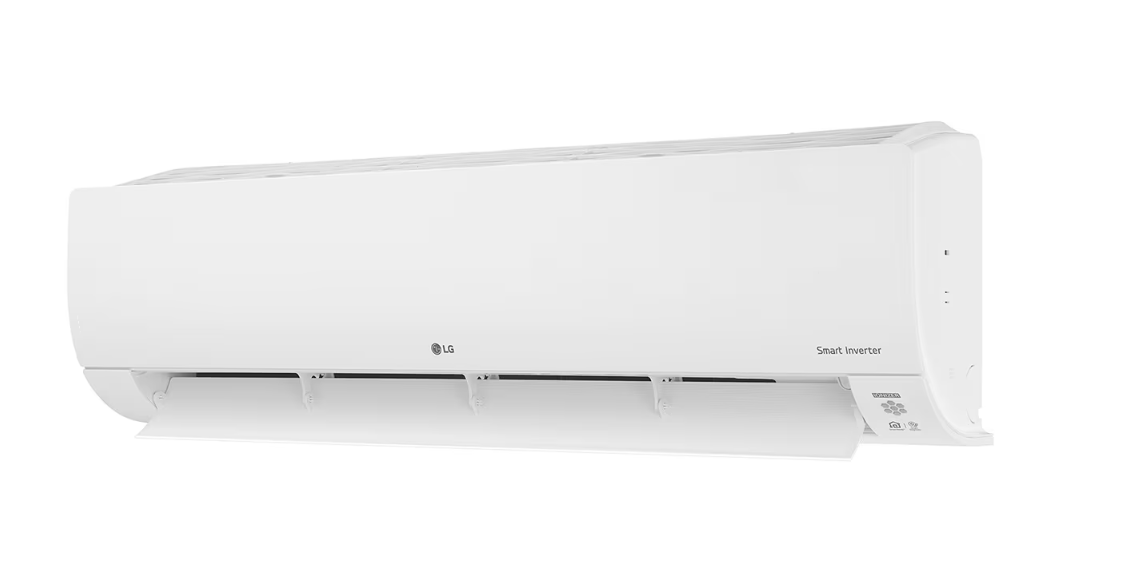

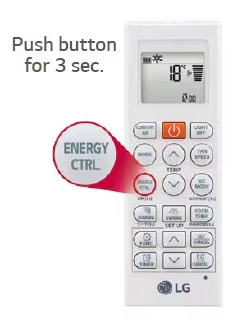

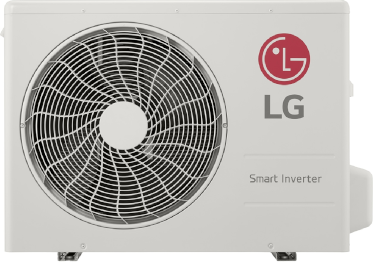

LG WH34SR-18 9.4kW Premium Wall Split System (Built-In Wi-Fi) - Includes Outdoor Unit WH34SRU-18 and Wireless Controller
LG air conditioners provide high reliability and comfort. Our latest technological innovations ensure greater overall system reliability as well as convenient benefits such as quick, stable cooling and a wider operation range than conventional air conditioning systems.
Upgrade to iZONE Smart Home - WiFi Ducted Zone Controller
Your smart home automation system begins here. Air Conditioning, LED Lighting, Garage Door, Security, Garden Sprinkler System.....the list goes on.
Start with one now....add more later!!
Alternative option to MyAir, MyLights, C-BUS, Fibaro, Control4, Atmos, Nero, Clipsal, Iconic smart home automation product suppliers.
(WH34SR-18)
| System | WH09SK-18 | WH12SK-18 | WH18SL-19 | WH24SL-18 | WH30SR-18 | WH34SR-18 |
|---|---|---|---|---|---|---|
| Indoor Unit | WH09SKN-18 | WH12SKN-18 | WH18SLN-19 | WH24SLN-18 | WH30SRN-18 | WH34SRN-18 |
| Outdoor Unit | WH09SKU-18 | WH12SKU-18 | WH18SLU-19 | WH24SLU-18 | WH30SRU-18 | WH34SRU-18 |
| Rated Cooling Capacity (kW) | 2.5 | 3.5 | 5.0 | 7.1 | 8.5 | 9.4 |
| Rated Heating Capacity (kW) | 3.2 | 4.0 | 6.0 | 8.0 | 9.4 | 10.3 |
| Power Supply (V/Ph/Hz) | 220-240 / 1 / 50 | |||||
| Capacity Range Cool/Heat (kW) | 0.89-3.70 / 0.89-5.00 | 0.89-4.20 / 0.89-6.00 | 1.00-6.00 / 1.00-9.00 | 1.00-8.60 / 1.00-10.60 | 2.00-9.50 / 2.00-12.00 | 2.00-11.20 / 2.00-12.80 |
| Rated Power Input Cool/Heat (kW) | 0.52 / 0.65 | 0.86 / 0.87 | 1.22 / 1.38 | 1.89 / 1.99 | 2.26 / 2.24 | 2.68 / 2.74 |
| Running Current (A) | 2.8 / 3.3 | 4.0 / 4.7 | 5.1 / 7.4 | 8.4 / 9.2 | 10.1 / 10.0 | 12.0 / 12.3 |
| EER/COP (W/W) | 4.88 / 4.90 | 4.07 / 4.60 | 4.10 / 4.35 | 3.76 / 4.02 | 3.76 / 4.02 | 3.51 / 3.76 |
| AEER/ACOP | 4.88 / 4.90 | 4.07 / 4.60 | 4.10 / 4.35 | 3.76 / 4.02 | 3.76 / 4.02 | 3.51 / 3.76 |
| Energy Label Grade (Cool) | 5.0 / 4.5 / 4.5 | 4.5 / 4.5 / 4.5 | 3.5 / 3.5 / 3.5 | 3.0 / 3.0 / 3.0 | ||
| Energy Label Grade (Heat) | 3.0 / 3.0 / 2.5 | 3.0 / 2.5 / 2.0 | 3.0 / 2.0 / 1.5 | 3.0 / 2.5 / 2.0 | 3.0 / 2.5 / 1.5 | |
| Indoor Air Flow (Max/H/M/L) (L/s) | 333 / 200 / 166 / 86 | 383 / 283 / 233 / 183 | 516 / 416 / 350 / 283 | |||
| Indoor Sound Pressure Level (Cool) (Max/H/M/L/SL) dB(A) | - / 42 / 36 / 26 / 22 | - / 46 / 41 / 36 / 27 | - / 49 / 44 / 40 / 30 | - / 51 / 46 / 42 / 33 | ||
| Indoor Unit Dimensions (HxWxD) (mm) | 345 x 998 x 210 | 360 x 1060 x 265 | 360 x 1200 x 265 | |||
| Indoor Unit Net Weight (kg) | 12 | 16.6 | 18.5 | |||
| Compressor | Twin Rotary | |||||
| Condenser (Corrosion Protection) | Gold | |||||
| Outdoor Sound Pressure Level Cool/Heat dB(A) | 49 / 51 | 54 / 57 | 55 / 56 | 55 / 57 | ||
| Outdoor Sound Power Level dB(A) | 56 | 59 | 60 | 62 | 65 | |
| Outdoor Unit Dimensions (HxWxD) (mm) | 545 x 770 x 288 | 650 x 870 x 330 | 832 x 950 x 330 | |||
| Outdoor Unit Net Weight (kg) | 35 | 45.7 | 59.4 | 64.6 | ||
| Outdoor Operating Range Cool/Heat (C) | -10 to 48 / -10 to 24 | -10 to 48 / -15 to 24 | ||||
| Field Connections | ||||||
| Circuit Breaker (A) | 15 | 20 | 25 | |||
| Power Supply Cable (No. x mm2) | 3 x 1.0 | 3 x 2.5 | ||||
| Power and Communication Cable (No. x mm2) | 4 x 1.0 | |||||
| Field Piping | ||||||
| Pipe Sizes (Liquid/Gas) (mm) | 6.35 / 9.52 | 6.35 / 12.7 | 9.52 / 15.88 | |||
| Connection Method IDU/ODU | Flared / Flared | |||||
| Drain Hose Size IDU/ODU | 20 / 15 | |||||
| Min-Max Piping Length (m) | 3 - 20 | 3 - 30 | ||||
| Pre-Charge Length (m) | 12.5 | 7.5 | ||||
| Max Elevation Difference (m) | 10 | 20 | ||||
| Piping Connection Heat Insulation | Both Liquid and Gas Pipes | |||||
| Refrigerant Type/Pre-Charge (g) | R32 / 900 | R32 / 1300 | R32 / 1750 | R32 / 2000 | ||
| Additional Charge (g/m) | 20 | |||||
| Refrigerant Charge Control | Electronic Expansion Valve | |||||
| SKU | WH34SR-18 |
| Brand | LG |
| Shipping Weight | 85.6000kg |
| Shipping Cubic | 0.375312000m3 |
| Unit Of Measure | ea |
