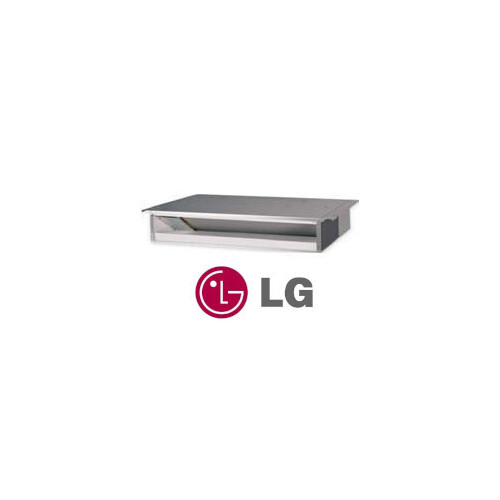

LG NHXM70D3A1 Low Static Ducted Unit

NHXM70D3A1 7.0kW Air Conditioner (indoor only)




$792.00 Incl GST
$720.00 Excl GST
In Stock

Dear Customers, our online sales will close on 23rd December 2024 at 8:00 AM and will recommence on 2nd January 2025 at 8:00 AM.



LG NHXM70D3A1 Low Static Ducted Unit

The NHXM70D3A1 7.0kW Ceiling Concealed Ducted Unit. The LG slim ducted fan coil unit is a good solution for Apartments or Hotel rooms with lower ceiling space with the height of 190mm for 2.6kw up to 7.0kw. The drain pump is fitted standard to drain condensate water out Where drain gradient is not enough. An auxiliary condensate drain pump is available as an option for all LG ducted indoor units. This is an ideal solution where drain fall is limited or unavailable. This will lift water up to a 700mm height above the drain outlet.

(NHXM70D3A1)

MODEL NHXM70D3A1
Power Input Cooling/Heating Nom W 150
Running Current Cooling/Heating Nom A 1.0
Power Supply ø / V / Hz 1 / 220 - 240 / 50
Air Flow Rate   High/Medium/Low l/s 333 / 266 / 200
  Pa (mmAq) 24.5 (2.5)
Sound Pressure Cooling High/Medium/Low dBA 39 / 35 / 32
Dimension Body WxHxD mm 1100 x 190 x 700
Net Weight Body kg 27.0
Piping Connection Liquid mm ø6.35
Gas mm ø12.7
Drain (O.D. / I.D.) mm ø32 / 25
Power and Communication Cable No. x mm2 4C x 0.75
SKU NHXM70D3A1
Brand LG
Shipping Weight 27.0000kg
Shipping Width 1.100m
Shipping Height 0.190m
Shipping Length 0.700m
