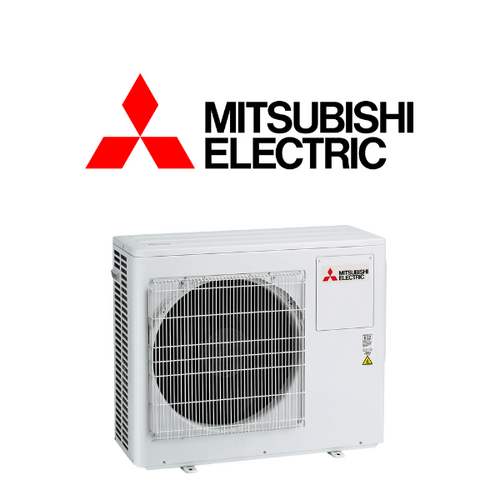

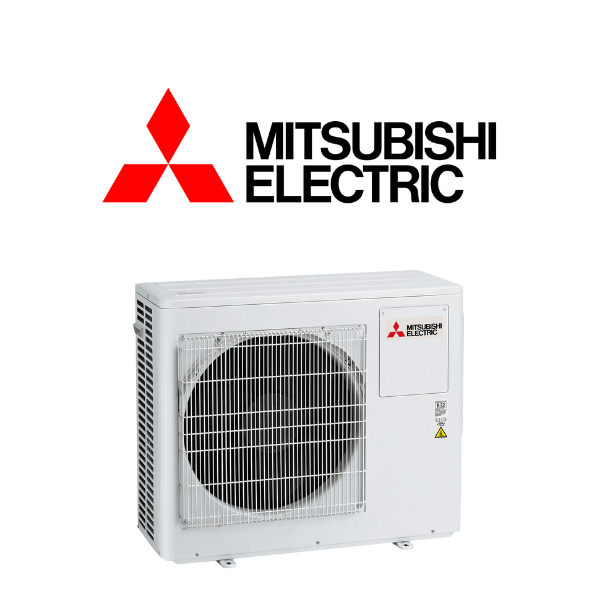

Mitsubishi Electric MXZ-4F71VGD-A1 7.1kW Outdoor 2 - 4 Port Multi R32 Air Conditioning Unit

The MXZ-4F71VGD-A1 multi split system reverse-cycle air conditioner is specifically designed for properties with three bedrooms, though it can support up to four indoor units connected to a single outdoor system. While it offers the flexibility to mix and match different indoor unit styles, it performs optimally when paired with three 2.2kW indoor units – making it an efficient solution for bedroom zones in homes and apartments. You can choose from wall-mounted, floor-standing, ceiling cassette and ducted options to suit each bedroom’s layout while maintaining consistent performance in both heating and cooling modes.

Key Features:

Capacity: 7.1 kW
Energy efficient
Wi-Fi Control
Quiet operation
Individual Temperature Control for Each Room
Demand Response Capable

(MXZ-4F71VGD-A1)

Outdoor Unit Name	MXZ-2F52VF-A1	MXZ-2F52VGD-A1	MXZ-3F54VGD-A1	MXZ-4F71VGD-A1	MXZ-4F80VGD-A1	MXZ-5F100VGD-A1	MXZ-6F120VGD-A1
Power Supply	1 Phase, 220-230V, 50-60Hz
Cooling Capacity (kW)	5.2	5.2	5.4	7.1	8.0	10.0	12.0
Heating Capacity (kW)	6.1	6.1	7.0	8.0	8.8	10.0	13.2
Indoor Unit Connection	2 Units		2 to 3 Units	2 to 4 Units		2 to 5 Units	2 to 6 Units
Total Rated Input (Cool/Heat) (kW)	1.38 / 1.49	1.38 / 1.45	1.25 / 1.43	1.79 / 1.67	1.98 / 1.68	2.84 / 2.07	3.30 / 3.00
EER / COP	3.77 / 4.09	3.77 / 4.21	4.32 / 4.90	3.97 / 4.79	4.04 / 5.24	3.52 / 4.83	3.64 / 4.40
Sound Pressure Level (Cool/Heat) dB(A)	46 / 50			48 / 54	49 / 51	52 / 56	53 / 57
Max Running Current (A)	12.2		18		21.4		29.8
Pre-Charge Refrigerant	1.0	2.4
Max Pipe Length (Total / Each) (m)	30/20	40/20	50/25	60/25	70/25	80/25
Operating Range (Cool/Heat) (C)	Cooling: -10 to 46 / Heating: -15 to 24
Unit Dimensions (HxWxD) (mm)	550 x 800 x 285	710 x 840 x 330			796 x 950 x 330		1048 x 950 x 330
Unit Weight (kg)	37	57	58	59	61	62	87
Pipe Sizes (mm) (Liquid/Gas)	(6.35 / 9.52)x2		(6.35 / 9.52)x3	(6.35 / 9.52)x3 + (6.35 / 12.7)x1		(6.35 / 9.52)x4 + (6.35 / 12.7)x1	(6.35 / 9.52)x5 + (6.35 / 12.7)x1

SKU	MXZ-4F71VGD-A1
Brand	Mitsubishi Electric
Shipping Weight	59.0000kg
Shipping Width	0.330m
Shipping Height	0.710m
Shipping Length	0.840m
Shipping Cubic	0.196812000m3
Unit Of Measure	ea
