Mitsubishi Electric PCA-M125KAKIT 12.5kW R32 Single Phase Under Ceiling Split System
PKA-M125KAL/PUZ-ZM125VKA Under Ceiling Air Conditioner
$4,860.00 Excl GST
.jpg)

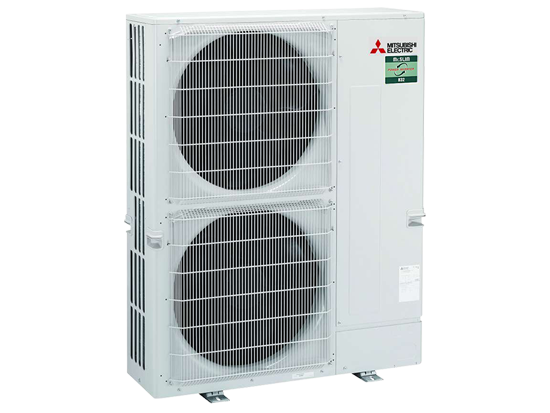

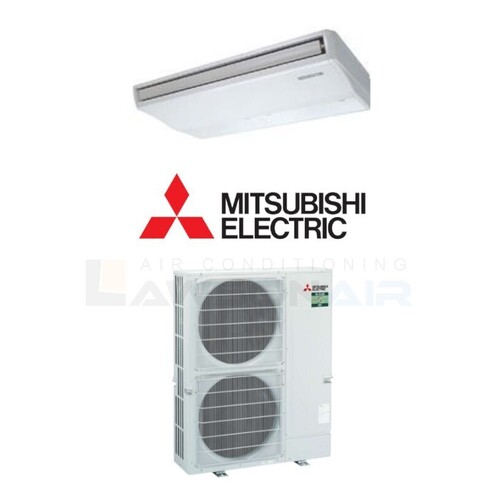

Mitsubishi Electric PCA-M125KAKIT R32 Single Phase Under Ceiling Split System - Includes Outdoor Unit PKA-M125KAL/PUZ-ZM125VKA
Mitsubishi Electric's 4-way airflow power suspended unit is the perfect choice for today's diversified residential and commercial applications. The three most important characteristics of an air conditioner - flexible layout planning, efficient yet powerful performance, and installation/maintenance ease - have been refined to make this series ideal for use in retail outlets, restaurants, business offices, etc.
Features:
- High Ceiling Compatible
- Reducing Energy Consumption
- Stylish Design
(PCA-M125KAKIT)
| Unit | PKA-M125KAL | |||
| Indoor Unit | PKA-M125KAL | |||
| Outdoor Unit | PUZ-ZM125VKA | |||
| Cooling | Capacity | Rated | kW | 12.5 |
| Min - Max | kW | 5.5 - 14.0 | ||
| Total Input | kW | 3.77 | ||
| Running current | A | 17.12 | ||
| AEER/EER | Rated Conditions | 3.22/3.31 | ||
| Air Flow | Low - Mid - Hi | L/s | 383 - 417 - 450 - 483 | |
| Sound Pressure Levels | Indoor (Lo-Mid-Hi) | dBA | 39 - 41 - 43 - 45 | |
| Outdoor | dBA | 50 | ||
| Heating | Capacity | Rated | kW | 14.0 |
| Min - Max | kW | 5.0 - 16.0 | ||
| Total Input | kW | 4.22 | ||
| Running Current | A | 19.46 | ||
| ACOP/COP | Rated Conditions | 3.23 / 3.31 | ||
| Air Flow | Low - Mid - Hi | L/s | 383 - 417 - 450 - 483 | |
| Sound Pressure Levels | Indoor (Lo-Mid-Hi) | dBA | 39 - 41 - 43 - 45 | |
| Outdoor | dBA | 52 | ||
| Dimensions | Indoor | HxWxD | mm | 230 x 1600 x 680 |
| Outdoor | HxWxD | mm | 1338 x 1050 x 330 | |
| Weight | Indoor | kg | 38 | |
| Outdoor | kg | 113 | ||
| Electrical Supply | V / Ph / Hz | 230 / 1 / 50 | ||
| Breaker Size | A | 32 | ||
| Piping | Maximum Length | m | 75 | |
| Maximum Height | m | 30 | ||
| Guaranteed Operating Range | Cooling | °C | -5(-15) to 52 | |
| Heating | °C | -20 to 21 | ||
| SKU | PCA-M125KAKIT |
| Brand | Mitsubishi Electric |
| Shipping Weight | 52.0000kg |
Warranty
Mitsubishi Heavy Industries Air-Contioners offers up to a 5-year parts and labour warranty for all of their air conditioners. Note your product might not be eligable for the full 5-year warranty. Refer to their terms and conditions.
