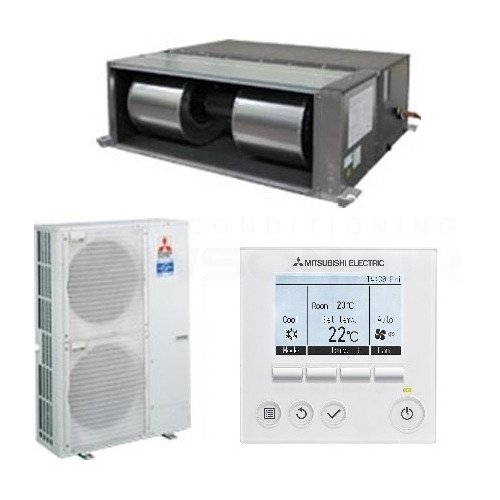

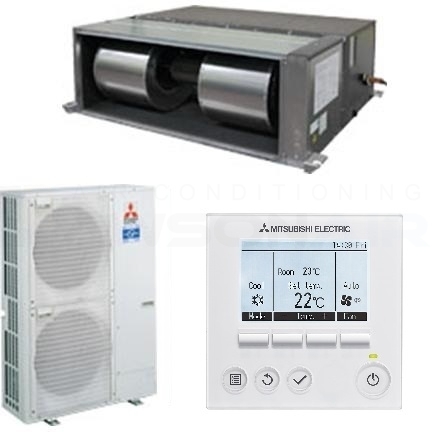

Mitsubishi Electric New PEA-RP170WJA-N 17.0 kW 1 Phase Power Inverter Ducted Unit

PEA-RP170WJA/PUZ-RP170VKA-A Ducted Unit Air Conditioner




$7,176.00 Incl GST
$6,523.64 Excl GST
In Stock



Mitsubishi Electric PEA-RP170WJA-N 17.0 kW 1 Phase Power Inverter Ducted Unit - Includes Outdoor PUZ-RP170VKA

Advanced technology makes Mitsubishi Electric Power Inverter ducted air conditioning the premium choice for creating your living environment. It provides energy savings when compared to non inverter models. The reason our Power Inverters are more energy efficient is because the system output varies constantly to maintain your perfect living environment. This means that a Power Inverter will cool or heat your home more rapidly and maintain the desired temperature without fluctuations while using less energy.


Features:

  • Accessories and options are available so that you get the system that suits you
  • Powerful yet extremely quiet operation
  • High static pressure fans means that even when connected to lengthy ductwork, the volume of airflow is maintained to keep your living environment comfortable at all times
  • All systems incorporate the latest referigerant R410A
  • Lightweight and compact means it is easy to install in limited roof space
  • Super quiet operation during the day and even quieter at night
  • Guaranteed operation for outdoor temperatures of -20ºC for heating and up to 46ºC for cooling
  • Long refrigerant piping allows even greater flexibility in the location of the outdoor unit
  • Uses the PAR-21MAA system controller for weekly scheduled operation
  • Self-diagnostic function in the unlikely event of a system malfunction.



Upgrade to iZONE Smart Home - WiFi Ducted Zone Controller

Your smart home automation system begins here. Air Conditioning, LED Lighting, Garage Door, Security, Garden Sprinkler System.....the list goes on.

Start with one now....add more later!!





Alternative option to MyAir, MyLights, C-BUS, Fibaro, Control4, Atmos, Nero, Clipsal, Iconic smart home automation product suppliers.

(PEA-RP170WJA-N)

Kit PEA-RP170WJA
Indoor Unit PEA-RP170WJA
Outdoor Unit PUZ-RP170VKA-A
Power Supply V / ø / Hz 230 / 1 / 50
Cooling Capacity min - nominal - max kW 9.0 - 16.0 - 19.5
Total input kW 4.94
AEER/EER   3.16 / 3.23
Running current (Rated) A 22.10
Sound Pressure Level In (Lo - Mid - Hi) dB(A) 38 - 41 - 44
Out dB(A) 58
Air Volume (In) Lo - Mid - Hi  L/s 833 - 1017 - 1200
Heating Capacity min - nominal - max kW 9.5 - 20.0 - 22.4
Input kW 6.00
ACOP/COP   3.26 / 3.33
Running current (Rated)   26.59
Sound Pressure Level In (Lo - Mid - Hi)   38 - 41 - 44
Out   59
Air Volume (In) Lo - Mid - Hi    833 - 1017 - 1200
Max. Running Current A 36.57
Indoor Unit Dimensions H x W x D mm 470 x 1370 x 1120
Weight kg 108
Outdoor Unit Dimensions H x W x D mm 1338 x 1050 x 330
Weight kg 124
Refrigerant Pipe size Liquid mm ø9.52
Gas mm ø25.4
Max. Piping Height m 30
Max. Piping Length m 75

Operating
Range

Cooling °C -5(-15) - 52
Heating °C -20 - 21
SKU PEA-RP170WJA-N
Brand Mitsubishi Electric
Shipping Weight 232.0000kg

Warranty

Mitsubishi Heavy Industries Air-Contioners offers up to a 5-year parts and labour warranty for all of their air conditioners. Note your product might not be eligable for the full 5-year warranty. Refer to their terms and conditions.
