Mitsubishi Electric 10.0kW PKA-RP100KAL.TH-3 Wall Split Air Conditioning System
PKA-RP100KAL / PUHZ-RP100YK Mits Electric Wall Split
$4,447.27 Excl GST

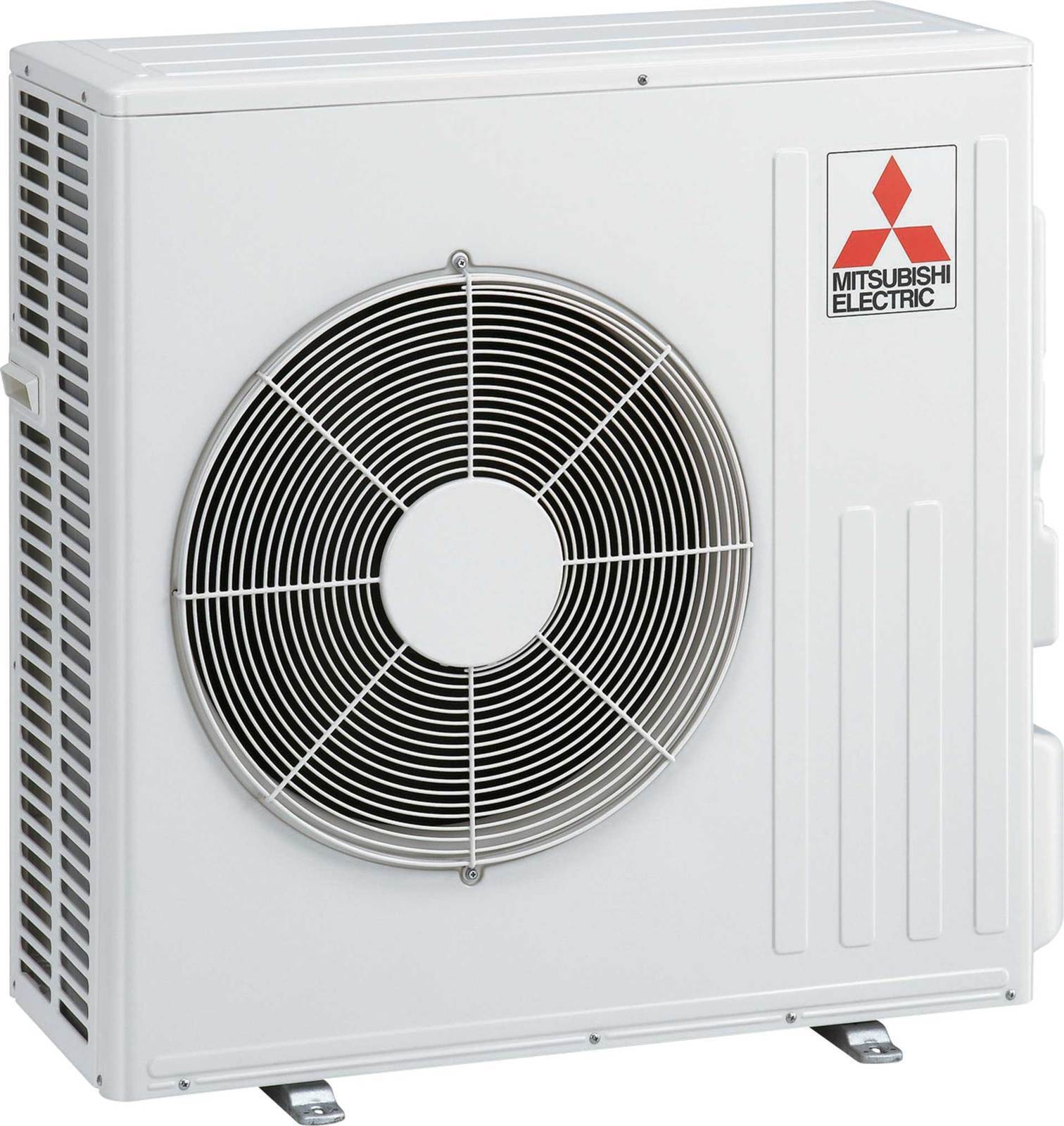

Mitsubishi Electric PKA-RP100KAL.TH-3 10.0 kW 3 Phase Wall Mounted Split System - Includes Outdoor Unit PUHZ-RP100YKA2

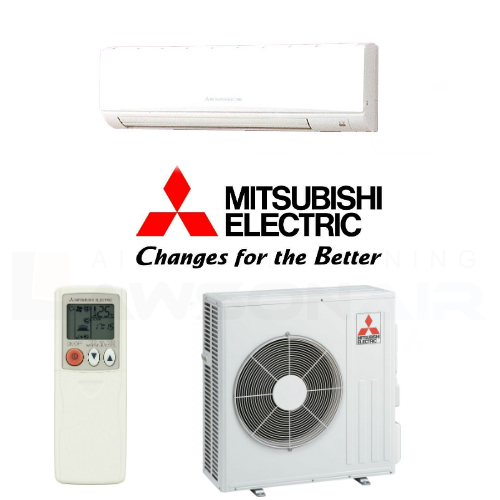

The split system comprises the PKA wall mounted indoor unit, an outdoor unit and a wall mounted control panel.
The PKA offers swing flow louvres, which give broader air distribution. The intake grille filter can be completely removed allowing easy cleaning, and improving efficiency.
Auto-flap Shutter Enhances Good Looks
The Intake Grille Filter Can be Completly Removed Allowing Easy Cleaning
4-way Piping Provides More Flexibility in Selecting Installation Sites
Wired Remote Controller Available(Optio)
Drain Pump Option Available with All Models
Thanks to the new power inverter system, a large reduction on power consumption is now possible. This results in one of the highest Coefficient of Performance (COP) ratings available, helping to lower overall running costs and providing great savings.
(PKA-RP100KAL.TH-3)
Specifications: Wall-Mounted (PKA) | |||
Indoor Unit | PKA-RP100KAL | ||
Outdoor Unit | PUHZ-RP100V/YKA2 | ||
Cooling | |||
Capacity (min.-max.) | (kW) | 10.0 (4.9-11.4) | |
Input | (kW) | 2.9 | |
Rated EER | 3.45 | ||
Rated AEER | 3.20/3.17 | ||
Heating | |||
Capacity (min.-max.) | (kW) | 11.2 (4.5-14.0) | |
Input | (kW) | 3.1 | |
Rated COP | 3.61 | ||
Rated ACOP | 3.34/3.31 | ||
Refrigerant Type | R410A | ||
Power Supply | V: Single Phase, 50Hz, 230V | ||
Y:Three phase, 50Hz, 400V | |||
Airflow (Lo-Mid-Hi) | CMM | 20 - 23 - 26 | |
L/S | 333 - 383 - 433 | ||
Sound pressure level | (dB) | 41 - 45 - 49 | |
Dimensions | Height | (mm) | 365 |
Width | (mm) | 1,170 | |
Depth | (mm) | 295 | |
Weight | (kg) | 21 |
SKU | PKA-RP100KAL.TH-3 |
Brand | Mitsubishi Electric |
Shipping Weight | 111.0000kg |
Warranty
Mitsubishi Heavy Industries Air-Contioners offers up to a 5-year parts and labour warranty for all of their air conditioners. Note your product might not be eligable for the full 5-year warranty. Refer to their terms and conditions.
