Mitsubishi Electric 14.0kW PLA-M140EA-3P-WL 3 Phase Cassette Air Conditioning System
PLA-M140EA-A / PUZ-ZM140YKA-A Mits Electric Cassette
$6,264.55 Excl GST
Dear Customers, our online sales will close on 23rd December 2024 at 3:00 PM and will recommence on 2nd January 2025 at 8:00 AM.
.jpg)

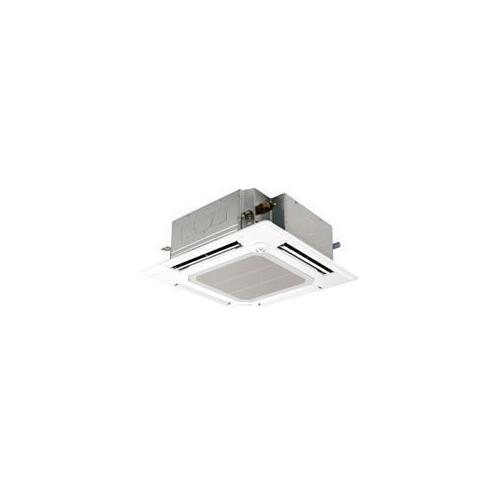

Mitsubishi Electric Wireless 14.0kW PLA-M140EA Cassette Split System - Includes Outdoor Unit PUZ-ZM140YKA-A
Our Deluxe PLA140 high performance cassette, has wide, powerful airflow, independent vane direction setting and wave airflow to provide consistent temperatures throughout the space you need to heat or cool. Perfect for larger residential rooms or office spaces. This model comes standard with an infrared remote controller.
Features:
- Optimum Airflow
- Automatic Air Speed Adjustment
- High and Low Ceiling Modes
(PLA-M140EA-3P-WL)
| Unit | PLA-M140 | |||
| Indoor Unit | PLA-M140EA-A | |||
| Outdoor Unit | PUZ-ZM140YKA-A | |||
| Power Supply | V / ø / Hz | 400 / 3 / 50 | ||
| Cooling | Capacity | min - nominal - max | kW | 6.2 - 13.5 - 15.3 |
| Total input | kW | 3.93 | ||
| AEER/EER | 3.30 / 3.43 | |||
| Running current (Rated) | A | 6.4 | ||
| Sound Pressure Level | In (Lo - Mid - Hi) | dB(A) | 36 - 39 - 42 - 44 | |
| Out | dB(A) | 50 | ||
| Air Volume (In) Lo - Mid - Hi | L/s | 400 - 433 - 483 - 533 | ||
| Heating | Capacity | min - nominal - max | kW | 5.7 - 16.0 - 18.0 |
| Input | kW | 4.48 | ||
| ACOP/COP | 3.45 / 3.57 | |||
| Running current (Rated) | 7.2 | |||
| Sound Pressure Level | In (Lo - Mid - Hi) | 36 - 39 - 42 - 44 | ||
| Out | 52 | |||
| Air Volume (In) Lo - Mid - Hi | 400 - 433 - 483 - 533 | |||
| Max. Running Current | A | 12.16 | ||
| Indoor Unit | Dimensions | H x W x D | mm | 298 x 840 x 840 |
| Weight | kg | 27 | ||
| Outdoor Unit | Dimensions | H x W x D | mm | 1138 x 1050 x 330 |
| Weight | kg | 114 | ||
| Panel | Dimensions | H x W x D | mm | 40 x 950 x 950 |
| Weight | kg | 5 | ||
| Refrigerant | Pipe size | Liquid | mm | ø9.52 |
| Gas | mm | ø15.88 | ||
| Max. Piping Height | m | 30 | ||
| Max. Piping Length | m | 75 | ||
| Operating | Cooling | °C | -5(15) - 52 | |
| Heating | °C | -20 - 21 | ||
| SKU | PLA-M140EA-3P-WL |
| Brand | Mitsubishi Electric |
| Shipping Weight | 146.0000kg |
Warranty
Mitsubishi Heavy Industries Air-Contioners offers up to a 5-year parts and labour warranty for all of their air conditioners. Note your product might not be eligable for the full 5-year warranty. Refer to their terms and conditions.
