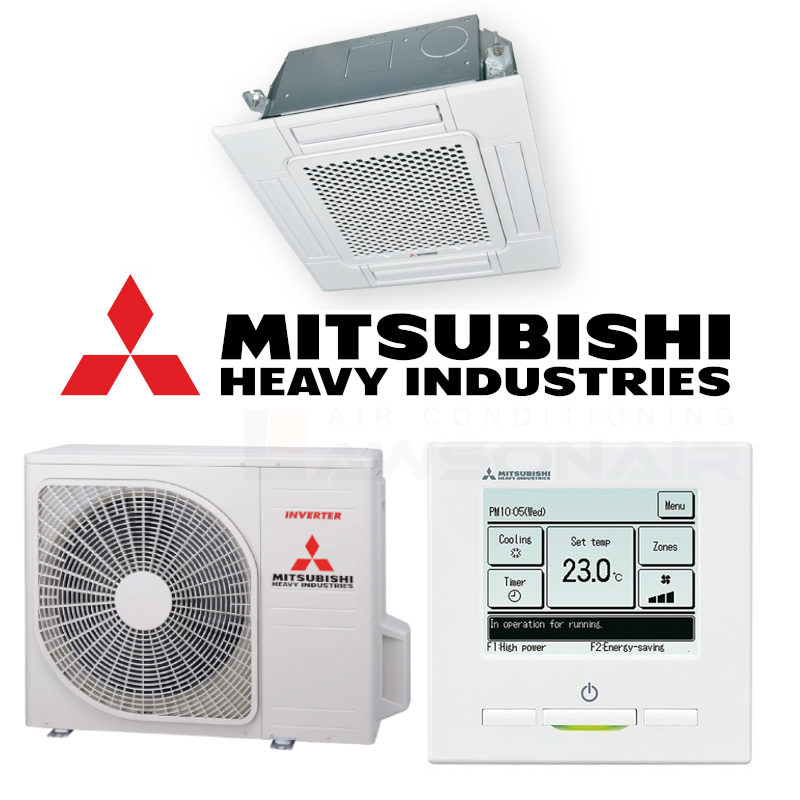

Mitsubishi Heavy (MHI) 2.5kW FDTC25ZSAVH1-RC-EXZ3A Compact Cassette Air Conditioning System
FDTC25VH1 / SRC25ZSA-W Mitsubishi Heavy (MHI) Cassette
$1,866.54 Excl GST
.jpg)
Mitsubishi Heavy Industries FDTC25ZSAVH1??2.5 kW Compact Ceiling Cassette System??
??
(FDTC25ZSAVH1-RC-EXZ3A)
| Set | FDTC25ZSAVH1 | ||

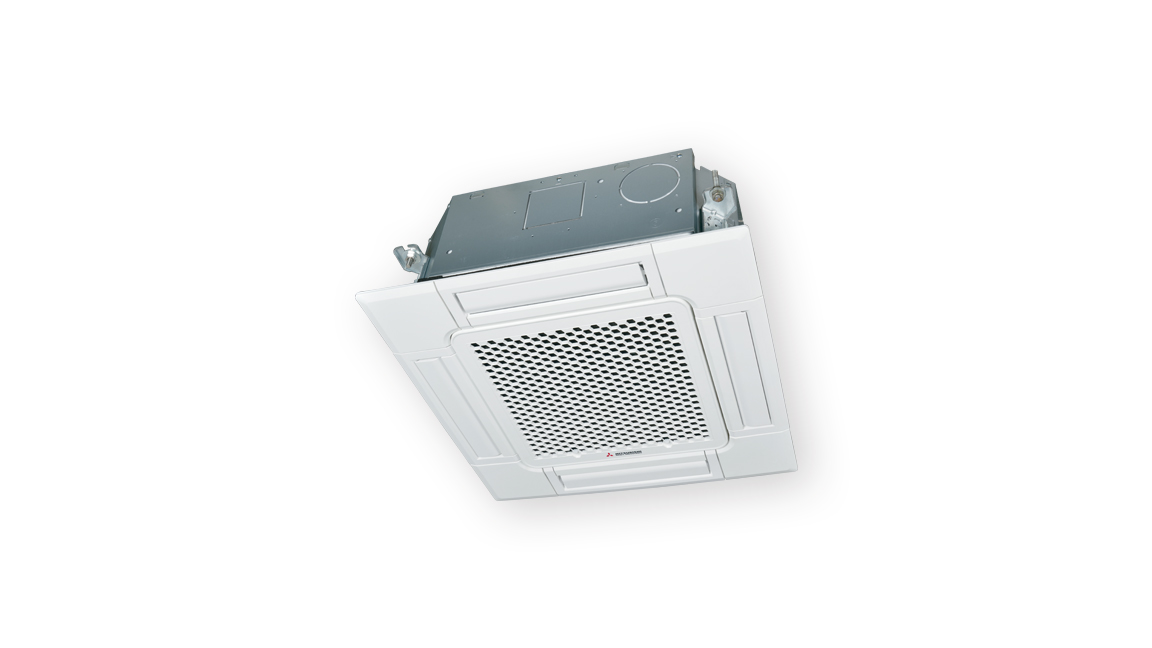

| Indoor | FDTC25VH1 | ||

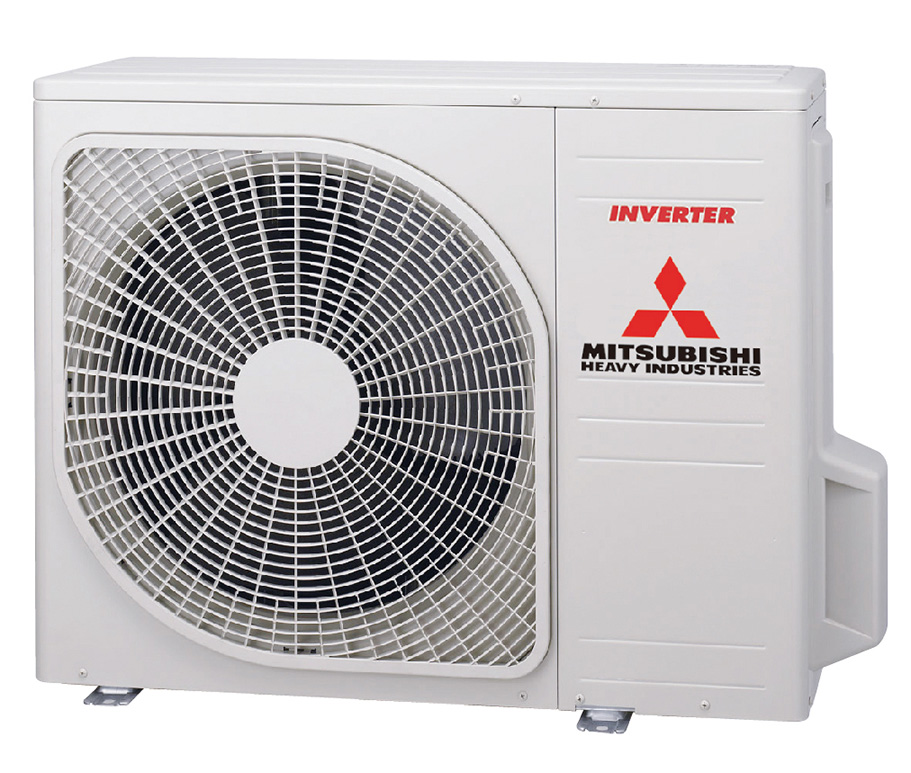

| Outdoor | SRC25ZSA-W | ||
| Power Supply | 1 Phase 240V 50Hz | ||
| Capacity | Cooling T1 | kW | 2.5 (0.9 - 3.5) |
| Heating H1 | 3.4 (0.9 - 4.6) | ||
| Input | Cooling T1 | kW | 0.54 (0.18 - 0.89) |
| Heating H1 | 0.77 (0.18 - 1.36) | ||
| Max power consumption | kW | 1.65 | |
| EER | Cooling T1 | 4.63 | |
| COP | Heating H1 | 4.42 | |
| Sound Power Level (JIS C9612) | Outdoor | dB(A) | 59 |
| Sound Pressure Level (JIS C9612) | Indoor (P-Hi/Hi/Me/Lo) | dB(A) | 38 / 34 / 30 / 27 |
| Outdoor | 47 | ||
| Airflow | Indoor (P-Hi/Hi/Me/Lo) | l/s | 142 / 125 / 117 / 100 |
| External dimensions (HxWxD) | Indoor | mm | 248 x 570 x 570 |
| Panel | 10 x 620 x 620 | ||
| Outdoor | 540 x 780 x 290 | ||
| Net weight | Indoor | kg | 14 |
| Panel | 2.5 | ||
| Outdoor | 34.5 | ||
| Refrigerant Piping | Liquid Line | mm | Ø6.35 |
| Gas Line | Ø9.52 | ||
| Connection Method | Flare Connection | ||
| Refrigerant R410A | Quantity | kg | 0.78 |
| Pre charged to pipe length | m | 15 | |
| Maximum pipe length | m | 20 | |
| SKU | FDTC25ZSAVH1-RC-EXZ3A |
| Brand | Mitsubishi Heavy Industries (MHI) |
| Shipping Weight | 51.0000kg |
Warranty
Mitsubishi Heavy Industries Air-Contioners offers up to a 5-year parts and labour warranty for all of their air conditioners. Note your product might not be eligable for the full 5-year warranty. Refer to their terms and conditions.
