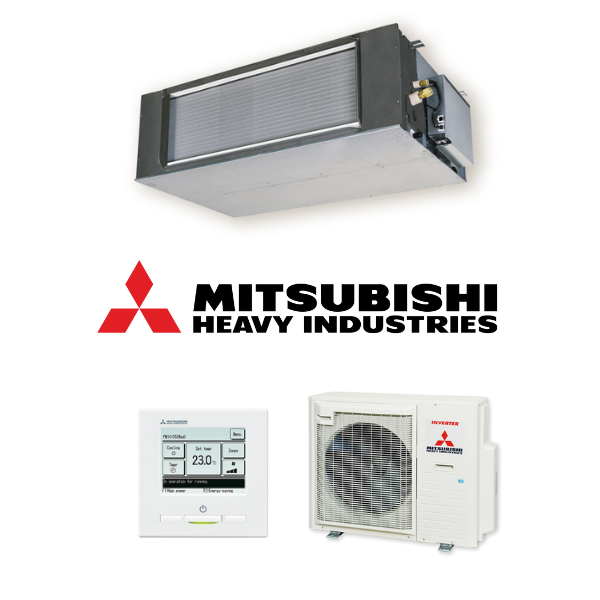

Mitsubishi Heavy Industries FDUA125VNPWVH-RC-EXZ3A 12.5kW Single Phase Ducted System- Includes Outdoor Unit FDC125VNP-W

Features:

Single phase model
Automatic operation Mode
Weekly / Sleep Timer
Silent operation

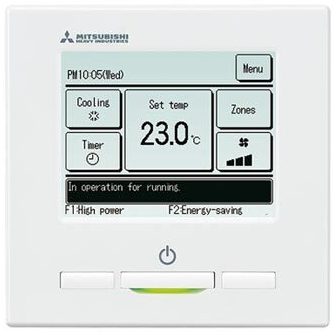

Wired and wireless control options

Condenser

R32 Refrigerant
Line-Up Expanded
Lighter, more compact outdoor unit
Quiter Operation
Ducted units compatible with Flexizone
Increased energy efficiency
Balanced airflow
Quiet operation
Built-in drain pump

(FDUA125VNPWVH-RC-EXZ3A)

Set			FDUA125VNPWVH-RC-EXZ3A

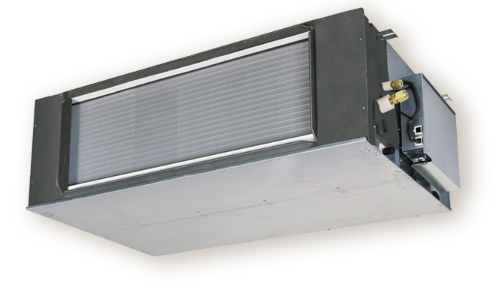

Indoor			FDUA125VH

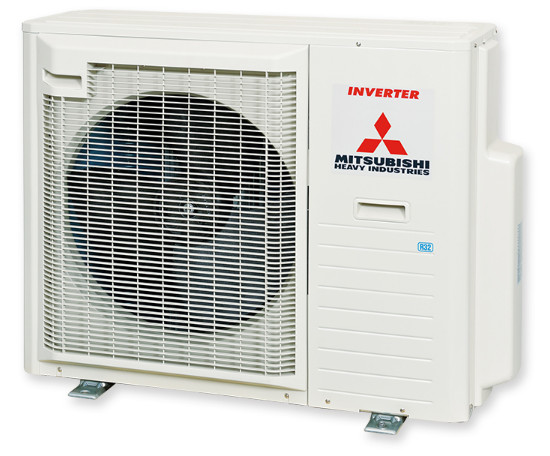

Outdoor			FDC125VNP-W
Power Suppply			1 Phase 240V 50Hz
Capacity	Cooling T1	kW	12.1 (5.0-14.0)
Capacity	Heating H1	kW	12.1 (4.0-17.0)
Input	Cooling T1	kW	3.83
Input	Heating H1	kW	3.68
Max running current		A	29
EER	Cooling T1		3.26
COP	Heating H1		3.8
Sound Power Level (JIS C9612)	Outdoor	dB(A)	70
Sound Pressure Level (JIS C9612)	Indoor (P-Hi/Hi/Me/Lo)	dB(A)	46 / 44 / 42 / 38
Sound Pressure Level (JIS C9612)	Outdoor	dB(A)	54
Airflow	Indoor (P-Hi/Hi/Me/Lo)	l/s	717 /650 / 600 / 500
External dimensions (HxWxD)	Indoor	mm	398 x 1150 x 650
External dimensions (HxWxD)	Outdoor	mm	845 x 970 x 370
Net weight	Indoor	kg	52
Net weight	Outdoor	kg	70
Air Connection	Supply	mm	348 x 898
Air Connection	Return	mm	348 x 898
Refrigerant Piping	Liquid Line	mm	Ø9.52
	Gas Line	mm	Ø15.88
	Connection Method		Flare Connection
Refrigerant	Type		R32
	Quantity	kg	2.25
	Pre charged to pipe length	m	15
	Maximum pipe length	m	30
Max Vertical Height Difference	O.U. above I.U.	m	30
Max Vertical Height Difference	O.U. below I.U.	m	15

SKU	FDUA125VNPWVH-RC-EXZ3A
Brand	Mitsubishi Heavy Industries (MHI)
Shipping Weight	122.0000kg
Shipping Width	2.120m
Shipping Height	1.243m
Shipping Length	1.020m

Warranty

Mitsubishi Heavy Industries Air-Contioners offers up to a 5-year parts and labour warranty for all of their air conditioners. Note your product might not be eligable for the full 5-year warranty. Refer to their terms and conditions.
