Mitsubishi Heavy (MHI) 8.0kW SRK80ZRA-W-Set Split Air Conditioning System

Dear Customers, our online sales will close on 23rd December 2024 at 3:00 PM and will recommence on 2nd January 2025 at 8:00 AM.

This product has been superseded by DXK28ZRA-W

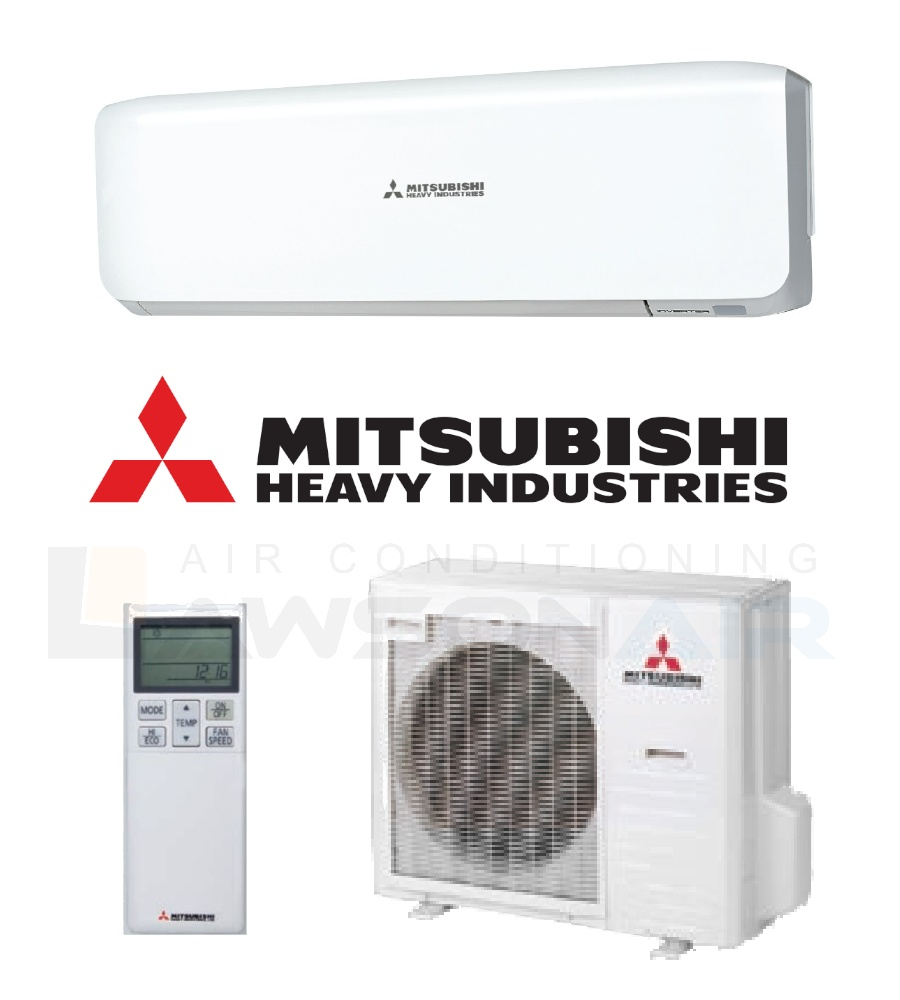

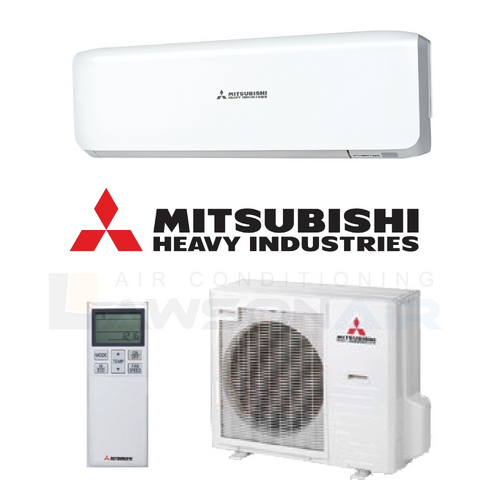

Mitsubishi Heavy Industries SRK80ZRA-W 8.0 kW Reverse Cycle Split System??- Includes Outdoor Unit??SRC80ZRA-W

Ideal for a large living or dining room or sitting room.

Features:

Advanced jet air technology delivering long reach airflow
Allergen clear system to capture and eliminate allergens
Wide range of convenient timer functions
Energy efficient R32 refrigerant
Optional Wi-Fi control

(SRK80ZRA-W-Set)

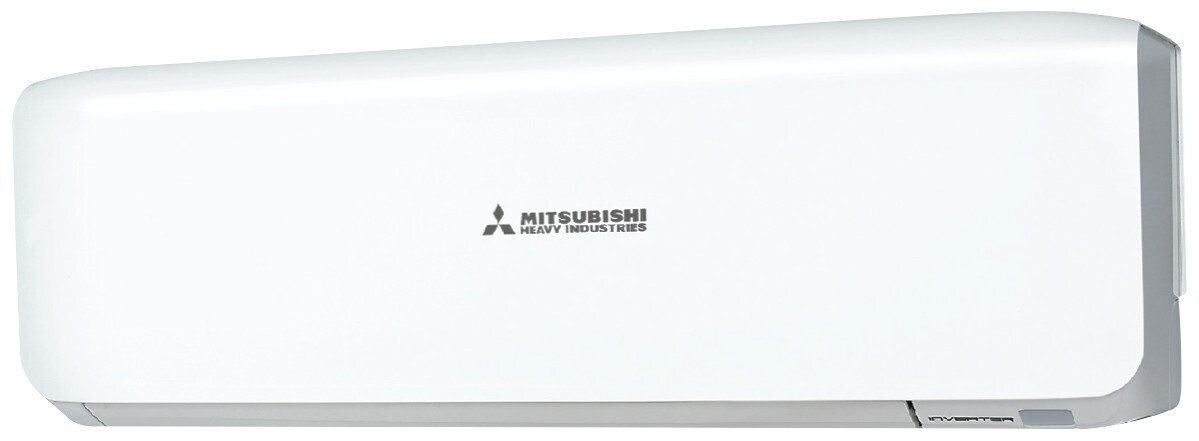

Indoor			SRK80ZRA-W

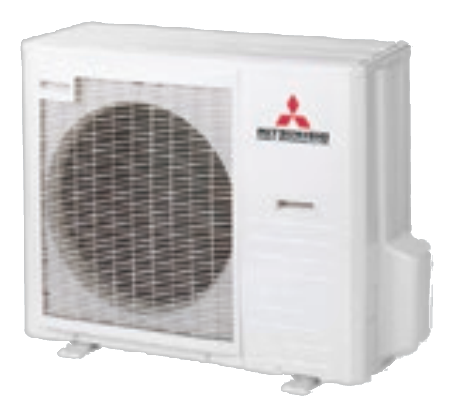

Outdoor			SRC80ZRA-W
Power Suppply			1 Phase 220-240V 50Hz
Capacity	Cooling T1	kW	8.0 (2.3 - 9.5)
Capacity	Heating H1	kW	9.0 (2.1 - 11.2)
Input	Cooling T1	kW	2.22 (0.48 - 3.1)
Input	Heating H2	kW	2.40 (0.4 - 3.4)
Max running current		A	17
Energy Label	Cooling T1	Stars	2.5
Energy Label	Heating T1	Stars	3
EER	Cooling T1		3.60
COP	Heating H1		3.75
Sound Power Level (JIS C9612)	Cooling (Outdoor)	dB(A)	68
Sound Power Level (JIS C9612)	Heating (Outdoor)	dB(A)	66
Sound Pressure Level (JIS C9612)	Cooling (Indoor)	dB(A)	46 - 43 - 38 - 25
Sound Pressure Level (JIS C9612)	Heating (Indoor)	dB(A)	47 - 41 - 36 - 29
Silent mode sound pressure level	Cooling (Outdoor)	dB(A)	44
Silent mode sound pressure level	Heating (Outdoor)	dB(A)	42
Airflow	Cooling (Indoor)	l/s	383 - 345 - 300 - 182
Airflow	Heating (Indoor)	l/s	450 - 363 - 315 - 234
External dimensions (HxWxD)	Indoor	mm	339 x 1197 x 262
External dimensions (HxWxD)	Outdoor	mm	750 x 880 (+88) x 340
Net weight	Indoor	kg	15.5
Net weight	Outdoor	kg	58
Refrigerant Piping	Liquid Line	mm	Ø6.35
	Gas Line	mm	Ø15.88
	Connection Method		Flare Connection
Refrigerant R32	Quantity	kg	1.6
	Attached length of piping	m	Liquid line : 0.78 / Gas line : 0.71
	Pre charged to pipe length	m	15
	Additional charge	g / m	25
	Maximum charge	kg	1.975
Outdoor air temperature	Cooling	C	-15 to 46
Outdoor air temperature	Heating	C	-15 to 24

SKU	SRK80ZRA-W-Set
Brand	Mitsubishi Heavy Industries (MHI)
Shipping Weight	73.5000kg

Warranty

Mitsubishi Heavy Industries Air-Contioners offers up to a 5-year parts and labour warranty for all of their air conditioners. Note your product might not be eligable for the full 5-year warranty. Refer to their terms and conditions.
