Mitsubishi Heavy (MHI) 9.5kW SRK95ZRA-W-Set Split Air Conditioning System

Calculate Shipping

Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm.

Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Sydney Warehouse. Mon - Fri 8am - 4pm.

Dear Customers, our online sales will close on 23rd December 2024 at 3:00 PM and will recommence on 2nd January 2025 at 8:00 AM.

This product has been superseded by DXK33ZRA-W

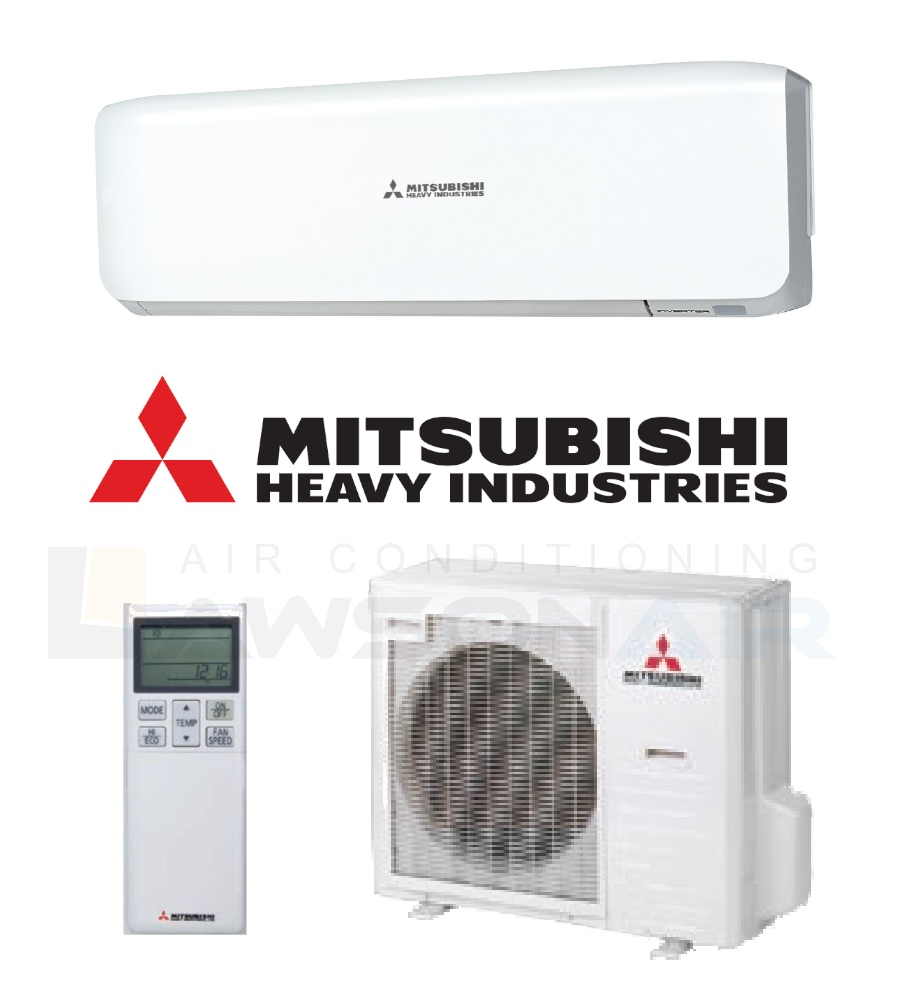

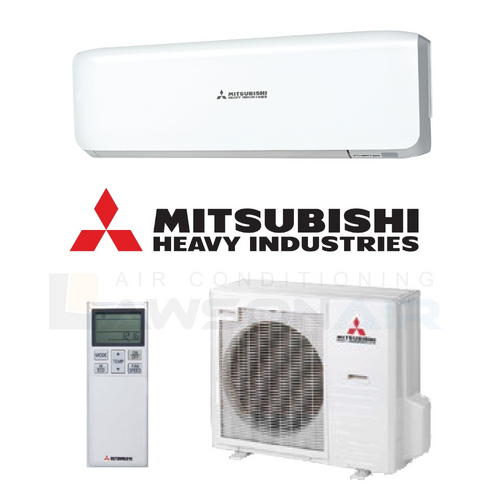

Mitsubishi Heavy Industries SRK95ZRA-W 9.2 kW Reverse Cycle Split System - Includes Outdoor Unit SRC95ZRA-W

Ideal for a large living or dining room or sitting room.

Features:

Advanced jet air technology delivering long reach airflow
Allergen clear system to capture and eliminate allergens
Wide range of convenient timer functions
Energy efficient R32 refrigerant
Optional Wi-Fi control

(SRK95ZRA-W-Set)

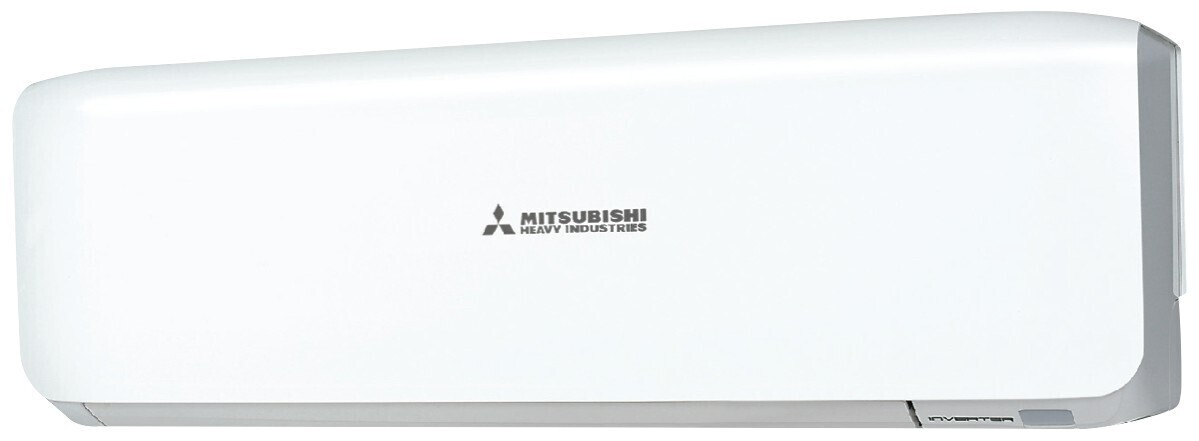

Indoor			SRK95ZRA-W

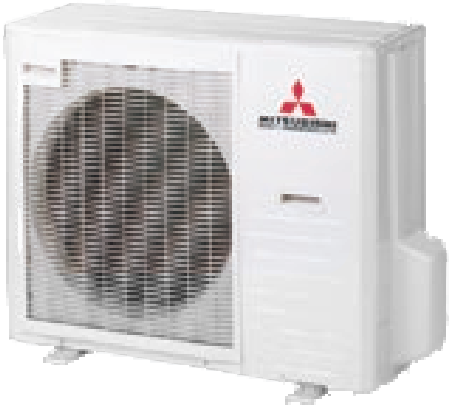

Outdoor			SRC95ZRA-W
Power Suppply			1 Phase 220-240V 50Hz
Capacity	Cooling T1	kW	9.5 (2.5 - 10.6)
Capacity	Heating H1	kW	10.3 (3.2 - 11.9)
Input	Cooling T1	kW	2.56
Input	Heating H2	kW	2.64
Max running current		A	17.5
Energy Label	Cooling T1	Stars	2.5
Energy Label	Heating T1	Stars	3
EER	Cooling T1		3.71
COP	Heating H1		3.9
Sound Power Level (JIS C9612)	Cooling (Outdoor)	dB(A)	69
Sound Power Level (JIS C9612)	Heating (Outdoor)	dB(A)	70
Sound Pressure Level (JIS C9612)	Cooling (Indoor)	dB(A)	48 - 45 - 40 - 26
Sound Pressure Level (JIS C9612)	Heating (Indoor)	dB(A)	48 - 42 - 37 - 29
Silent mode sound pressure level	Cooling (Outdoor)	dB(A)	50
Silent mode sound pressure level	Heating (Outdoor)	dB(A)	49
Airflow	Cooling (Indoor)	l/s	408 - 355 - 293 - 173
Airflow	Heating (Indoor)	l/s	458 - 386 - 318 - 227
External dimensions (HxWxD)	Indoor	mm	339 x 1197 x 262
External dimensions (HxWxD)	Outdoor	mm	845 x 970 (+89) x 370
Net weight	Indoor	kg	16.5
Net weight	Outdoor	kg	70.5
Refrigerant Piping	Liquid Line	mm	Ø9.52
	Gas Line	mm	Ø15.88
	Connection Method		Flare Connection
Refrigerant R32	Quantity	kg	2
	Attached length of piping	m	Liquid line : 0.78 / Gas line : 0.71
	Pre charged to pipe length	m	15
	Additional charge	g / m	54
	Maximum charge	kg	2.81
Outdoor air temperature	Cooling	C	-15 to 46
Outdoor air temperature	Heating	C	-15 to 24

SKU	SRK95ZRA-W-Set
Brand	Mitsubishi Heavy Industries (MHI)
Shipping Weight	87.0000kg

Warranty

Mitsubishi Heavy Industries Air-Contioners offers up to a 5-year parts and labour warranty for all of their air conditioners. Note your product might not be eligable for the full 5-year warranty. Refer to their terms and conditions.
