Mitsubishi Heavy (MHI) 10.0kW FDT100AVNPWVH-RC-EXZ3A Cassette Air Conditioning System [Colour: Black]
FDT100VNPWVH_BB Mitsubishi Heavy (MHI) Cassette
$3,358.18 Excl GST
Dear Customers, our online sales will close on 23rd December 2024 at 3:00 PM and will recommence on 2nd January 2025 at 8:00 AM.
.jpg)

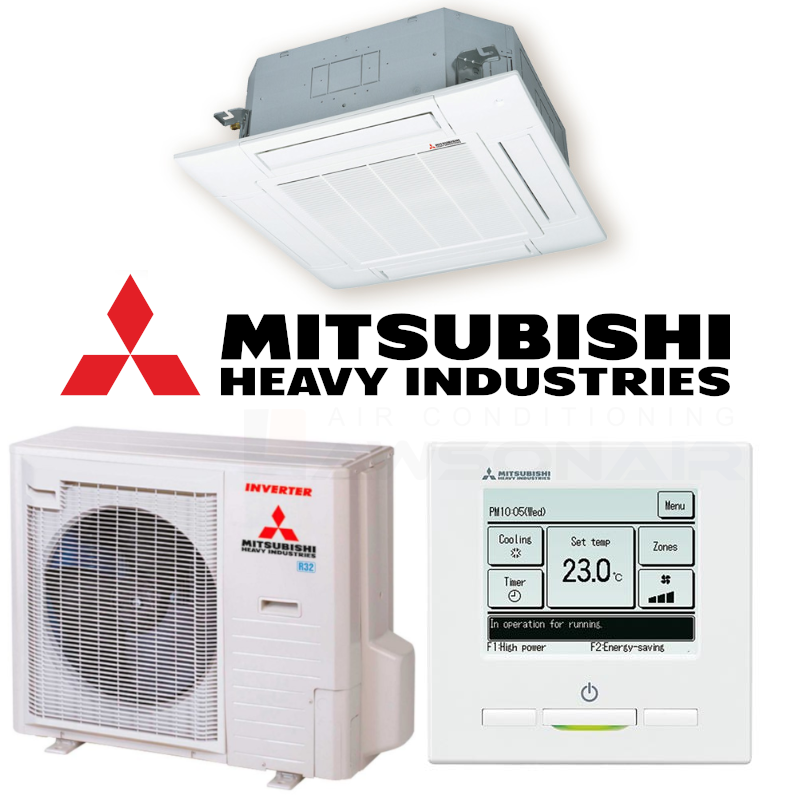

Mitsubishi Heavy Industries FDT100AVNPWVH 10.0kW Ceiling Cassette System 1 Phase
Due to the unique design of the DC fan motors the MHI ceiling cassettes are some of the slimmest on the market, allowing for ease of installation. A versatile solution for a wide variety of commercial spaces, such as fitness centres, retail shops, small to medium offices, cafes, restaurants and more, the single and three-phase models range in capacity from 2.5kW to 14kW.
(FDT100AVNPWVH-RC-EXZ3A)
| Set | FDT100AVNPWVH | ||

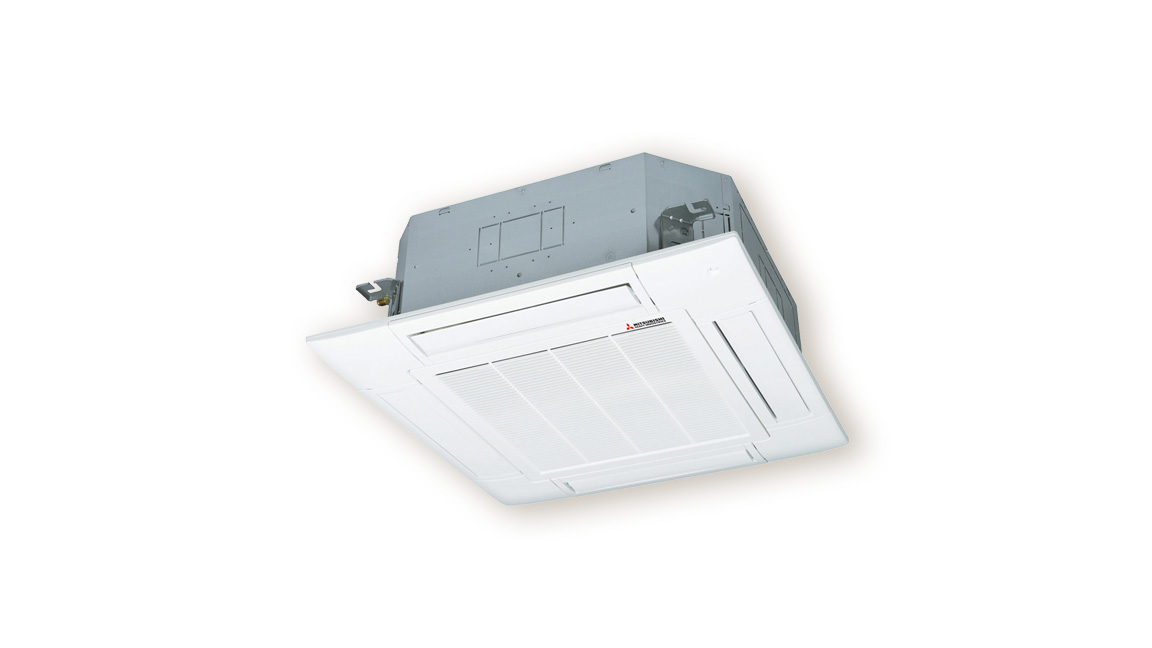

| Indoor | FDT100VH | ||

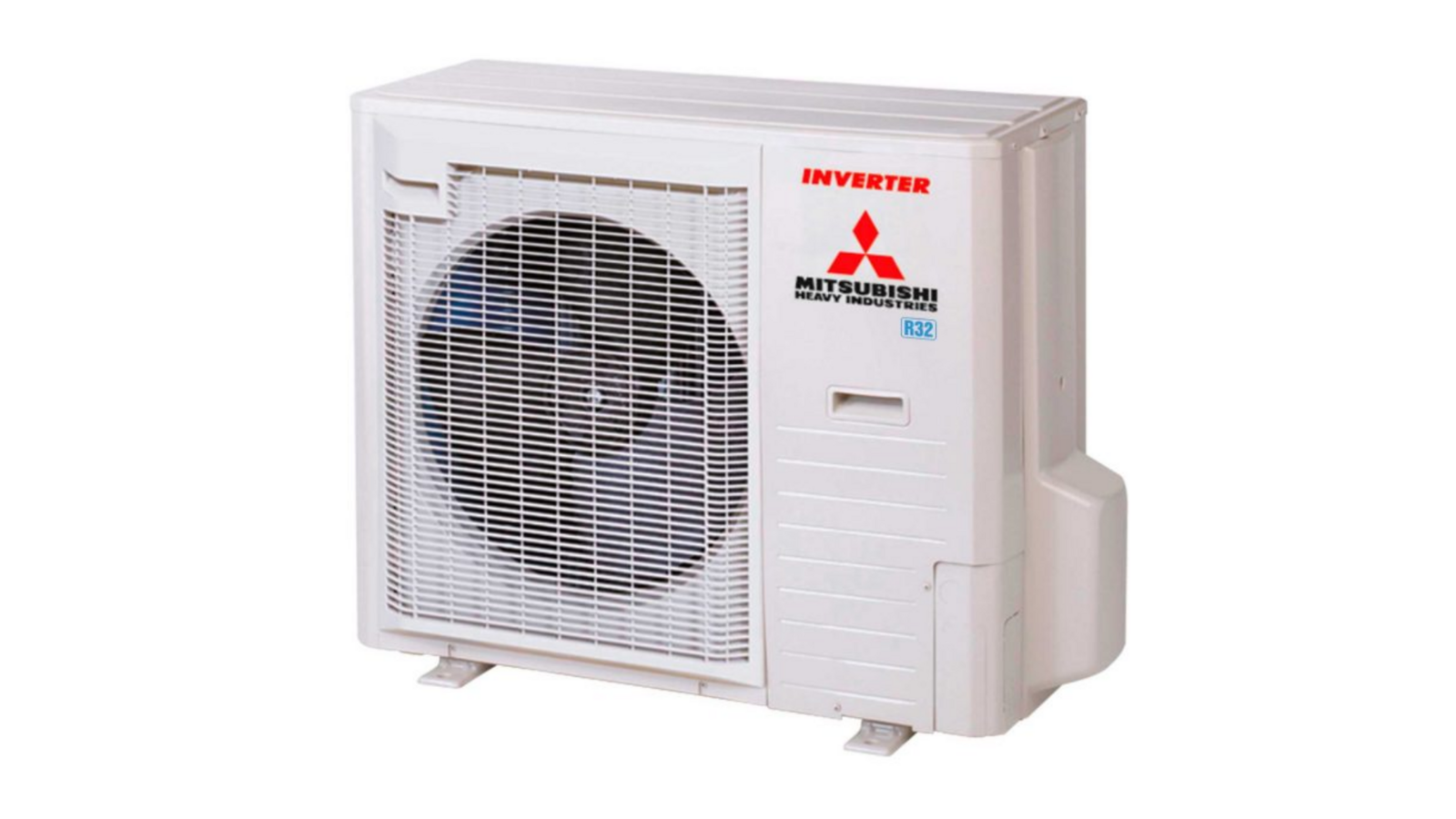

| Outdoor | FDCA100VNP-W | ||
| Power Supply | 1 Phase 240V 50Hz | ||
| Capacity | Cooling T1 | kW | 10.0 (2.8 - 11.2) |
| Heating H1 | 11.2 (2.5 - 12.5) | ||
| Input | Cooling T1 | kW | 2.76 |
| Heating H1 | 2.84 | ||
| Max Power Consumption | kW | 4.60 | |
| EER | Cooling T1 | 3.62 | |
| COP | Heating H1 | 3.94 | |
| Sound Power Level (JIS C9612) | Outdoor | dB(A) | 70 |
| Sound Pressure Level (JIS C9612) | Indoor (P-Hi/Hi/Me/Lo) | dB(A) | 48 / 39 / 37 / 31 |
| Outdoor | 57 | ||
| Airflow | Indoor (P-Hi/Hi/Me/Lo) | l/s | 616 / 433 / 383 / 283 |
| External dimensions (HxWxD) | Indoor | mm | 298 x 840 x 840 |
| Panel | 35 x 950 x 950 | ||
| Outdoor | 845 x 970 x 370 | ||
| Net weight | Indoor | kg | 25 |
| Panel | 5 | ||
| Outdoor | 70 | ||
| Refrigerant Piping | Liquid Line | mm | Ø9.52 |
| Gas Line | Ø15.88 | ||
| Connection Method | Flare Connection | ||
| Refrigerant R410A | Quantity | kg | 2.55 |
| Pre charged to pipe length | m | 15 | |
| Maximum pipe length | m | 30 | |
| SKU | FDT100AVNPWVH-RC-EXZ3A |
| Brand | Mitsubishi Heavy Industries (MHI) |
| Shipping Weight | 87.0000kg |
Warranty
Mitsubishi Heavy Industries Air-Conditioners offers up to a 5-year parts and labour warranty for all of their air conditioners. Note your product might not be eligable for the full 5-year warranty. Refer to their terms and conditions.
