Mitsubishi Heavy (MHI) 10.0kW FDU100AVSAWVH-RC-EXZ3A Ducted Air Conditioning System
FDU100VH / FDCA100VSA-W Mitsubishi Heavy (MHI) Ducted
$3,468.18 Excl GST
.jpg)

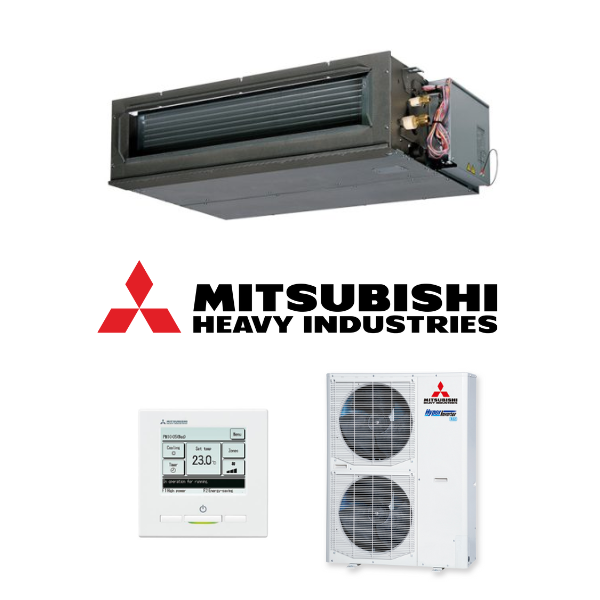

Mitsubishi Heavy Industries FDU100AVSAWVH 10.0kW Three Phase Ducted System - Includes Outdoor Unit FDCA100VSA-W
The FDU series of ducted air conditioning systems are a quiet and discreet climate solution for your entire home. Ranging from 7.1kW up to 14kW, the FDU series incorporates a compact design, a range of convenient features and functions including high power mode, silent mode and several timer and scheduling functions.
Key Features:
- Slimline design
- Three Phase Model
- High Power Mode for rapid cooling and heating
- Weekly & Sleep timers
- Silent operation
- Dry operation to reduce humidity
(FDU100AVSAWVH-RC-EXZ3A)
| System Name | FDU100AVSAWVH | FDU125AVSXWVH | FDU140AVSXWVH | |||
|---|---|---|---|---|---|---|

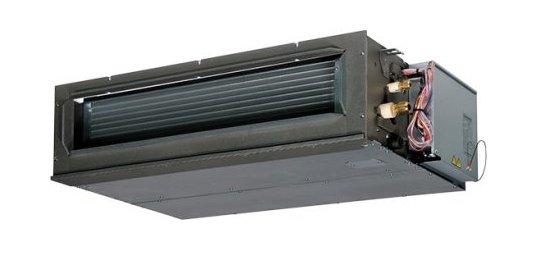

| Indoor Unit | FDU100VH | FDU125VH | FDU140VH | |||

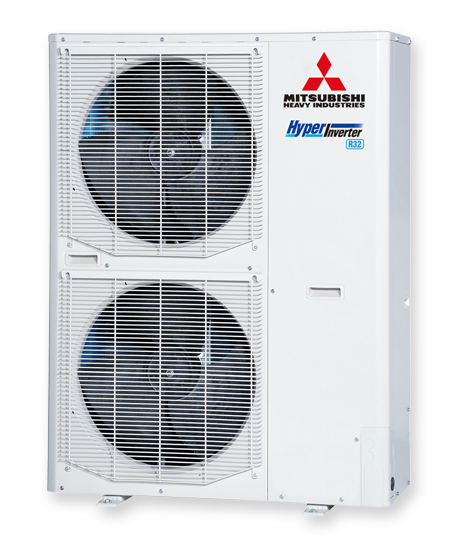

| Outdoor Unit | FDCA100VSA-W | FDCA125VSX-W | FDCA140VSX-W | |||
| Power Supply | 3 Phase, 380 ~ 415V, 50Hz | |||||
| Cooling Capacity (kW) | 10.0 | 12.5 | 14.0 | |||
| Heating Capacity (kW) | 11.2 | 14.0 | 16.0 | |||
| Rated Power Input (Cool/Heat) (kW) | 2.99 / 2.66 | 3.49 / 3.61 | 4.22 / 4.22 | |||
| EER/COP | 3.35 / 4.21 | 3.58 / 3.88 | 3.32 / 3.79 | |||
| Duct Sizes (Supply/Return) (mm) | 170 x 1200 / 235 x 1280 | |||||
| Max External Static Pressure (Pa) | 200 | |||||
| Refrigerant Type/Amount (kg) | R32 / 3.3 | R32 / 4.0 | ||||
| Max Pipe Length (m) | 50 | 100 | ||||
| Max Level Difference (m) | I.D.U Higher 15 / O.D.U Higher 50 | |||||
| Indoor Dimensions (HxWxD) (mm) | 280 x 1370 x 740 | |||||
| Outdoor Dimensions (HxWxD) (mm) | 845 x 970 x 370 | 1300 x 970 x 370 | ||||
| Indoor Weight (kg) | 54 | |||||
| Outdoor Weight (kg) | 78 | 99 | ||||
| Pipe Sizes (mm) (Liquid/Gas) | 9.52 / 15.88 | |||||
| SKU | FDU100AVSAWVH-RC-EXZ3A |
| Brand | Mitsubishi Heavy Industries (MHI) |
| Shipping Weight | 132.0000kg |
| Shipping Cubic | 0.587135000m3 |
| Unit Of Measure | ea |
Warranty
Mitsubishi Heavy Industries Air-Contioners offers up to a 5-year parts and labour warranty for all of their air conditioners. Note your product might not be eligable for the full 5-year warranty. Refer to their terms and conditions.
