Mitsubishi Heavy (MHI) 10.0kW FDU100VNPWVH-RC-EXZ3A Ducted Air Conditioning System
FDU100VH / FDC100VNP-W Mitsubishi Heavy (MHI) Ducted
$2,656.36 Excl GST
.jpg)
NOTE: Product has been Superceded by the FDU100AVNPWVH-RC-EXZ3A 10.0kW Single Phase Ducted System

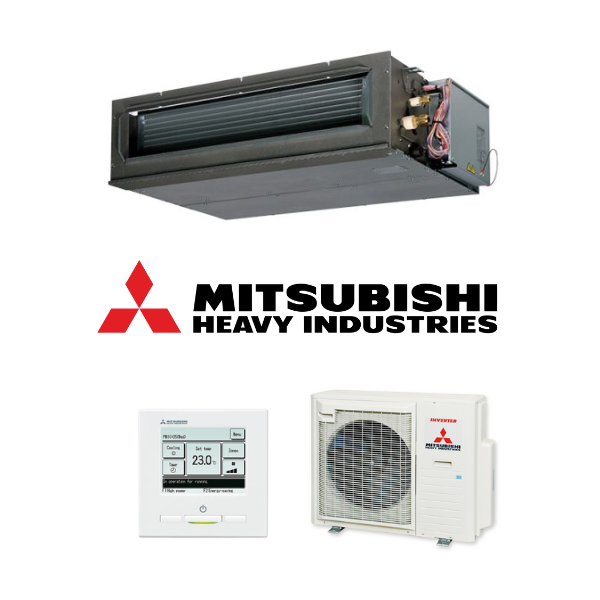

Mitsubishi Heavy Industries FDU100VNPWVH-RC-EXZ3A 10.0kW Single Phase Ducted System - Includes Outdoor Unit FDC100VNP-W
Features:
- Single phase model
- Automatic operation Mode
- Weekly / Sleep Timer
- Silent operation

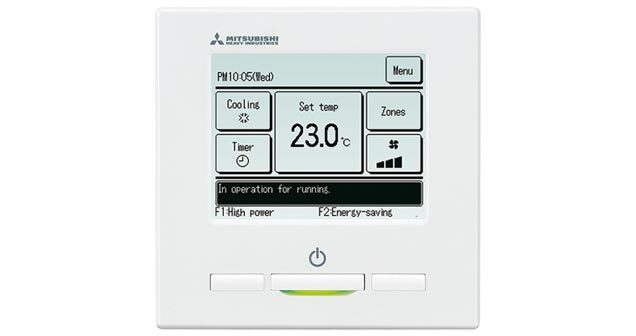

- Wired and wireless control options
(FDU100VNPWVH-RC-EXZ3A)
| Set | FDU100VNPWVH-RC-EXZ3A | ||

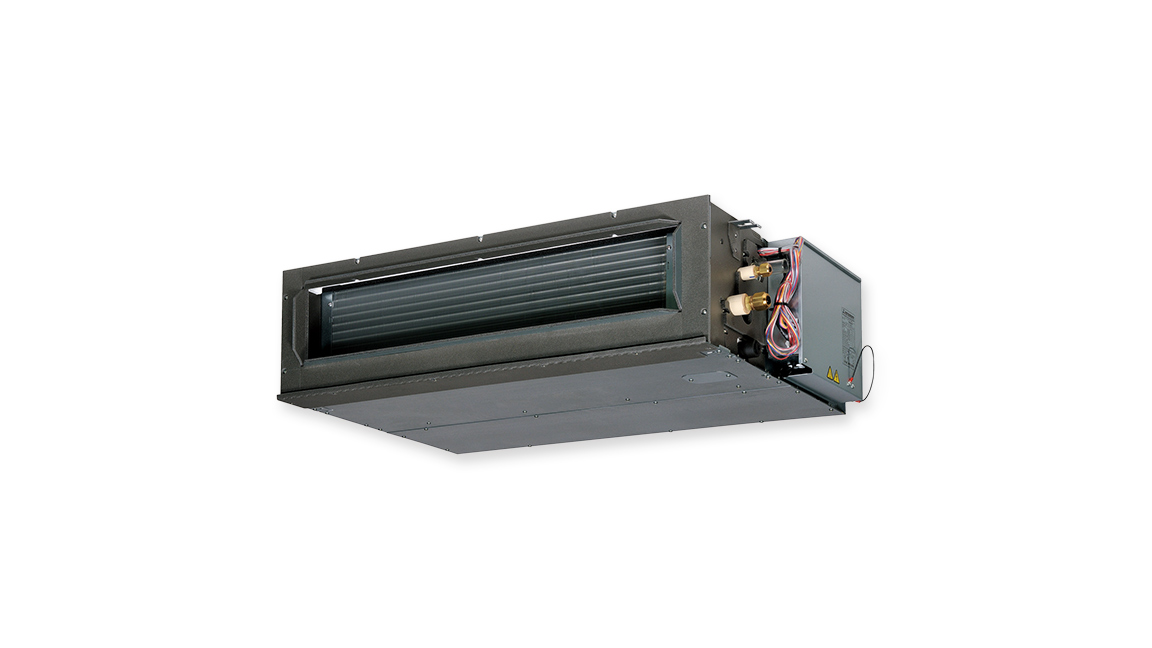

| Indoor | FDU100VH | ||

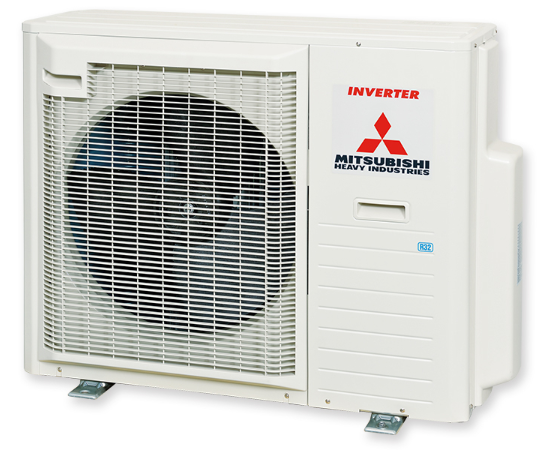

| Outdoor | FDC100VNP-W | ||
| Power Suppply | 1 Phase 250V 50Hz | ||
| Capacity | Cooling T1 | kW | 10 (2.1-10.2) |
| Heating H1 | 10 (1.7-10.4) | ||
| Input | Cooling T1 | kW | 3.08 |
| Heating H1 | 2.45 | ||
| Max running current | A | 19 | |
| EER | Cooling T1 | 3.25 | |
| COP | Heating H1 | 4.08 | |
| Sound Power Level (JIS C9612) | Outdoor | dB(A) | 68 |
| Sound Pressure Level (JIS C9612) | Indoor (P-Hi/Hi/Me/Lo) | dB(A) | 44 / 38 / 36 / 30 |
| Outdoor | 56 | ||
| Airflow | Indoor (P-Hi/Hi/Me/Lo) | l/s | 600 / 467 / 417 / 317 |
| External dimensions (HxWxD) | Indoor | mm | 280 x 1370 x 740 |
| Outdoor | 750 x 880(+88) x 340 | ||
| Net weight | Indoor | kg | 54 |
| Outdoor | 57 | ||
| Air Connection | Supply | mm | 170 x 1200 |
| Return | 235 x 1280 | ||
| Refrigerant Piping | Liquid Line | mm | Ø6.35 |
| Gas Line | Ø15.88 | ||
| Connection Method | Flare Connection | ||
| Refrigerant | Type | R32 | |
| Quantity | kg | 1.7 | |
| Pre charged to pipe length | m | 15 | |
| Maximum pipe length | m | 30 | |
| Max Vertical Height Difference | O.U. above I.U. | m | 20 |
| O.U. below I.U. | 20 | ||
| SKU | FDU100VNPWVH-RC-EXZ3A |
| Brand | Mitsubishi Heavy Industries (MHI) |
| Shipping Weight | 111.0000kg |
| Unit Of Measure | ea |
Warranty
Mitsubishi Heavy Industries Air-Contioners offers up to a 5-year parts and labour warranty for all of their air conditioners. Note your product might not be eligable for the full 5-year warranty. Refer to their terms and conditions.
