Mitsubishi Heavy (MHI) 10.0kW FDUA100AVSAWVH-RC-EXZ3A Ducted Air Conditioning System

Calculate Shipping

Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm.

Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Sydney Warehouse. Mon - Fri 8am - 4pm.

Dear Customers, our online sales will close on 23rd December 2024 at 8:00 AM and will recommence on 2nd January 2025 at 8:00 AM.

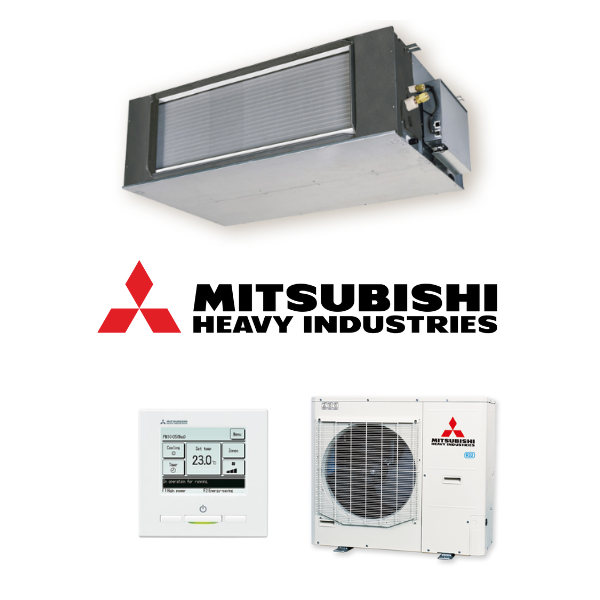

Mitsubishi Heavy Industries FDUA100AVSAWVH-RC-EXZ3A 10.0kW Three Phase Ducted System - Includes Outdoor Unit FDCA100VSA-W

The FDUA series of ducted air conditioning systems are a quiet and discreet climate solution for your entire home. Ranging from 10.0kW up to 20kW, the FDUA series incorporates a range of convenient features and functions including high power mode, silent mode, eco mode and several timer and scheduling functions.

Key Features:

Three phase model
Automatic operation Mode
Weekly / Sleep Timer
Silent operation

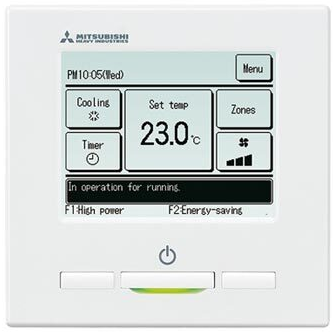

Wired and wireless control options
High Power Mode for rapid cooling & heating
Dry operation to reduce humidity
Economy mode to reduce power consumption

(FDUA100AVSAWVH-RC-EXZ3A)

System Name	FDUA100AVSAWVH	FDUA125AVSXWVH	FDUA140AVSXWVH	FDUA160AVSAWVH	FDUA200AVSAWVH	FDUA250AVSAWVH

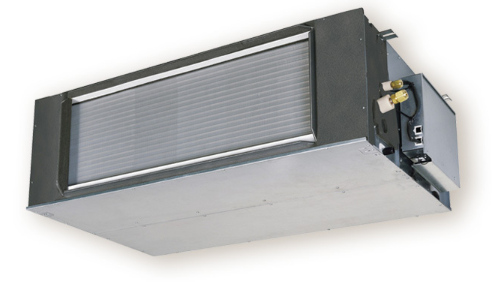

Indoor Unit	FDUA100VH	FDUA125VH	FDUA140VH	FDUA160VH	FDUA200VH	FDUA250VH

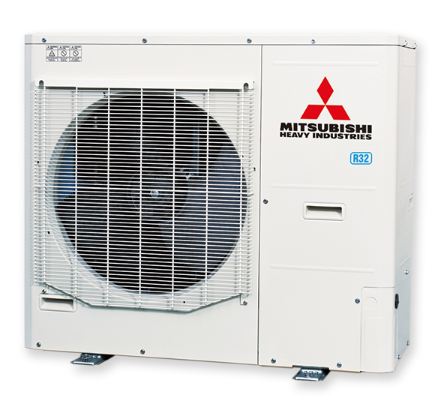

Outdoor Unit	FDCA100VSA-W	FDCA125VSX-W	FDCA140VSX-W	FDCA160VSA-W	FDCA200VSA-W	FDCA250VSA-W
Power Supply	3 Phase, 380 ~ 415V, 50Hz
Cooling Capacity (kW)	10.0	12.5	14.0	16.0	20.0	23.5
Heating Capacity (kW)	11.2	14.0	16.0	18.0	22.4	28.0
Rated Power Input (Cool/Heat) (kW)	3.05 / 2.87	3.83 / 3.86	4.02 / 4.19	4.68 / 4.60	5.78 / 5.44	7.70 / 7.70
EER/COP	3.28 / 3.90	3.26 / 3.80	3.48 / 3.82	3.42 / 3.91	3.46 / 4.12	3.16 / 3.67
Duct Sizes (Supply/Return) (mm)	348 x 898 / 348 x 898		298 x 1064 / 2 X dia400		250 x 1450 / 250 x 1450
Max External Static Pressure (Pa)	200		150		200
Refrigerant Type/Amount (kg)	R32 / 3.3	R32 / 4.0		R32 / 5.1
Max Pipe Length (m)	50	100		70
Max Level Difference (m)	I.D.U Higher 15 / O.D.U Higher 50	I.D.U Higher 15 / O.D.U Higher 30				I.D.U Higher 15 / O.D.U Higher 50
Indoor Dimensions (HxWxD) (mm)	398 x 1150 x 650		398 x 1450 x 930		379 x 1600 x 893
Outdoor Dimensions (HxWxD) (mm)	845 x 970 x 370	1300 x 970 x 370		1505 x 970 x 370
Indoor Weight (kg)	54	52	66		88
Outdoor Weight (kg)	78	99		145
Pipe Sizes (mm) (Liquid/Gas)	9.52 / 15.88			12.7 / 22.2

SKU	FDUA100AVSAWVH-RC-EXZ3A
Brand	Mitsubishi Heavy Industries (MHI)
Shipping Weight	132.0000kg
Unit Of Measure	ea

Warranty

Mitsubishi Heavy Industries Air-Conditioners offers up to a 5-year parts and labour warranty for all of their air conditioners. Note your product might not be eligable for the full 5-year warranty. Refer to their terms and conditions.
