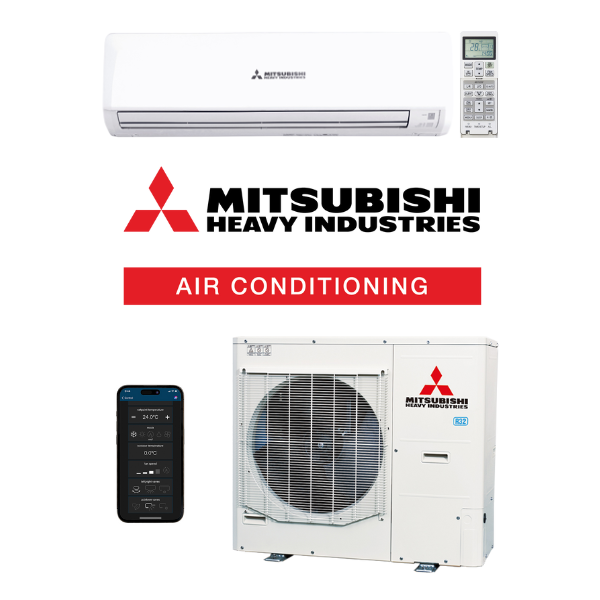

Mitsubishi Heavy (MHI) 10.0kW SRK100AVNAWZR Split Air Conditioning System

Calculate Shipping

Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm.

Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Sydney Warehouse. Mon - Fri 8am - 4pm.

Dear Customers, our online sales will close on 23rd December 2024 at 3:00 PM and will recommence on 2nd January 2025 at 8:00 AM.

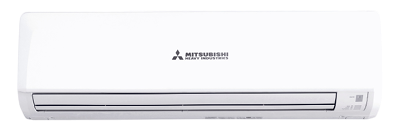

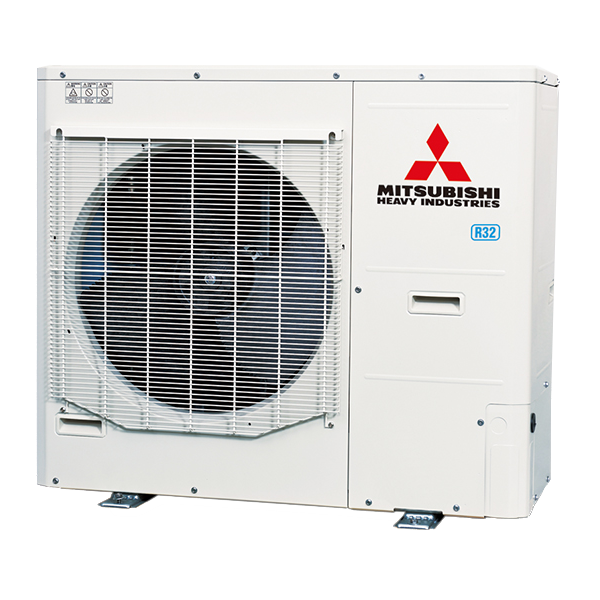

Mitsubishi Heavy Industries SRK100ZR-W 10.0kW Reverse Cycle Split System - Includes Outdoor Unit FDCA100VNA-W

Ideal for a large living or dining room or sitting room.

Features:

Allergen clear system to capture and eliminate allergens

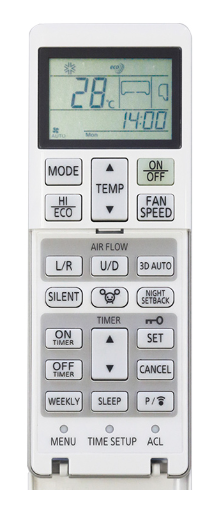

Wide range of convenient timer functions
Energy efficient R32 refrigerant

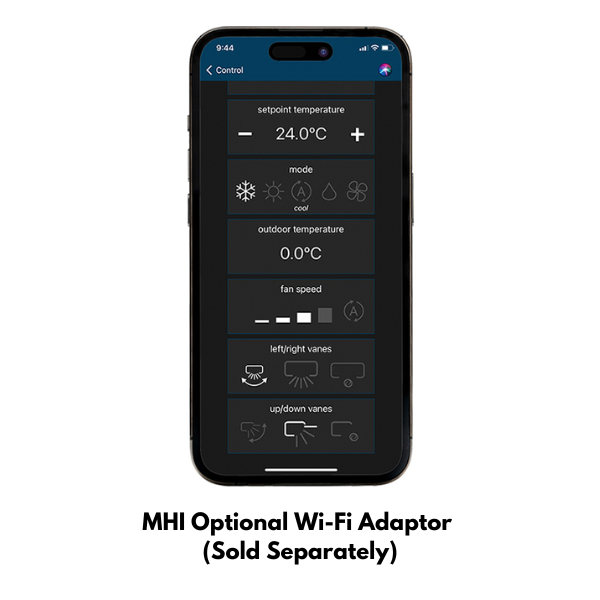

Optional Wi-Fi control

(SRK100AVNAWZR)

System Name	DXK21ZRA-W-SET	DXK24ZRA-W-SET	SRK24YRA-W-SET	DXK28ZRA-W-SET	DXK33ZRA-W-SET	SRK100AVNAWZR	SRK100AVSAWZR
Indoor Unit	DXK21ZRA-W	DXK24ZRA-W	SRK24YRA-W	DXK28ZRA-W	DXK33ZRA-W	SRK100ZR-W	SRK100ZR-W
Outdoor Unit	DXC21ZRA-W	DXC24ZRA-W	SRC24YRA-W	DXC28ZRA-W	DXC33ZRA-W	FDCA100VNA-W	FDCA100VSA-W
Power Supply	1 Phase, 240V, 50Hz						3 Phase, 380 ~ 415V, 50Hz
Cooling Capacity (kW)	6.3	7.1	7.1	8.0	9.5	10.0	10.0
Heating Capacity (kW)	7.1	8.0	-	9.0	10.3	11.2	11.2
EER/COP	3.99 / 4.44	3.86 / 3.96	3.86 / -	3.60 / 3.75	3.71 / 3.90	3.13 / 3.68	3.13 / 3.68
Outdoor Sound Power dB(A)	64	65		68	69
Refrigerant Type/Amount (kg)	R32 / 1.25	R32 / 1.6			R32 / 2.0	R32 / 3.3
Max Pipe Length (m)	30					50
Max Level Difference (m)	I.D.U Higher 20 / O.D.U Higher 20					I.D.U Higher 15 / O.D.U Higher 50
Indoor Dimensions (HxWxD) (mm)	339 x 1197 x 262
Outdoor Dimensions (HxWxD) (mm)	640 x 800(+71) x 290	750 x 880(+88) x 340			845 x 970(+89) x 370
Indoor Weight (kg)	15.5				16.5
Outdoor Weight (kg)	45	58			70.5	77	78
Pipe Sizes (mm) (Liquid/Gas)	6.35 / 12.7	6.35 / 15.88			9.52 / 15.88

SKU	SRK100AVNAWZR
Brand	Mitsubishi Heavy Industries (MHI)
Shipping Weight	93.5000kg
Shipping Cubic	0.409586000m3
Unit Of Measure	ea

Warranty

Mitsubishi Heavy Industries offers up to a 5-year parts and labour warranty for all of their Air Conditioners. Note your product might not be eligible for the full 5-year warranty. Refer to their terms and conditions.
