Mitsubishi Heavy (MHI) 3.5kW SRK13YSA-W-Set Split Cooling Only Air Conditioning System

Dear Customers, our online sales will close on 23rd December 2024 at 3:00 PM and will recommence on 2nd January 2025 at 8:00 AM.

NOTE: This is a Special Order Product. Please send an email for more information.

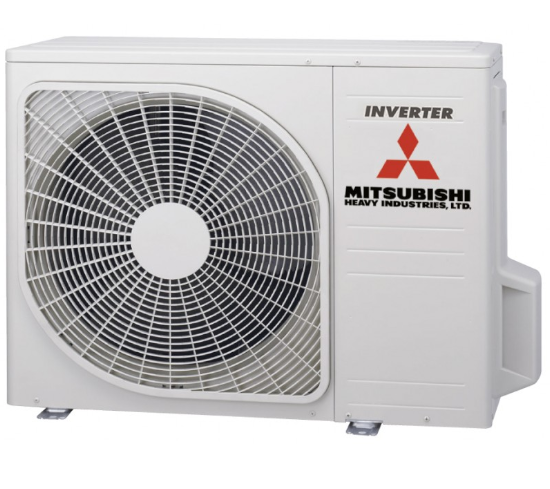

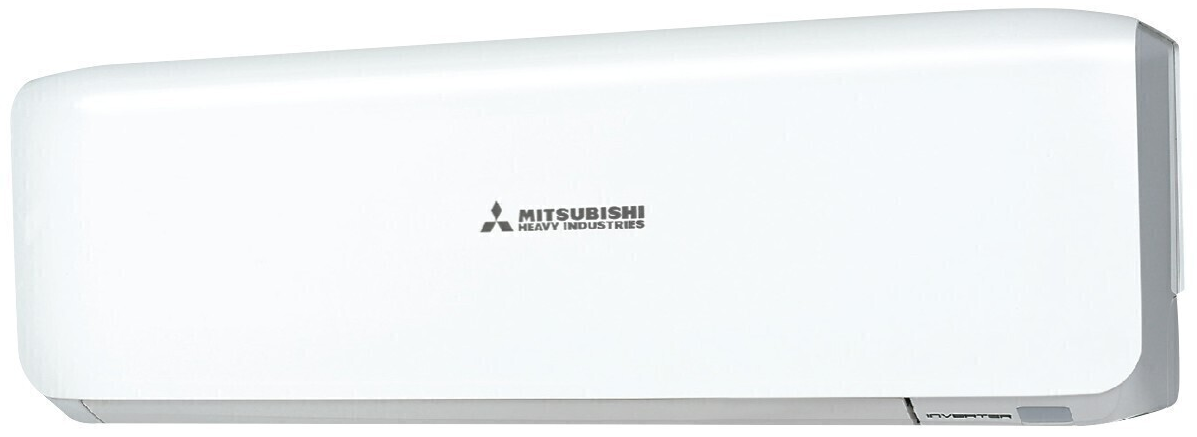

Mitsubishi Heavy Industries SRK13YSA 3.5kW Cooling Only Split System - Includes Outdoor Model SRC13YSA-W

The 3.5kW Avanti cool only split system is designed for hotter climates or situations where a reverse cycle unit may not be required. The 3.5kW Avanti cool only split system unit boasts an efficient 4-star energy rating and comes with all the advanced features and functions that the Avanti?? series is known for making it the ideal solution for cooling smaller spaces.

Key Features:

Cool only model
Stylish and Modern Design
3D Auto airflow for effective and even air distribution
R32 refrigerant for higher energy efficiencies

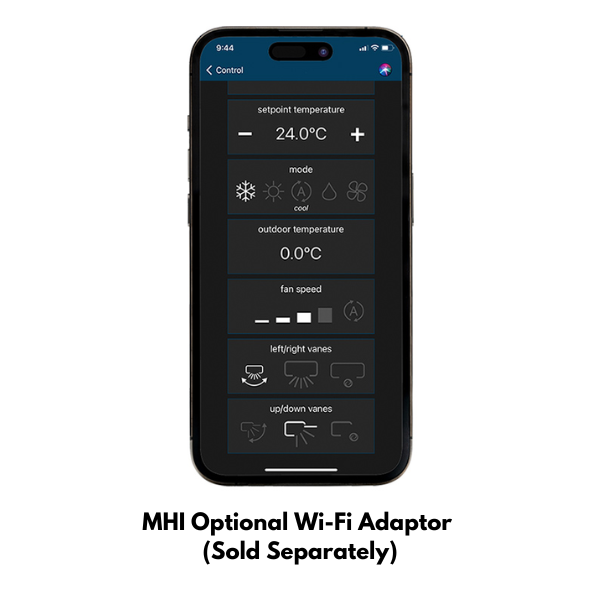

Optional Wi-Fi control

(SRK13YSA-W-Set)

System Name	DXK06ZSA-W-SET	DXK09ZSA-W-SET	DXK12ZSA-W-SET	DXK18ZSA-W-SET	SRK10YSA-W-SET	SRK13YSA-W-SET	SRK18YSA-W-SET
Indoor Unit	DXK06ZSA-W	DXK09ZSA-W	DXK12ZSA-W	DXK18ZSA-W	SRK10YSA-W	SRK13YSA-W	SRK18YSA-W
Outdoor Unit	DXC06ZSA-W	DXC09ZSA-W	DXC12ZSA-W	DXC18ZSA-W	SRC10YSA-W	SRC13YSA-W	SRC18YSA-W
Power Supply	1 Phase, 220 ~ 240V, 50Hz
Cooling Capacity (kW)	2.0	2.5	3.5	5.0	2.5	3.5	5.0
Heating Capacity (kW)	2.7	3.2	3.7	5.8	-
EER/COP	4.88 / 4.82	4.90 / 4.92	4.27 / 4.57	3.60 / 3.89	4.90 / -	4.27 / -	3.60 / -
Outdoor Sound Power dB(A)	56	58	62	61	58	62	61
Refrigerant Type/Amount (kg)	R32 / 0.58	R32 / 0.78		R32 / 1.05	R32 / 0.75		R32 / 1.05
Max Pipe Length (m)	20			25	20		25
Max Level Difference (m)	I.D.U Higher 10 / O.D.U Higher 10			I.D.U Higher 15 / O.D.U Higher 15	I.D.U Higher 10 / O.D.U Higher 10		I.D.U Higher 15 / O.D.U Higher 15
Indoor Dimensions (HxWxD) (mm)	290 x 870 x 230
Outdoor Dimensions (HxWxD) (mm)	540 x 780(+62) x 290			640 x 800(+71) x 290	540 x 780(+62) x 290		640 x 800(+71) x 290
Indoor Weight (kg)	9.5	10
Outdoor Weight (kg)	33	36		43.5	33.5		40
Pipe Sizes (mm) (Liquid/Gas)	6.35 / 9.52			6.35 / 12.7	6.35 / 9.52

SKU	SRK13YSA-W-Set
Brand	Mitsubishi Heavy Industries (MHI)
Shipping Weight	43.5000kg
Shipping Cubic	0.189886000m3
Unit Of Measure	ea

Warranty

Mitsubishi Heavy Industries offers up to a 5-year parts and labour warranty for all of their air conditioners. Note your product might not be eligable for the full 5-year warranty. Refer to their terms and conditions.
