Mitsubishi Heavy (MHI) 5.6kW FDUM60ZSXAWVH-RC-EXZ3A Ducted Mid Static 1 Phase Air Conditioning System
FDUM60VH / SRC60ZSXA-W Mitsubishi Heavy (MHI) Ducted
$2,320.00 Excl GST

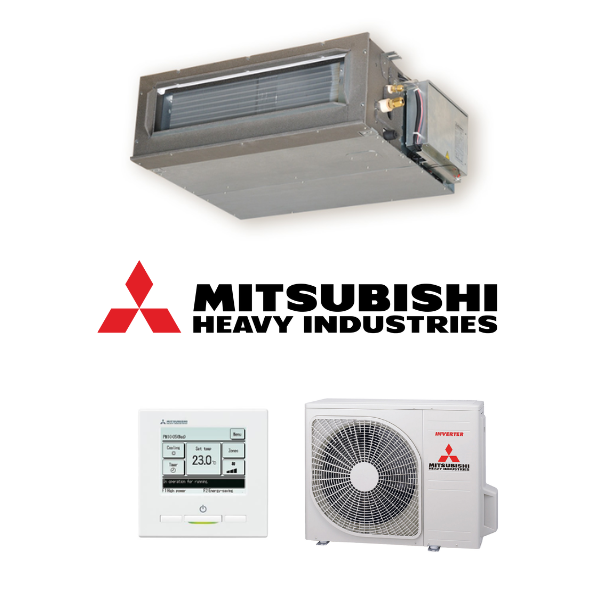

Mitsubishi Heavy Industries FDUM60ZSXAWVH-RC-EXZ3A 6.0kW Single Phase Medium Static Ducted System - Includes Outdoor Unit SRC60ZSXA-W and Wall Controller
The FDUM series of ducted systems are a quiet and compact solution for heating and cooling multiple rooms. Coming in 5.0kW and 5.6kW capacities, the FDUM series incorporates a range of convenient features and functions including Automatic Mode, High Power Mode, Silent Mode and a range of timer and scheduling functions making them the perfect climate solution for smaller Aussie homes.
Key Features:
- Single phase model
- Medium Static
- Automatic operation Mode
- Weekly / Sleep Timer
- Silent operation

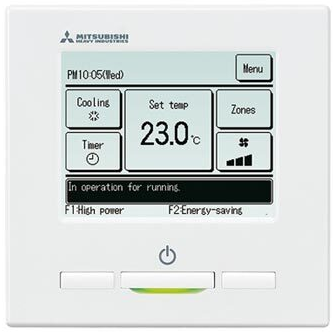

- Wired and wireless control options
- High power mode for rapid cooling and heating
- Dry operation to reduce humidity
- Economy mode
(FDUM60ZSXAWVH-RC-EXZ3A)
System Name | FDUM50ZSXAWVH | FDUM60ZSXAWVH |
---|---|---|

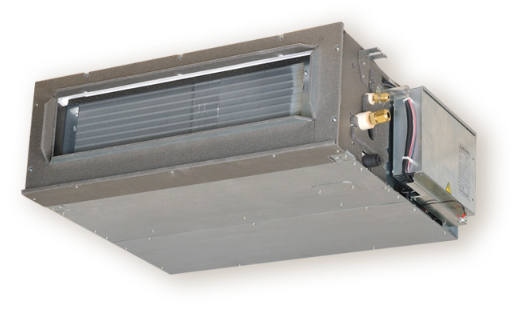

Indoor Unit | FDUM50VH | FDUM60VH |

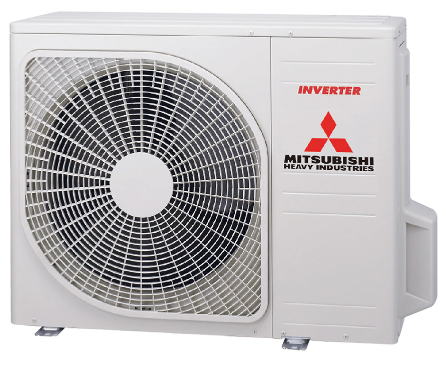

Outdoor Unit | SRC50ZSXA-W | SRC60ZSXA-W |
Power Supply | 1 Phase, 240V, 50Hz | |
Cooling Capacity (kW) | 5.0 | 5.6 |
Heating Capacity (kW) | 5.4 | 6.7 |
Rated Power Input (Cool/Heat) (kW) | 1.51 / 1.59 | 1.53 / 1.75 |
EER/COP | 3.31 / 3.39 | 3.64 / 3.83 |
Duct Sizes (Supply/Return) (mm) | 170 x 680 / 200 x 660 | 170 x 880 / 200 x 860 |
Max External Static Pressure (Pa) | 100 | |
Refrigerant Type/Amount (kg) | R32 / 1.3 | |
Max Pipe Length (m) | 30 | |
Max Level Difference (m) | I.D.U Higher 20 / O.D.U Higher 20 | |
Indoor Dimensions (HxWxD) (mm) | 280 x 750 x 635 | 280 x 950 x 635 |
Outdoor Dimensions (HxWxD) (mm) | 640 x 800 x 290 | |
Indoor Weight (kg) | 29 | 34 |
Outdoor Weight (kg) | 45 | |
Pipe Sizes (mm) (Liquid/Gas) | 6.4 / 12.7 |
SKU | FDUM60ZSXAWVH-RC-EXZ3A |
Brand | Mitsubishi Heavy Industries (MHI) |
Shipping Weight | 79.0000kg |
Shipping Cubic | 0.317390000m3 |
Unit Of Measure | ea |
Warranty
Mitsubishi Heavy Industries offers up to a 5-year parts and labour warranty for all of their Air Conditioners. Note your product might not be eligible for the full 5-year warranty. Refer to their terms and conditions.
