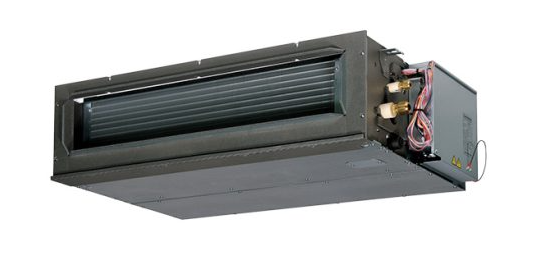

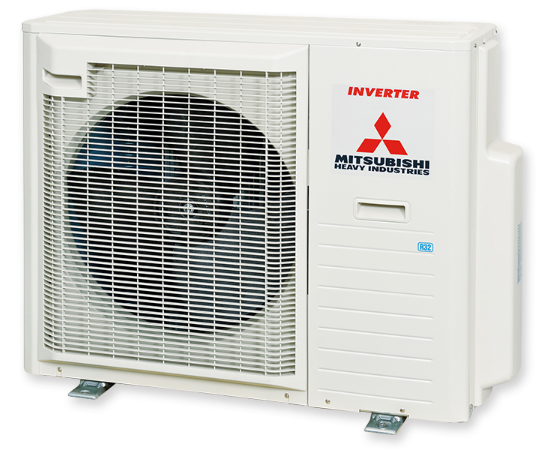

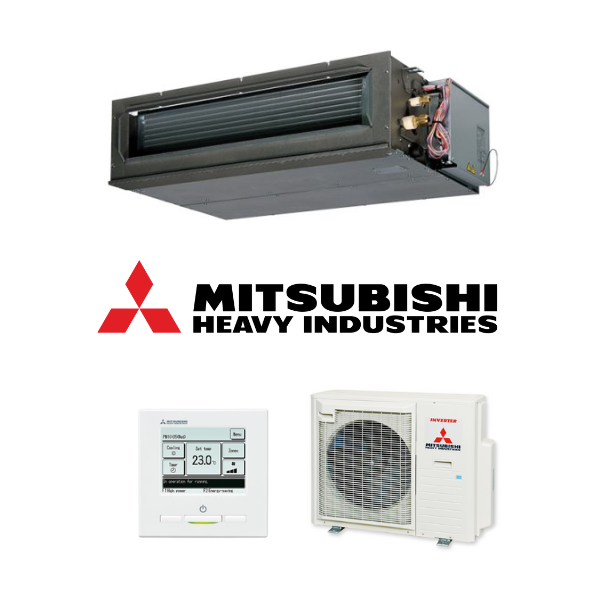

Mitsubishi Heavy Industries FDU71AVNXWVH 7.1kW Single Phase Ducted System - Inlcudes Outdoor Unit FDCA71VNX-W

The FDU series of ducted air conditioning systems are a quiet and discreet climate solution for your entire home. Ranging from 7.1kW up to 14kW, the FDU series incorporates a compact design, a range of convenient features and functions including high power mode, silent mode and several timer and scheduling functions.

Key Features:

Slimline design
High Power Mode for rapid cooling and heating
Weekly & Sleep timers
Silent operation
Dry operation to reduce humidity

(FDU71AVNXWVH-RC-EXZ3A)

System Name	FDU71AVNXWVH	FDU100AVNPWVH	FDU100AVNAWVH	FDU125AVNPWVH	FDU125AVNXWVH	FDU140AVNXWVH
Indoor Unit	FDU71VH	FDU100VH	FDU100VH	FDU125VH	FDU125VH	FDU140VH
Outdoor Unit	FDCA71VNX-W	FDCA100VNP-W	FDCA100VNA-W	FDCA125VNP-W	FDCA125VNX-W	FDCA140VNX-W
Power Supply	1 Phase, 240V, 50Hz
Cooling Capacity (kW)	7.1	10.0	10.0	12.1	12.5	14.0
Heating Capacity (kW)	8.0	10.0	11.2	12.1	14.0	16.0
Rated Power Input (Cool/Heat) (kW)	1.77 / 1.78	3.08 / 2.45	2.99 / 2.66	3.85 / 3.28	3.49 / 3.61	4.22 / 4.22
EER/COP	4.01 / 4.49	3.25 / 4.08	3.35 / 4.21	3.14 / 3.69	3.58 / 3.88	3.32 / 3.79
Duct Sizes (Supply/Return) (mm)	170 x 880 / 200 x 740	170 x 1200 / 235 x 1280
Max External Static Pressure (Pa)	200
Refrigerant Type/Amount (kg)	R32 / 2.75	R32 / 1.7	R32 / 3.3	R32 / 2.25	R32 / 4.0
Max Pipe Length (m)	50	30	50	30	100
Max Level Difference (m)	I.D.U Higher 15 / O.D.U Higher 30	I.D.U Higher 20 / O.D.U Higher 20	I.D.U Higher 15 / O.D.U Higher 50	I.D.U Higher 20 / O.D.U Higher 20	I.D.U Higher 15 / O.D.U Higher 50
Indoor Dimensions (HxWxD) (mm)	280 x 950 x 635	280 x 1370 x 740
Outdoor Dimensions (HxWxD) (mm)	750 x 880 x 340		845 x 970 x 370		1300 x 970 x 370
Indoor Weight (kg)	34	54
Outdoor Weight (kg)	60	57	77	73	97
Pipe Sizes (mm) (Liquid/Gas)	9.52 / 15.88	6.4 / 15.88	9.52 / 15.88

SKU	FDU71AVNXWVH-RC-EXZ3A
Brand	Mitsubishi Heavy Industries (MHI)
Shipping Weight	94.0000kg
Unit Of Measure	ea

Warranty

Mitsubishi Heavy Industries Air-Contioners offers up to a 5-year parts and labour warranty for all of their air conditioners. Note your product might not be eligable for the full 5-year warranty. Refer to their terms and conditions.
