Best Prices Mitsubishi (MHI) SCM80ZS-W 8.0kW Home Air Con Low Cost Installation Brisbane Sydney

Mitsubishi Heavy (MHI) 8.0kW SCM80ZS-W Multi Air Conditioning Outdoor Unit

Calculate Shipping

Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm.

Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Sydney Warehouse. Mon - Fri 8am - 4pm.

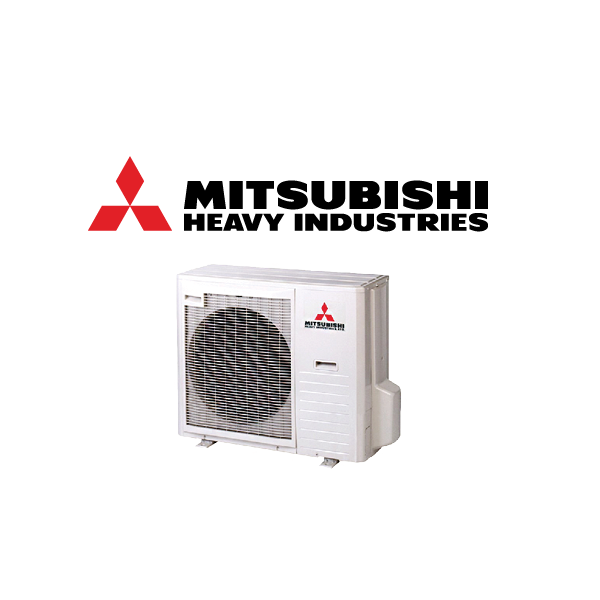

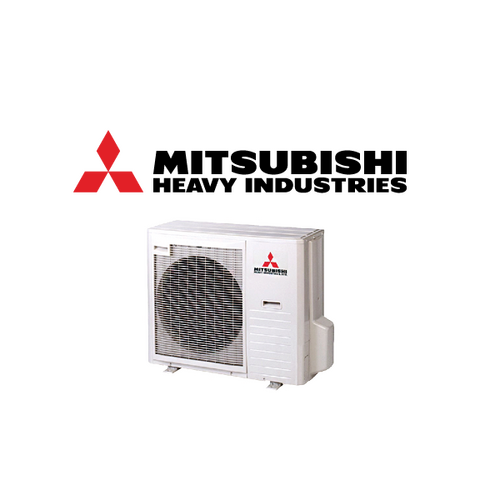

Mitsubishi Heavy Industries SCM80ZS-W 8.0kW Outdoor Multi Unit

With the ability to connect 2 to 4 indoor units to a single outdoor unit, the SCM80ZS-W outdoor multi-split system offers a compact and versatile solution for cooling and heating multiple rooms. Thanks to improved component design, the SCM-ZS-W series boasts super quiet operation while also delivering high energy efferences. The ability to control each indoor unit independently offers even further energy savings while also providing complete control.

Key Features:

Connect up to 5 indoor units to 1 outdoor unit (Model Dependant)
Individual control over each room
Energy efficient solution for multiple rooms
Wide range of indoor units to suit any space
Super quiet operation

(SCM80ZS-W)

Outdoor Unit Name	SCM40ZS-W	SCM45ZS-W	SCM50ZS-W	SCM60ZS-W	SCM71ZS-W	SCM80ZS-W	SCM100ZS-W
Power Supply	1 Phase, 240V, 50Hz
Cooling Capacity (kW)	4.0	4.5	5.0	6.0	7.1	8.0	10.0
Heating Capacity (kW)	4.5	5.3	6.0	6.8	8.6	9.3	10.5
Indoor Unit Connection	2 Units		2 to 3 Units		2 to 4 Units		3 to 5 Units
Power Consumption (Cool/Heat) (kW)	0.80 / 0.83	0.96 / 1.06	1.02 / 1.16	1.32 / 1.40	1.42 / 1.75	1.70 / 1.95	2.70 / 2.38
Running Current (Cool/Heat) (A)	3.4 / 3.5	4.1 / 4.5	4.3 / 4.9	5.6 / 5.9	6.0 / 7.4	7.2 / 8.2	11.4 / 10.0
EER/COP	5.00 / 5.42	4.69 / 5.00	4.90 / 5.17	4.55 / 4.86	5.00 / 4.91	4.71 / 4.77	3.70 / 4.41
Sound Power Level (Cool/Heat) dB(A)	62 / 64	63 / 65	62 / 64		63 / 67	66 / 67	67 / 72
Sound Pressure Level (Cool/Heat) dB(A)	49 / 51	50 / 52	49 / 52	50 / 52	50 / 54	54 / 54	59 / 59
Refrigerant Type/Amount (kg)	R32 / 1.4		R32 / 1.8		R32 / 2.55		R32 / 2.98
Max Pipe Length to 1 Indoor Unit (m)	25
Total Pipe Length to ALL Indoor Units (m)	30		40		70		75
Connection Method	Flare Connection
Max Level Difference (m)	I.D.U Higher 15 / O.D.U Higher 15				I.D.U Higher 20 / O.D.U Higher 20
Air Temperature Upper/Lower Limits (C)	Cooling: -15 to 46 / Heating: -15 to 24
Unit Dimensions (HxWxD) (mm)	595 x 780(+90) x 290		640 x 850(+65) x 290		750 x 880(+73) x 340		945 x 970 x 370
Unit Weight (kg)	40		48.5		61		73
Pipe Sizes (mm) (Liquid/Gas)	6.35 / 9.52

SKU	SCM80ZS-W
Brand	Mitsubishi Heavy Industries (MHI)
Shipping Weight	61.0000kg
Shipping Width	0.340m
Shipping Height	0.750m
Shipping Length	0.953m
Shipping Cubic	0.243015000m3
Unit Of Measure	ea

Warranty

Mitsubishi Heavy Industries offer up to a 5-year parts and labour warranty for all of their Air Conditioners. Note your product might not be eligible for the full 5-year warranty. Refer to their terms and conditions.
