Mitsubishi Heavy (MHI) Avanti 2.5kW DXK09ZSA-W-Set Split Air Conditioning System

Calculate Shipping

Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm.

Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Sydney Warehouse. Mon - Fri 8am - 4pm.

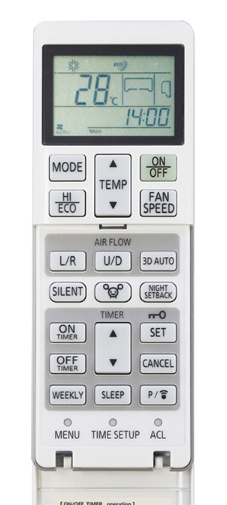

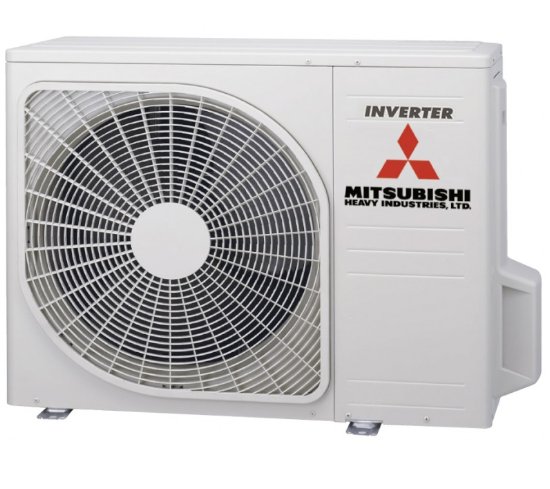

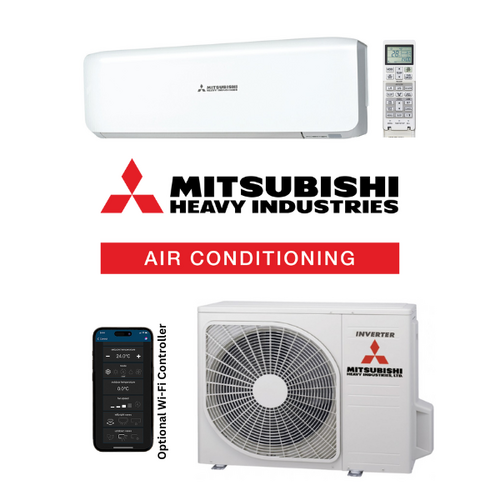

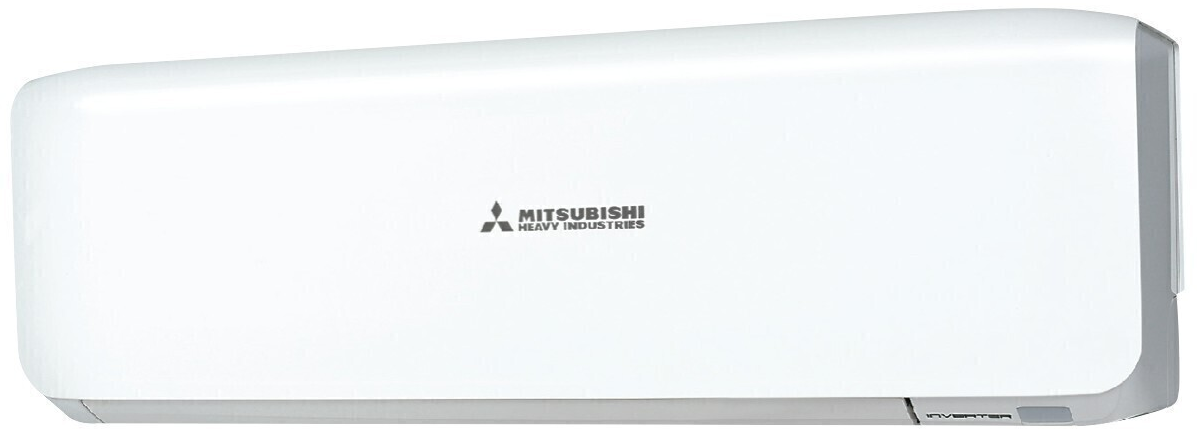

Mitsubishi Heavy Industries DXK09ZSA-W Avanti 2.5kW Reverse Cycle Split System (Optional Wi-Fi Adaptor) - Includes Outdoor Unit DXC09ZSA-W and Wireless Controller

Featuring a 5 star energy rating and coming packed with all the advanced features and functions that the Avanti series is known for, the 2.5kW Avanti reverse cycle split system is ideal for smaller rooms such as a single bedroom, guest bedroom, kid's room or a home office.

Features:

Modern and stylish design
3D Auto airflow for effective and even air distribution
Allergen clear system to capture and eliminate allergens
Energy efficient R32 refrigerant

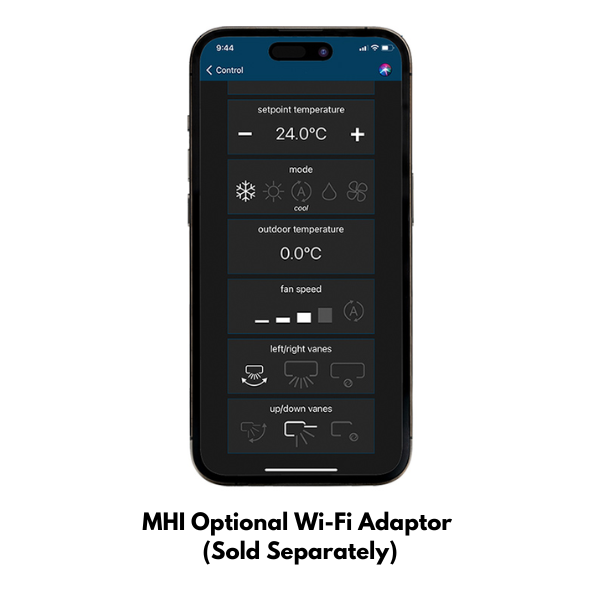

Optional Wi-Fi control

(DXK09ZSA-W-Set)

System Name	DXK06ZSA-W-SET	DXK09ZSA-W-SET	DXK12ZSA-W-SET	DXK18ZSA-W-SET	SRK10YSA-W-SET	SRK13YSA-W-SET	SRK18YSA-W-SET
Indoor Unit	DXK06ZSA-W	DXK09ZSA-W	DXK12ZSA-W	DXK18ZSA-W	SRK10YSA-W	SRK13YSA-W	SRK18YSA-W
Outdoor Unit	DXC06ZSA-W	DXC09ZSA-W	DXC12ZSA-W	DXC18ZSA-W	SRC10YSA-W	SRC13YSA-W	SRC18YSA-W
Power Supply	1 Phase, 220 ~ 240V, 50Hz
Cooling Capacity (kW)	2.0	2.5	3.5	5.0	2.5	3.5	5.0
Heating Capacity (kW)	2.7	3.2	3.7	5.8	-
EER/COP	4.88 / 4.82	4.90 / 4.92	4.27 / 4.57	3.60 / 3.89	4.90 / -	4.27 / -	3.60 / -
Outdoor Sound Power dB(A)	56	58	62	61	58	62	61
Refrigerant Type/Amount (kg)	R32 / 0.58	R32 / 0.78		R32 / 1.05	R32 / 0.75		R32 / 1.05
Max Pipe Length (m)	20			25	20		25
Max Level Difference (m)	I.D.U Higher 10 / O.D.U Higher 10			I.D.U Higher 15 / O.D.U Higher 15	I.D.U Higher 10 / O.D.U Higher 10		I.D.U Higher 15 / O.D.U Higher 15
Indoor Dimensions (HxWxD) (mm)	290 x 870 x 230
Outdoor Dimensions (HxWxD) (mm)	540 x 780(+62) x 290			640 x 800(+71) x 290	540 x 780(+62) x 290		640 x 800(+71) x 290
Indoor Weight (kg)	9.5	10
Outdoor Weight (kg)	33	36		43.5	33.5		40
Pipe Sizes (mm) (Liquid/Gas)	6.35 / 9.52			6.35 / 12.7	6.35 / 9.52

SKU	DXK09ZSA-W-Set
Brand	Mitsubishi Heavy Industries (MHI)
Shipping Weight	46.0000kg
Shipping Cubic	0.189886000m3
Unit Of Measure	ea

Warranty

Mitsubishi Heavy Industries offers up to a 5-year parts and labour warranty for all of their Air Conditioners. Note your product might not be eligible for the full 5-year warranty. Refer to their terms and conditions.
