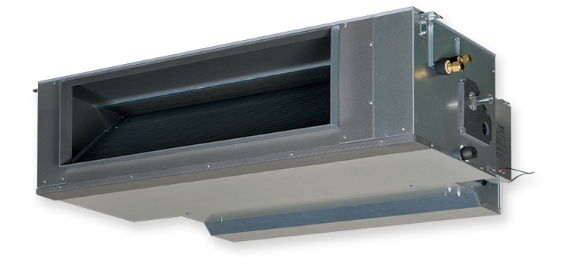

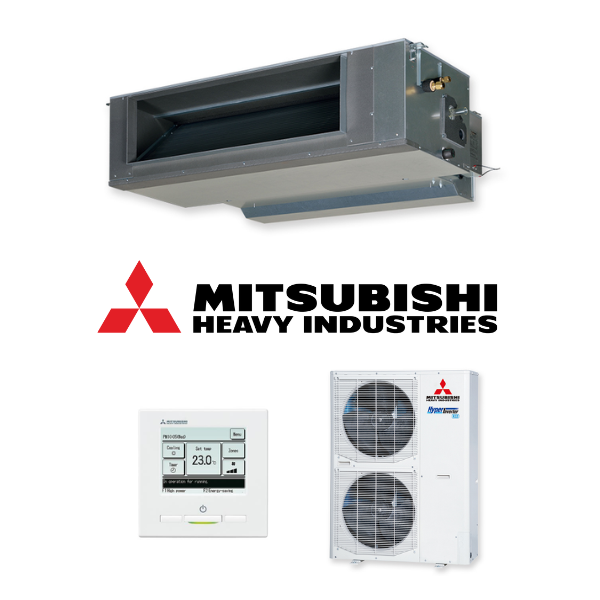

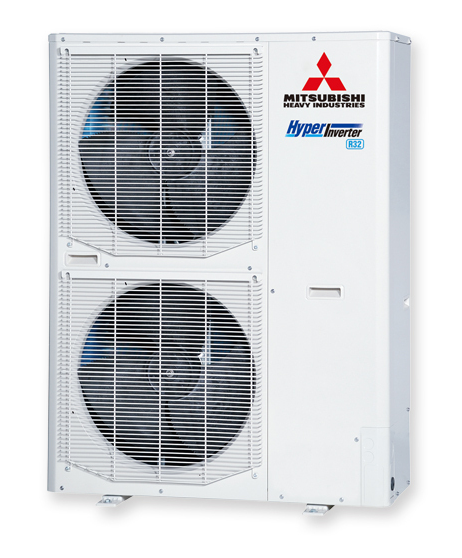

Mitsubishi Heavy Industries FDUA160AVNXWVH-RC-EXZ3A 16.0kW Single Phase Ducted System - Includes Outdoor Unit FDCA160VNX-W

The FDUA series of ducted air conditioning systems are a quiet and discreet climate solution for your entire home. Ranging from 10.0kW up to 20kW, the FDUA series incorporates a range of convenient features and functions including high power mode, silent mode, eco mode and several timer and scheduling functions.

Key Features:

Single phase model
Automatic operation Mode
Weekly / Sleep Timer
Silent operation

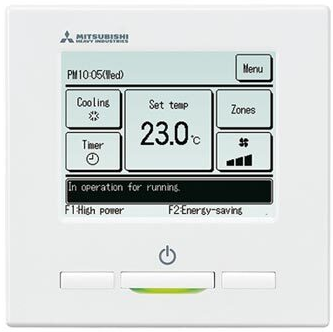

Wired and wireless control options
High Power Mode for rapid cooling & heating
Dry operation to reduce humidity
Economy mode to reduce power consumption

(FDUA160AVNXWVH-RC-EXZ3A)

System Name	FDUA100AVNPWVH	FDUA100AVNAWVH	FDUA125AVNPWVH	FDUA125AVNXWVH	FDUA140AVNXWVH	FDUA160AVNXWVH
Indoor Unit	FDUA100VH	FDUA100VH	FDUA125VH	FDUA125VH	FDUA140VH	FDUA160VH
Outdoor Unit	FDCA100VNP-W	FDCA100VNA-W	FDCA125VNP-W	FDCA125VNX-W	FDCA140VNX-W	FDCA160VNX-W
Power Supply	1 Phase, 220 ~ 240V, 50Hz
Cooling Capacity (kW)	10.0	10.0	12.1	12.5	14.0	16.0
Heating Capacity (kW)	10.0	11.2	12.1	14.0	16.0	18.0
Rated Power Input (Cool/Heat) (kW)	2.99 / 2.57	3.05 / 2.87	3.85 / 3.28	3.83 / 3.68	4.02 / 4.19	5.00 / 5.00
EER/COP	3.34 / 3.89	3.28 / 3.90	3.14 / 3.69	3.26 / 3.80	3.48 / 3.82	3.16 / 3.60
Duct Sizes (Supply/Return) (mm)	348 x 898 / 348 x 898				298 x 1064 / 2 X dia400
Max External Static Pressure (Pa)	200				150
Refrigerant Type/Amount (kg)	R32 / 1.7	R32 / 3.3	R32 / 2.25	R32 / 4.0
Max Pipe Length (m)	30	50	30	100
Max Level Difference (m)	I.D.U Higher 20 / O.D.U Higher 20	I.D.U Higher 15 / O.D.U Higher 50	I.D.U Higher 20 / O.D.U Higher 20	I.D.U Higher 15 / O.D.U Higher 50 (Outdoor Temp <43) 30 (Outdoor Temp > 43)
Indoor Dimensions (HxWxD) (mm)	398 x 1150 x 650				398 x 1450 x 930
Outdoor Dimensions (HxWxD) (mm)	750 x 880 x 340	845 x 970 x 370		1300 x 970 x 370
Indoor Weight (kg)	52				66
Outdoor Weight (kg)	57	77	73	97
Pipe Sizes (mm) (Liquid/Gas)	6.4 / 15.88	9.52 / 15.88
