Panasonic 3.5kW CSCU-Z35UD3RAW Ultra Slim Ducted 1PH Air Conditioning System
CS-Z35UD3RAW / CU-Z35UBRA 1PH Panasonic Ducted
$1,716.36 Excl GST
.jpg)

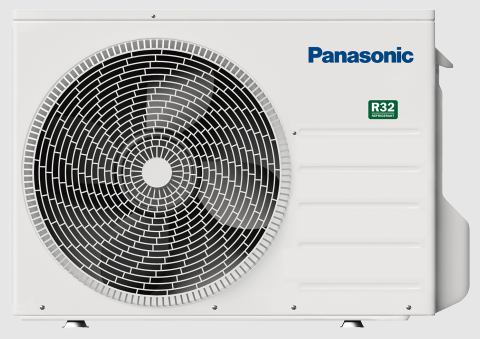

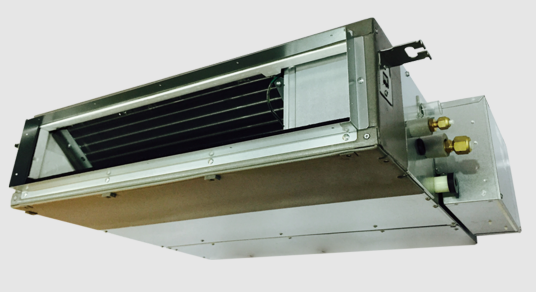

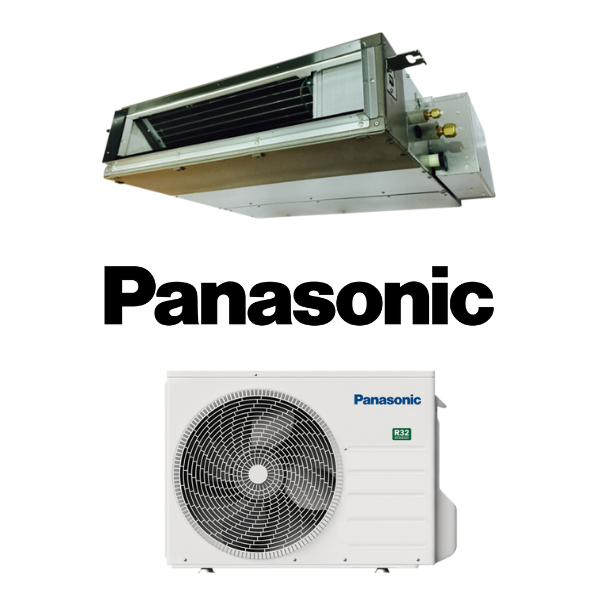

Panasonic CS/CU-Z35UD3RAW 3.5kW Ultra Slim Ducted System - Includes Outdoor Unit CU-Z35UBRA and Wired Wall Controller
R32 Inverter Ultra Slim Ducted have a slim design with a height of only 200 mm, meaning they can be installed in compact ceiling spaces. Their quiet operation makes them ideal for small hotels and condominiums.
Features:
- WLAN Control Possible
- Easily Installed in Limited Spaces
- Market-leading Energy Efficiency
- Only 200mm High
- Built-in drain pump
- Inlcudes Wireless Controller
(CSCU-Z35UD3RAW)
| System Names | CS/CU-Z25UD3RAW | CS/CU-Z35UD3RAW | CS/CU-Z50UD3RAW | CS/CU-Z60UD3RAW |
|---|---|---|---|---|
| Indoor Units | CS-Z25UD3RAW | CS-Z35UD3RAW | CS-Z50UD3RAW | CS-Z60UD3RAW |
| Outdoor Units | CU-Z25UBRA | CU-Z35UBRA | CU-Z50UBRA | CU-Z60UBRA |
| Rated Cooling Capacity (kW) | 2.5 | 3.5 | 5.0 | 6.0 |
| Rated Heating Capacity (kW) | 3.3 | 4.2 | 6.1 | 7.0 |
| Indoor dimensions (H x W x D) (mm) | 250 x 750 x 640 | |||
| Outdoor dimension (H x W x D) (mm) | 542 x 780 x 289 | 619 x 824 x 299 | 695 x 875 x 320 | |
| Indoor Weight (kg) | 19 | |||
| Outdoor Weight (kg) | 33 | 35 | 42 | 43 |
| Pipe Sizes (Liquid/Gas) (mm) | 6.35 / 9.52 | 6.35 / 12.7 | ||
| SKU | CSCU-Z35UD3RAW |
| Brand | Panasonic |
| Shipping Weight | 54.0000kg |
| Shipping Cubic | 0.248507000m3 |
| Unit Of Measure | ea |
