Panasonic 7.1kW CSCU-Z71XKR Wall Split Air Conditioning System
CS-Z71XKR / CU-Z71XKR Panasonic Wall Split
$1,958.18 Excl GST
Dear Customers, our online sales will close on 23rd December 2024 at 3:00 PM and will recommence on 2nd January 2025 at 8:00 AM.
.jpg)

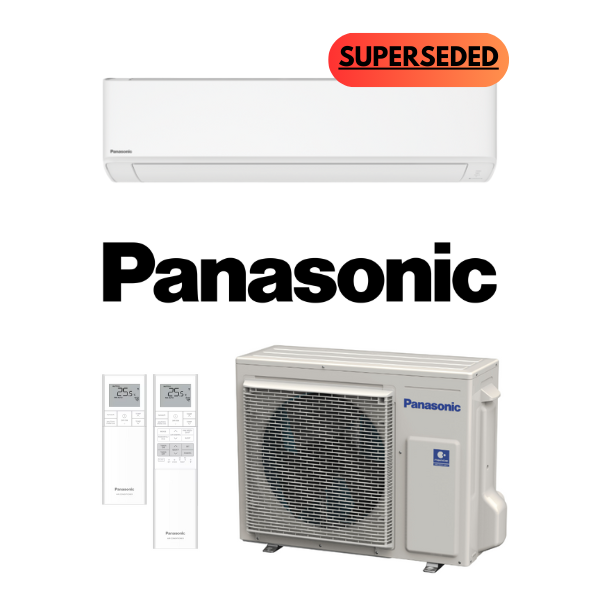

NOTE: This Product has been Superseded by the CS/CU-Z71AKR 7.1kW Deluxe Wall Split System

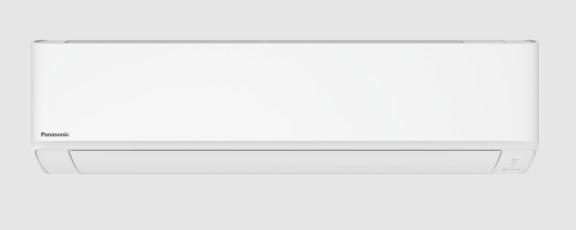

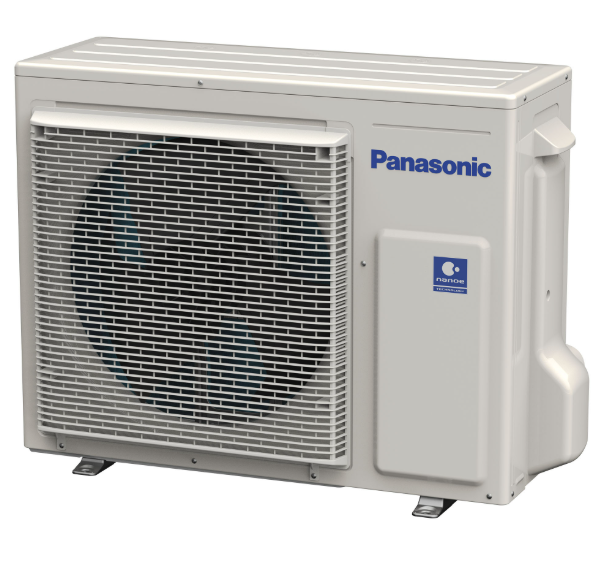

Panasonic CS/CU-Z71XKR 7.1kW Reverse Cycle Split System
At Panasonic, we’re committed to delivering more than just cooling & heating solutions, we consistently strive to improve the quality of your air, so that you can improve the quality of your life. Panasonic’s air conditioners utilize AEROWINGS technology to deliver precise control of airflow direction, as well as powerful cooling, for a comfortable environment. As well as a cool comfortable home, a Panasonic air conditioner provides the ultimate peace of mind with our Anti-Bacterial Filter, quiet operation, and 5-year warranty.
(CSCU-Z71XKR)
| System Name | CS/CU-Z25AKR | CS/CU-Z35AKR | CS/CU-Z42AKR | CS/CU-Z50AKR | CS/CU-Z60AKR | CS/CU-Z71AKR | CS/CU-Z80YKR | CS/CU-Z95AKR |
|---|---|---|---|---|---|---|---|---|
| Indoor Unit | CS-Z25AKR | CS-Z35AKR | CS-Z42AKR | CS-Z50AKR | CS-Z60AKR | CS-Z71AKR | CS-Z80YKR | CS-Z95AKR |
| Outdoor Unit | CU-Z25AKR | CU-Z35AKR | CU-Z42AKR | CU-Z50AKR | CU-Z60AKR | CU-Z71AKR | CU-Z80YKR | CU-Z95AKR |
| Power Supply | 1 Phase, 220 ~ 240V, 50Hz | |||||||
| Cooling Capacity (kW) | 2.5 | 3.5 | 4.2 | 5.0 | 6.0 | 7.1 | 8.0 | 9.5 |
| Heating Capacity (kW) | 3.0 | 4.0 | 5.1 | 6.0 | 6.5 | 8.0 | 9.0 | 10.3 |
| EER/COP | 4.31 / 4.62 | 4.27 / 4.60 | 3.56 / 3.85 | 3.31 / 3.49 | 3.24 / 3.44 | 3.45 / 3.83 | 3.35 / 3.85 | 3.35 / 3.71 |
| Refrigerant Type | R32 | |||||||
| Indoor Airflow (Cooling/Heating) (L/s) | 188 / 200 | 193 / 202 | 193 / 202 | 208 / 228 | 328 / 339 | 352 / 367 | 367 / 377 | 407 / 420 |
| Dehumid (L/h) | 1.50 | 2.00 | 2.40 | 2.80 | 3.30 | 4.10 | 4.70 | 5.00 |
| Max Pipe Length (m) | 20 | 30 | ||||||
| Max Elevation Length (m) | 15 | 20 | ||||||
| Outdoor Operating Range (Cooling / Heating) | -10 ~ 46 / -15 ~ 24 | |||||||
| Indoor Dimensions (HxWxD) (mm) | 290 x 779 x 209 | 295 x 1040 x 244 | 309 x 1212 x 269 | |||||
| Outdoor Dimensions (HxWxD) (mm) | 542 x 780 x 289 | 619 x 824 x 299 | 695 x 875 x 320 | 795 x 875 x 320 | ||||
| Indoor Weight (kg) | 8 | 12 | 13 | 17 | ||||
| Outdoor Weight (kg) | 25 | 31 | 35 | 45 | 51 | 55 | ||
| Pipe Sizes (mm) (Liquid/Gas) | 6.35 / 9.52 | 6.35 / 12.7 | 6.35 / 15.88 | |||||
| SKU | CSCU-Z71XKR |
| Brand | Panasonic |
| Shipping Weight | 58.0000kg |
| Unit Of Measure | ea |
