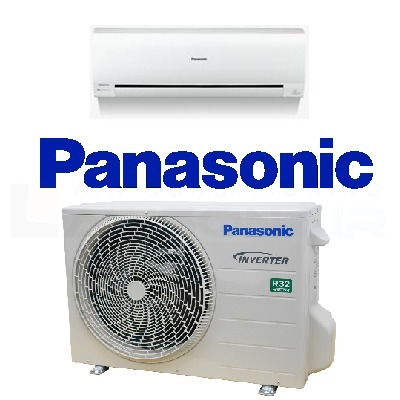

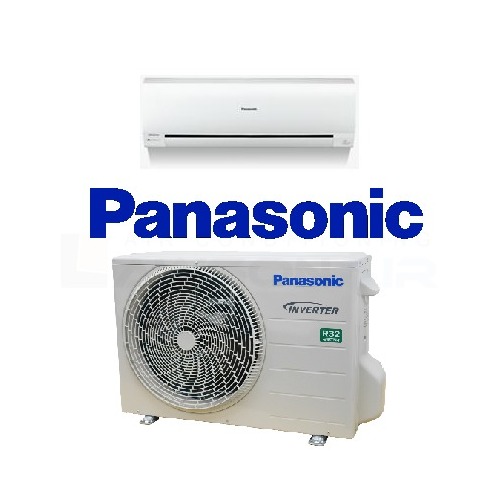

Panasonic CS/CU-RE12NKR 3.5 kW Reverse Cycle Split System

Dear Customers, our online sales will close on 23rd December 2024 at 3:00 PM and will recommence on 2nd January 2025 at 8:00 AM.

Panasonic has launched a new range of Inverter Air Conditioners with a new stylish design, enhanced technology and smart features for cooling comfort this summer.

Consumers can also enjoy the advantage of having an Air Conditioner and air purifier in one unit. The latest Reverse Cycle Air Conditioners feature the new Nanoe-G Air Purifying System. Nanoe-G is an active air purifying system that not only deactivates unwanted airborne particles, but now also surface based particles. Nanoe-G Air Purifying removes 99% of airborne bacteria, viruses and mould as well as deactivating 99% of viruses and 99% of bacteria on surfaces for a cleaner, healthier home.

ECONAVI technology delivers up to 40% additional Energy Savings
Panasonic Inverter Technology
Advanced e-ion Air Purification System, Mild Dry Cooling

(CSCU-RE12NKR)

Indoor Unit		CS-RE12PKR

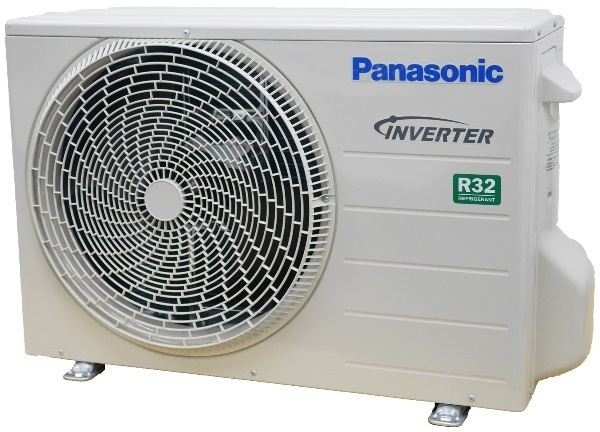

Outdoor Unit		CU-RE12PKR
Function		Cooling + Heating
Cooling Capacity Rated Conditions	kW	3.5
Cooling Capacity Range - Min ~ Max	kW	0.30 ~ 3.90
EER	w/w	3.76
Heating Capacity Rated Conditions	kW	4.25
Heating Capacity Range - Min ~ Max	kW	0.90 ~ 5.10
COP	w/w	3.9
Star Rating - Cool		2.5 / 3.0
Electrical Voltage	V	240
Running Current - Cool / Heat	A	4.00 / 4.90
Power Input - Cool / Heat (kW)	kW	0.93 / 1.09
Sound Pressure Indoor - Cool - Hi / Lo / S-Lo	dB(A)	42 / 30 / 22
Sound Pressure Indoor - Heat - Hi / Lo / S-Lo	dB(A)	42 / 33 /25
Sound Pressure Outdoor - Cool - Hi / S-Lo	dB(A)	48 / -
Sound Pressure Outdoor - Heat - Hi / S-Lo	dB(A)	50 / -
Sound Power Outdoor - Cool - Hi / S-Lo	dB	63 / -
Sound Power Outdoor - Heat - Hi / S-Lo	dB	65 / -
Quiet Mode - Indoor	dB	22
Quiet Mode - Outdoor	dB	48
Dehumidify	L/h	2
Air Flow - Cool / Heat	L/s	212 / 215
Indoor Dimensions - H x W x D	mm	290 x 870 x 214
Outdoor Dimensions - H x W x D	mm	542 x 780 x 289
Weight - Indoor	kg	9
Weight - Outdoor	kg	34
Refrigerant Pipe Diameter - Liquid Side / Gas Side	mm	6.35 / 12.70
Piping Extension Length Min ~ Max	m	3 ~ 15
Pipe Length for Additional Gas	m	7.5
Additional Refrigerant (R410A)	g/m	20
Power Supply		Outdoor
Operating Temperature Range - Outdoor - Cooling	°C	16 ~ 46
Operating Temperature Range - Outdoor - Heating	°C	-15 ~ 24
Warranty - Residential		5 Years Manufacturer's Warranty
