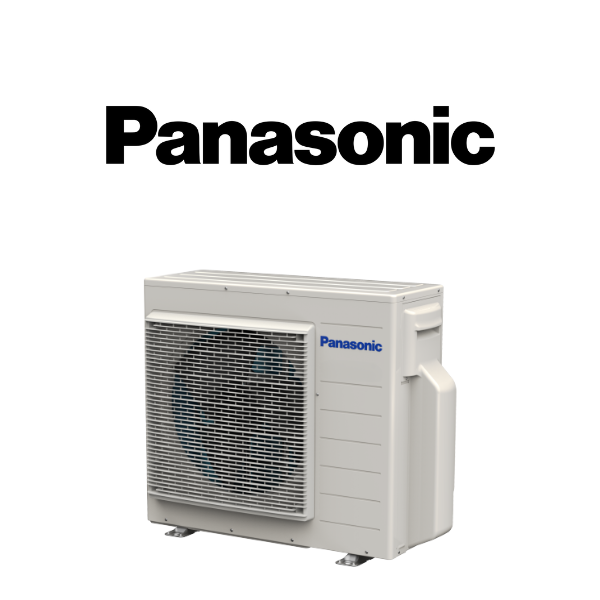

Panasonic CU-4Z71VBR 7.1kW Outdoor Multi Split Unit (4 Connectable Units)

Panasonic’s Multi Split Air Conditioning System is a high efficiency multi split system and designed with high durability under a wide range of harsh conditions. A single outdoor unit offers flexibility up to 11.5kW (cooling) and 14.5kW (heating), and connects up to 4 ports with independent operational control. Mix and match with a selection of 5 types of indoor units, including Wall-Mounted Z Series with nanoe™ X and built-in Wi-Fi, Wall-Mounted RZ Series, Ultra Slim Ducted, Mini Cassette with nanoe™ X and Floor Console with nanoe™ X. The outdoor unit’s wide cooling capacity provides greater installation flexibility to accommodate large spaces or high occupancy levels.

Key Features:

Wide Cooling/Heating capacity range to meet different space requirements
Purify your home all day long with 24-hour nanoe X air purification
Asthma and allergy friendly
Multi zone control with comfort could app
Advanced smart control with voice assistant compatibility
Highly durable, robust design and long term endurance

(CU-4Z71VBR)

Outdoor Unit Name	CU-2Z52VBR	CU-3Z54VBR	CU-4Z71VBR	CU-4Z80VBR	CU-5Z100VBR
Cooling Capacity (kW)	5.2	5.4	7.1	8.0	10.0
Heating Capacity (kW)	6.1	7.0	8.5	9.4	12.0
Power Supply (V/Hz/Ph)	240 / 50 / 1
Maximum Connectable Capacity (kW)	7.7	9.5	11.5	14.7	18.3
Maximum Connectable Indoors	2	3	4	4	5
Running Current Cool/Heat (A)	5.9 / 6.2	5.1 / 6.8	7.4 / 8.6	8.9 / 9.3	11.8 / 12.1
Power Input Cool/Heat (kW)	1.35 / 1.43	1.12 / 1.54	1.66 / 1.95	1.98 / 2.03	2.60 / 2.76
EER/COP	3.85 / 4.27	4.82 / 4.55	4.28 / 4.36	4.04 / 4.63	3.85 / 4.35
Sound Power Level Cool/Heat dBA	66 / 68	62 / 63	63 / 65	67 / 68	69 / 72
Sound Pressure Level Cool/Heat dBA	51 / 53	48 / 49	49 / 51	51 / 52	53 / 56
Maximum Current (A)	11.5	15.2	15.6	19.0	21.3
Starting Current (A)	6.4	7.0	8.8	9.7	12.5
Compressor Output (W)	900	1300		1700
Dimensions (HxWxD) (mm)	619 x 875(+70) x 299	795 x 875(+95) x 320		999 x 940 x 340
Net Weight (kg)	39	71	72	80	81
Pipe Length Range (1 Room) (m)	3-20	3-25
Maximum Pipe Length Total (m)	30	50	60	70	80
Pipe Sizes (mm) (Liquid/Gas)	6.35 + 9.52
Operating Range Cool/Heat (C)	-10 to 46 / -15 to 24

SKU	CU-4Z71VBR
Brand	Panasonic
Shipping Weight	72.0000kg
Shipping Width	0.320m
Shipping Height	0.795m
Shipping Length	0.970m
Shipping Cubic	0.246768000m3
Unit Of Measure	ea
