NOTE: This Product Has Been Superseded by the CS/CU-RZ35AKR 3.5kW Reverse Cycle Wall Split System

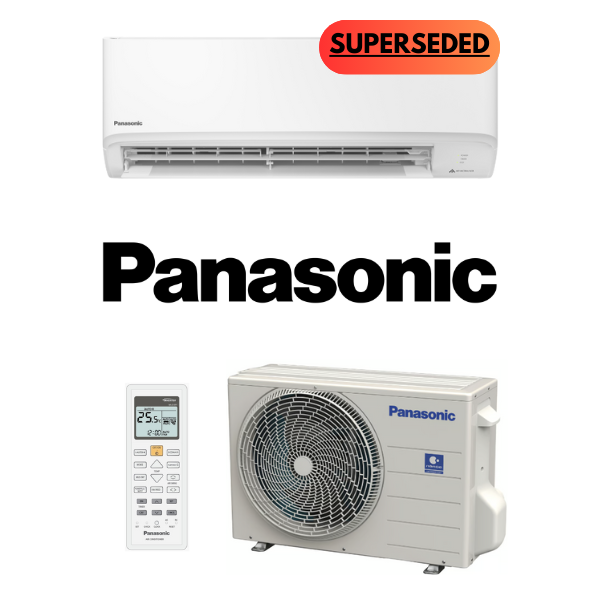

Panasonic CS/CU-RZ35XKR 3.5kW Reverse Cycle Split System
At Panasonic, we’re committed to delivering more than just cooling & heating solutions, we consistently strive to improve the quality of your air, so that you can improve the quality of your life. Panasonic’s air conditioners utilize AEROWINGS technology to deliver precise control of airflow direction, as well as powerful cooling, for a comfortable environment. As well as a cool comfortable home, a Panasonic air conditioner provides the ultimate peace of mind with our Anti-Bacterial Filter, quiet operation, and 5-year warranty.
(CSCU-RZ35XKR)
Indoor Unit |

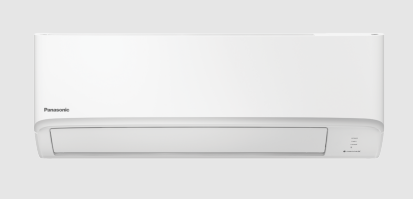

CS-RZ35XKR |
Outdoor Unit |

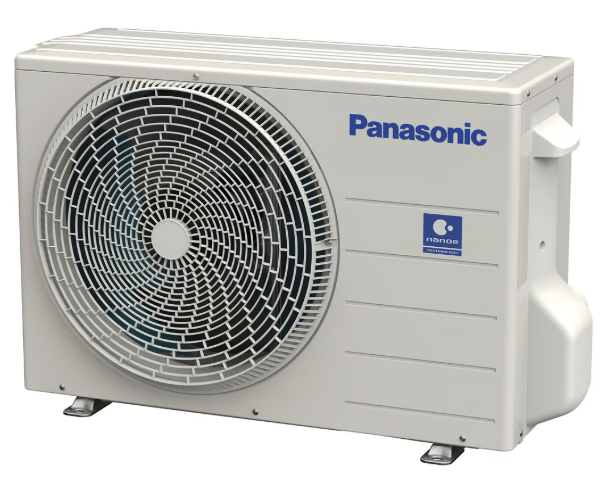

CU-RZ35XKR |
Power Supply |
1 Phase, 220 ~ 240v, 50Hz |
Rated Capacity |
Cool (kW) |
3.5 |
Heat (kW) |
4.0 |
|
Capacity Range |
Cool (kW) |
1.00 ~ 4.20 |
Heat (kW) |
0.90 ~ 5.70 |
|
Power Input (Rated) |
Cool (kW) |
0.80 |
Heat (kW) |
0.86 |
|
Power Input Range |
Cool (kW) |
0.22 ~ 1.29 |
Heat (kW) |
0.19 ~ 1.65 |
|
Running Current |
Cool (A) |
3.50 |
Heat (A) |
3.80 |
|
EER/COP |
4.38 / 4.65 |
AEER/ACOP |
4.33 / 4.61 |
Energy Star Ratings |
Cool |
4.5 / 4.0 / 4.5 |
Heat |
3.5 / 3.0 / 2.5 |
|
Dimensions (HxWxD) |
Indoor (mm) |
290 x 779 x 209 |
Outdoor (mm) |
542 x 780 x 289 |
|
Weight |
Indoor (kg) |
8 |
Outdoor (kg) |
30 |
|
Refrigerant Type |
R32 |
Pre-Charged to Pipe |
(m) |
7.5 |
Max Pipe Length |
(m) |
20 |
Max Level Difference |
|
Pipe Sizes |
Liquid (mm) |
6.35 |
Gas (mm) |
9.52 |
|
Indoor Airflow Rate |
Cool (l/s) |
193 |
Heat (l/s) |
202 |
|
Indoor Sound Pressure Level (H/SL) |
Cool (dBA) |
44 / 26 / 19 |
Heat (dBA) |
44 / 29 / 22 |
|
Outdoor Sound Pressure Level (H/SL) |
Cool (dBA) |
49 / 44 |
Heat (dBA) |
50 / 45 |
|
Outdoor EPA Sound Power Level (H) |
Cool (dBA) |
64 / 59 |
Heat (dBA) |
65 / 60 |
|
SKU |
CSCU-RZ35XKR |
Brand |
Panasonic |
Shipping Weight |
38.0000kg |
Unit Of Measure |
ea |
