Panasonic RZ Series CS/CU-RZ80YKR 8.0kW Wall Split Air Conditioning System
CS-RZ80YKR / CU-RZ80YKR Panasonic Wall Split
$2,220.91 Excl GST

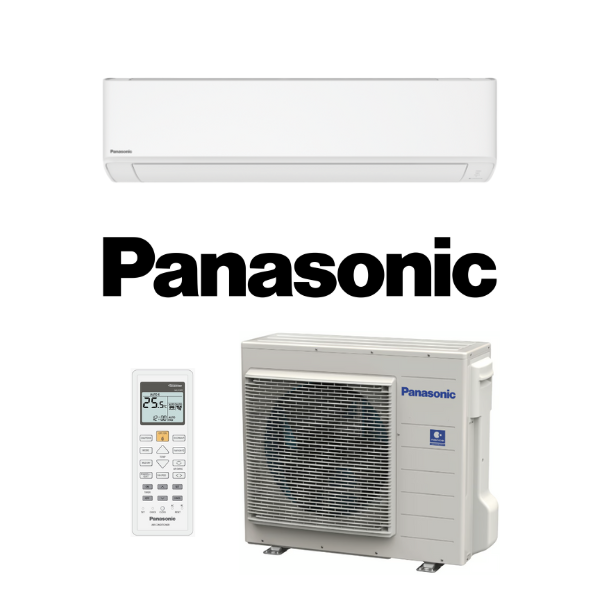

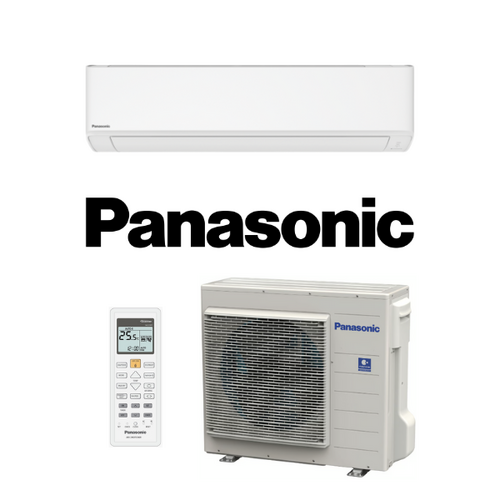

Panasonic CS/CU-RZ80YKR 8.0kW RZ Series Reverse Cycle Split System (Optional Wi-Fi Controller) - Includes Outdoor Unit CU-RZ80YKR and Wireless Controller
Panasonic Standard Reverse Cycle Inverter RZ Series (AKR) features an anti-bacterial filter to ensure clean air is delivered throughout the space. POWERFUL Mode offers instant cooling with just a push of a button. AEROWINGS directs airflow further across the room. Enjoy cooling comfort while saving energy with Inverter technology, R32 refrigerant, and ECO Mode with A.I. Control. Stay connected with Panasonic Comfort Cloud App (optional network adaptor is required) to manage your air conditioners from one mobile device.
Key Features:
- POWERFUL Mode
- ECO Mode with A.I
- Inverter Control
- Quiet Mode
- Soft Dry Operation Mode
- Hot Start Control
- Anti-Bacterial Filter & Odour Removing Function
- Removable Washable Panel
- DRED

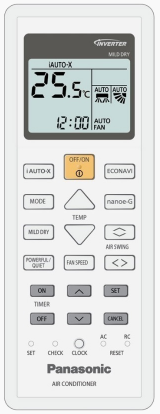

- LCD Wireles Remote Control Included
- Optional Wi-Fi - Network Adaptor Required
- Self Diagnosis Function
- Personal Airflow Creation
(CSCU-RZ80YKR)
System Name | CS/CU-RZ25AKR | CS/CU-RZ35AKR | CS/CU-RZ42AKR | CS/CU-RZ50AKR | CS/CU-RZ60AKR | CS/CU-RZ71AKR | CS/CU-RZ80YKR | CS/CU-RZ95AKR |
---|---|---|---|---|---|---|---|---|

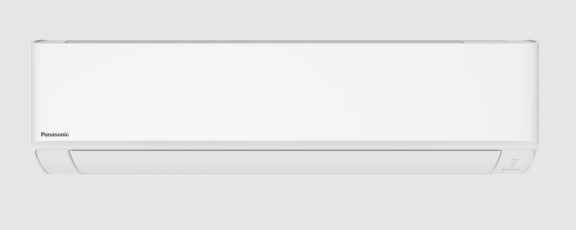

Indoor Unit | CS-RZ25AKR | CS-RZ35AKR | CS-RZ42AKR | CS-RZ50AKR | CS-RZ60AKR | CS-RZ71AKR | CS-RZ80YKR | CS-RZ95AKR |

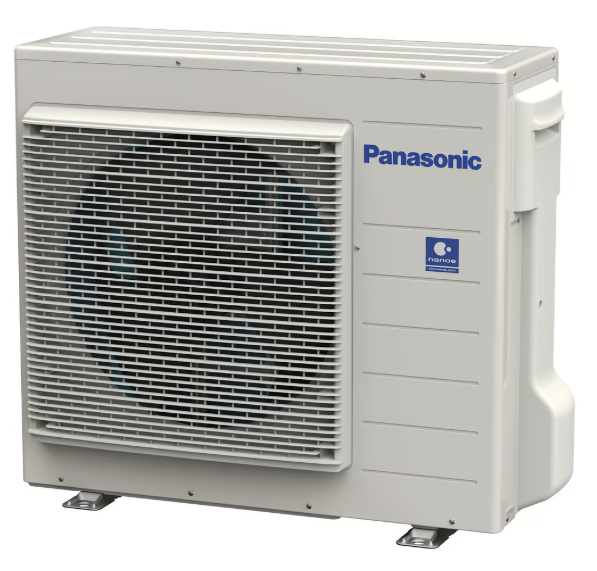

Outdoor Unit | CU-RZ25AKR | CU-RZ35AKR | CU-RZ42AKR | CU-RZ50AKR | CU-RZ60AKR | CU-RZ71AKR | CU-RZ80YKR | CU-RZ95AKR |
Power Supply | 1 Phase, 220 ~ 240V, 50Hz | |||||||
Cooling Capacity (kW) | 2.5 | 3.5 | 4.2 | 5.0 | 6.0 | 7.1 | 8.0 | 9.5 |
Heating Capacity (kW) | 3.0 | 4.0 | 5.1 | 6.0 | 6.5 | 8.0 | 9.0 | 10.3 |
EER/COP | 4.31 / 4.62 | 4.27 / 4.60 | 3.56 / 3.85 | 3.31 / 3.49 | 3.24 / 3.44 | 3.45 / 3.83 | 3.35 / 3.85 | 3.35 / 3.71 |
Refrigerant Type | R32 | |||||||
Indoor Airflow (Cooling/Heating) (L/s) | 188 / 200 | 193 / 202 | 193 / 202 | 208 / 228 | 328 / 339 | 352 / 367 | 367 / 377 | 407 / 420 |
Dehumid (L/h) | 1.50 | 2.00 | 2.40 | 2.80 | 3.30 | 4.10 | 4.70 | 5.00 |
Max Pipe Length (m) | 20 | 30 | ||||||
Max Elevation Length (m) | 15 | 20 | ||||||
Outdoor Operating Range (Cooling / Heating) | -10 ~ 46 / -15 ~ 24 | |||||||
Indoor Dimensions (HxWxD) (mm) | 290 x 779 x 209 | 295 x 1040 x 244 | 309 x 1212 x 269 | |||||
Outdoor Dimensions (HxWxD) (mm) | 542 x 780 x 289 | 619 x 824 x 299 | 695 x 875 x 320 | 795 x 875 x 320 | ||||
Indoor Weight (kg) | 8 | 12 | 13 | 17 | ||||
Outdoor Weight (kg) | 25 | 30 | 31 | 35 | 45 | 51 | 55 | |
Pipe Sizes (mm) (Liquid/Gas) | 6.35 / 9.52 | 6.35 / 12.7 | 6.35 / 15.88 |
SKU | CSCU-RZ80YKR |
Brand | Panasonic |
Shipping Weight | 64.0000kg |
Shipping Cubic | 0.297459000m3 |
Unit Of Measure | ea |
