Panasonic S-125PT2E5B 12.5kW 3 Phase Under Ceiling System

Dear Customers, our online sales will close on 23rd December 2024 at 8:00 AM and will recommence on 2nd January 2025 at 8:00 AM.

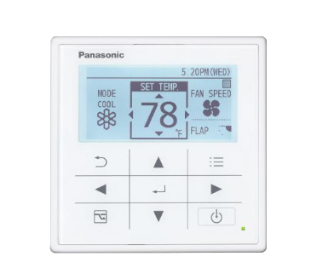

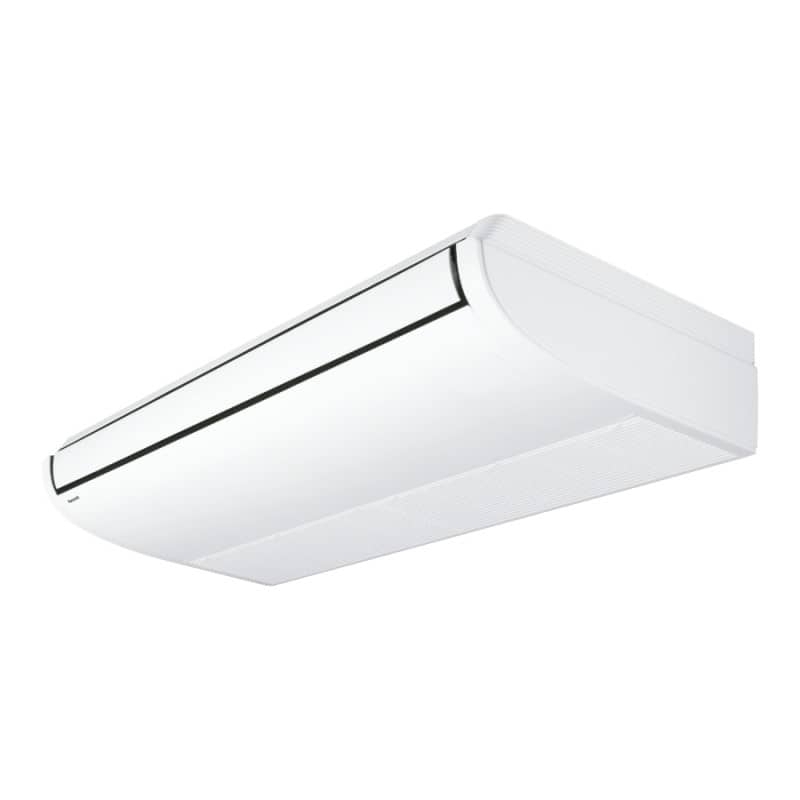

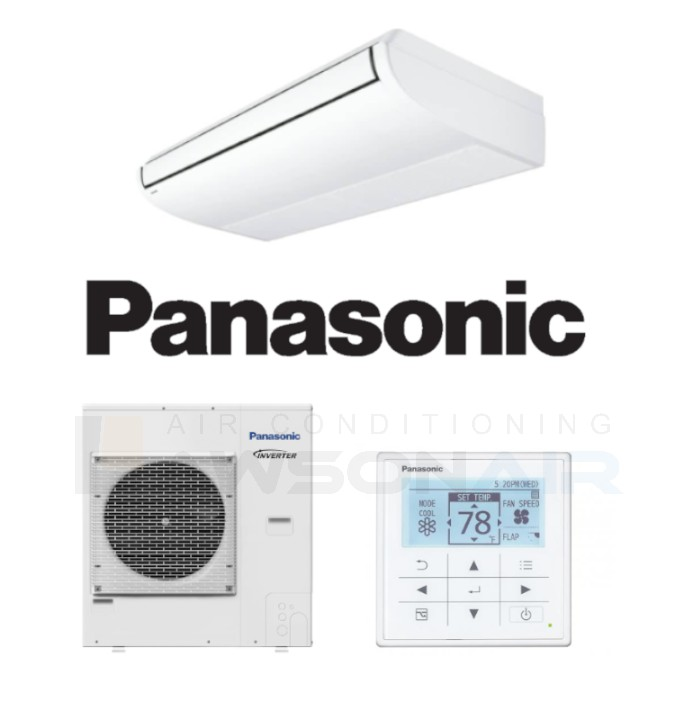

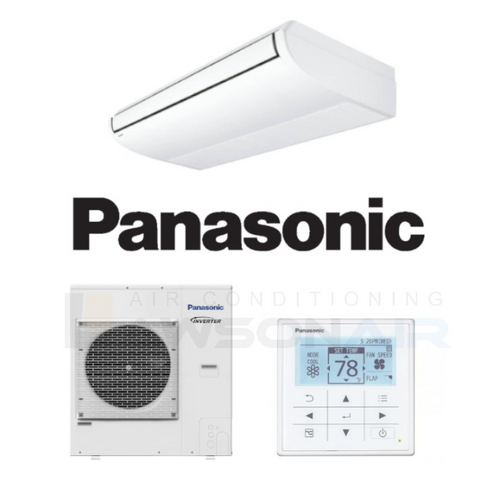

Panasonic S-125PT2E5B 12.5kW Under Ceiling 3 Phase System - Includes Delux Backlit Wired Controller CZ-RTC5A & Outdoor Unit U-125PZ2R8

Providing outstanding energy-saving performance, comfort and long-distance airflow distribution, these units are perfect for retail stores and schools.

Features:

Compact looking, stylish, one-motion design
Energy-saving technology delivering top-class efficiency
Comfortable, long-distance airflow distribution

(S-125PT2E5B-3P)

INDOOR UNIT		S-125PT2E5B

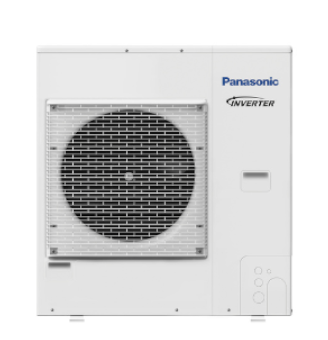

OUTDOOR UNIT		U-125PZ2R8
Rated Capacity	Cool (kW)	12.5
Rated Capacity	Heat (kW)	12.5
Capacity Range	Cool (kW)	(3.2 - 13.5)
Capacity Range	Heat (kW)	(3.3 - 15.0)
Power Input (Rated)	Cool (kW)	3.76
Power Input (Rated)	Heat (kW)	3.21
E.E.R./C.O.P.	Cool/Heat	3.32/3.89
Air Flow Rate (Rated)	I/S	566
Indoor Sound Level (H/M/L)	dBA	64/58/54
Piping Length	(m)	5 - 50
Indoor Fan Speeds (No.)		3
Dimensions (HxWxD)	Indoor (mm)	235 x 1590 x 690
Dimensions (HxWxD)	Outdoor (mm)	996 x 980 x 370
Weight	Indoor(kg)	40
Weight	Outdoor(kg)	94
Power Supply	V/Hz	3 Phase, 415V, 50Hz
Compressor Type		TBA
Refrigerant		R32
Pipe Sizes	Liquid (mm)	Ø9.52
	Gas (mm)	Ø15.88
	Drain (mm)	VP-25
Supply Air Opening	mm (HxW, Flange)	TBA
Return Air Opening	mm (Oval)	TBA
Outdoor Operating Range	Cool (°CDB)	- 10 to 43
Outdoor Operating Range	Heat (°CWB)	- 15 to 24
Sound Power Level	dBA (C/H)	70/70
Outdoor Sound Level	Pressure dBA (C/H)	55/55
