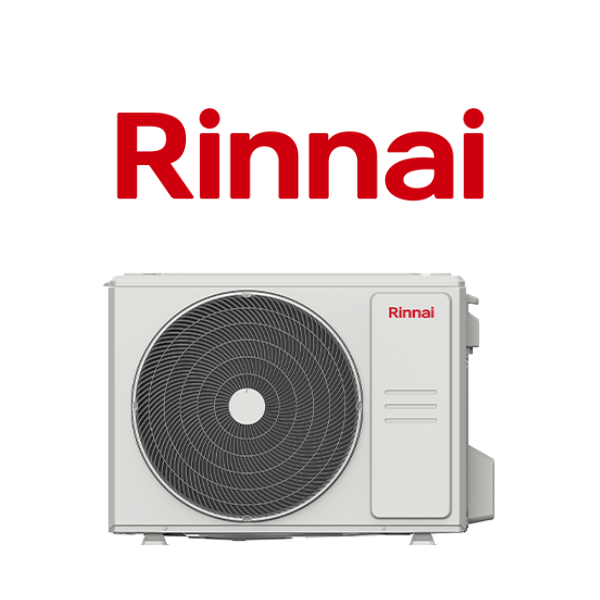

Rinnai MON3H07B 7.0kW Outdoor Multi Air Conditioning Unit (3 Connectable Units)
Rinnai Outdoor Multi Unit (3 Connectable Units)
$2,100.91 Excl GST
.jpg)
Rinnai MON3H07B 7.0kW Outdoor Multi Unit (3 Connectable Units)
Rinnai Inverter Multi Split Systems can be used in a multitude of combinations. After selecting your indoor unit types, these are then paired with an outdoor unit (4 units to choose from) with capacities ranging from 7kW up to 13kW. With a variety of unit types and capacities available, Rinnai has a system configuration to suit virtually any requirement.
One Rinnai MON3H07B outdoor unit can be connected to up to 3 indoor units which can be individually controlled. This installation option not only offers a great space-saving solution, but also helps to cut down overall running costs by allowing you to decide which rooms are heated or cooled as required.
(MON3H07B)
| Outdoor Unit Name | MON3H07B | MON4H09B | MON5H11B | MON5H13B |
|---|---|---|---|---|
| Cooling Capacity (kW) | 7.0 | 9.0 | 11.0 | 13.0 |
| Heating Capacity (kW) | 7.4 | 9.3 | 12.3 | 13.5 |
| Rated Input Power Cool/Heat (kW) | 1.98 / 1.59 | 2.07 / 2.07 | 3.10 / 3.10 | 3.80 / 3.22 |
| Rated Input Current Cool/Heat (A) | 8.9 / 7.28 | 10.09 / 10.3 | 15.65 / 14.19 | 16.87 / 14.31 |
| AEER / ACOP | 3.71 / 4.54 | 4.24 / 4.38 | 3.64 / 3.89 | 3.37 / 4.11 |
| Maximum Input Current (A) | 17.5 | 19.0 | 22.0 | 30.0 |
| Recommended Circuit Breaker (A) | 25 | 35 | ||
| Compressor Type | Inverter Twin Rotary | |||
| Sound Power Level dBA | 66 | 68.5 | 67.9 | 72 |
| Net Dimensions (HxWxD) (mm) | 673 x 890 x 342 | 810 x 946 x 410 | 975 x 980 x 451 | |
| Gross Dimensions (HxWxD) (mm) | 790 x 1030 x 438 | 935 x 1090 x 500 | 1090 x 1145 x 500 | |
| Net/Gross Weight (kg) | 48 / 61.5 | 66.2 / 83 | 76 / 93 | 91 / 106.4 |
| Refrigerant Type / Factory Precharge | R32 / 1850 | R32 / 2400 | R32 / 2590 | R32 / 2950 |
| Operation Range Cool/Heat (C) | -15 to 50 / -25 to 30 | |||
| Piping Length Total/Per Branch (m) | 60 / 30 | 80 / 35 | ||
| Max Vertical Diff (ODU Above IDU/ODU Below IDU) (m) | 10 / 15 | |||
| Max Height Diff Between IDU (m) | 10 | |||
| Pipe Sizes (mm) (Liquid/Gas) | 3x6.35 / 3x9.52 | 4x6.35 / 3x9.52 + 1x12.7 | 5x6.35 / 4x9.52 + 1x12.7 | 5x6.35 / 3x9.52 + 2x12.7 |
| SKU | MON3H07B |
| Brand | Rinnai |
| Shipping Weight | 61.5000kg |
| Shipping Width | 0.438m |
| Shipping Height | 0.790m |
| Shipping Length | 1.030m |
| Shipping Cubic | 0.356400600m3 |
| Unit Of Measure | ea |
