Rinnai P Series 5.0kW HSNRP50B Wall Split Air Conditioning System
HSNRP50B Rinnai Wall Split
$1,185.45 Excl GST
.jpg)

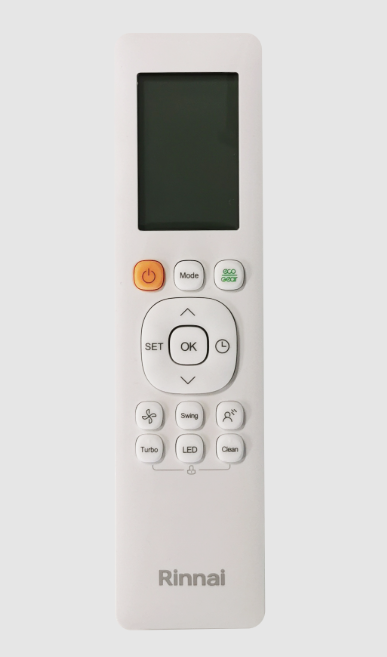

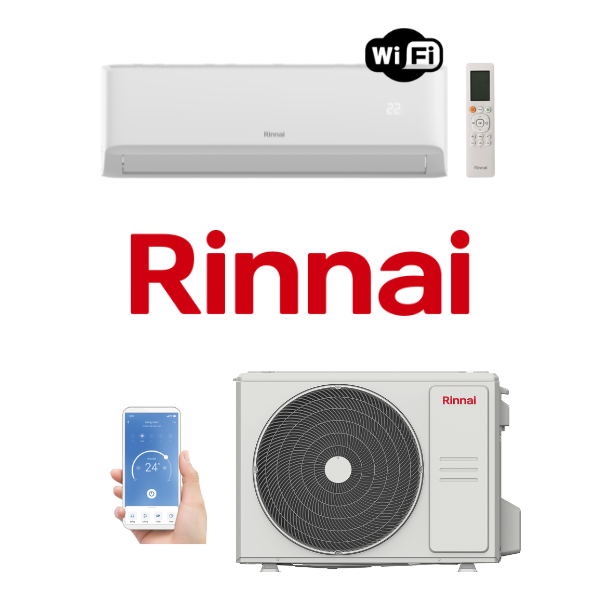

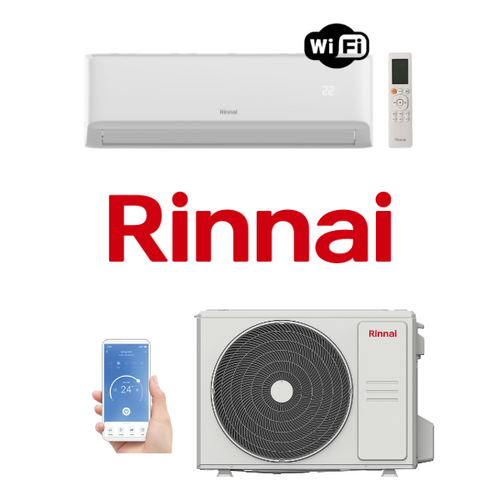

Rinnai P Series HSNRP50B 5.0kW Wall Split (Built-In Wi-Fi) Air Conditioning System - Includes Outdoor Unit HONRP50B and Wireless Controller
Designed for Australia’s ever-changing climate, the Rinnai P Series Inverter Split System provides both optimal heating and cooling all year round no matter where you live.
Packed with innovative features including Wi-Fi connectivity, self-cleaning function, and sleep mode, the P Series is the ultimate in providing complete comfort. This smart system can also work around your unique lifestyle with an ultra-practical timer function, allowing you to set the unit’s operation times to achieve the perfect room temperature. Encased in a sleek contemporary design, the Rinnai P Series range is durable, convenient, and easy to maintain.
Key Features:

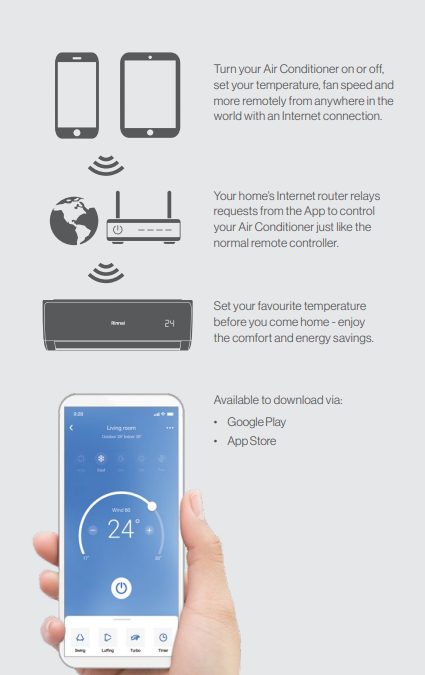

- Wi-Fi Control
- Dehumidifying Mode
- Superior Corrision Protection
- Inverter Technology
- Quiet Operation
- Demand Control
- 3D Airflow
- R32 Gas Refrigerant
(HSNRP50B)
| System | HSNRP26B | HSNRP35B | HSNRP50B | HSNRP60B | HSNRP70B | HSNRP80B |
|---|---|---|---|---|---|---|
| Rated Cooling Capacity (kW) | 2.6 | 3.5 | 5.0 | 6.0 | 7.0 | 8.0 |
| Rated Heating Capacity (kW) | 2.7 | 3.8 | 5.4 | 6.5 | 7.8 | 8.3 |
| Power Supply (V/Ph/Hz) | 220-240 / 1 / 50 | |||||
| Recommended Circuit Breaker (A) | 16 | 20 | 25 | |||
| Connectivity | Wi-Fi Enabled | |||||
| Demand Response Enabling Device | DRED Enabled | |||||
| Capacity Range Cool/Heat (kW) | 1.0-3.5 / 1.4-4.0 | 1.5-4.9 / 1.8-5.1 | 2.1-7.2 / 2.5-7.8 | 3.2-8.0 / 2.2-8.8 | ||
| Rated Power Input Cool/Heat (kW) | 530 / 510 | 790 / 830 | 1280 / 1340 | 1750 / 1686 | 1920 / 1990 | 2200 / 2280 |
| Rated Current (A) | 2.5 / 2.5 | 3.8 / 5.0 | 5.8 / 6.0 | 8.0 / 8.2 | 10.5 / 10.8 | |
| AEER/ACOP (W/W) | 4.98 / 5.27 | 4.42 / 4.56 | 3.90 / 4.02 | 3.42 / 3.85 | 3.53 / 3.73 | 3.39 / 3.61 |
| TCSPF: Hot/Mixed/Cold (Cool) | 8.02 / 7.50 / 7.89 | 7.00 / 6.76 / 7.07 | 6.19 / 5.83 / 6.17 | 5.86 / 5.61 / 5.99 | 5.36 / 5.14 / 5.37 | 5.38 / 5.21 / 5.48 |
| HSPF: Hot/Mixed/Cold (Heat) | 5.79 / 5.35 / 4.96 | 6.23 / 5.22 / 4.50 | 4.89 / 4.31 / 3.71 | 5.31 / 4.29 / 3.52 | 4.97 / 4.32 / 3.82 | 4.96 / 4.20 / 3.66 |
| Star Rating: Hot/Mixed/Cold (Cool) | 6.5 / 5.5 / 6.0 | 5.0 / 5.0 / 5.5 | 4.5 / 4.0 / 4.5 | 4.0 / 4.0 / 4.0 | 3.5 / 3.5 / 3.5 | |
| Star Rating: Hot/Mixed/Cold (Heat) | 4.0 / 3.5 / 3.0 | 4.5 / 3.5 / 3.0 | 3.0 / 2.5 / 2.0 | 3.5 / 2.5 / 2.0 | 3.0 / 2.5 / 2.0 | |
| Maximum Input Power Cool/Heat (W) | 2300 | 3600 | 4050 | |||
| Maximum Input Current Cool/Heat (A) | 10.5 | 15.5 | 17.5 | |||
| Suitable Area Coverage up to 2.6m insulated ceiling (m2) | 11-17 | 16-23 | 23-33 | 27-40 | 32-47 | |

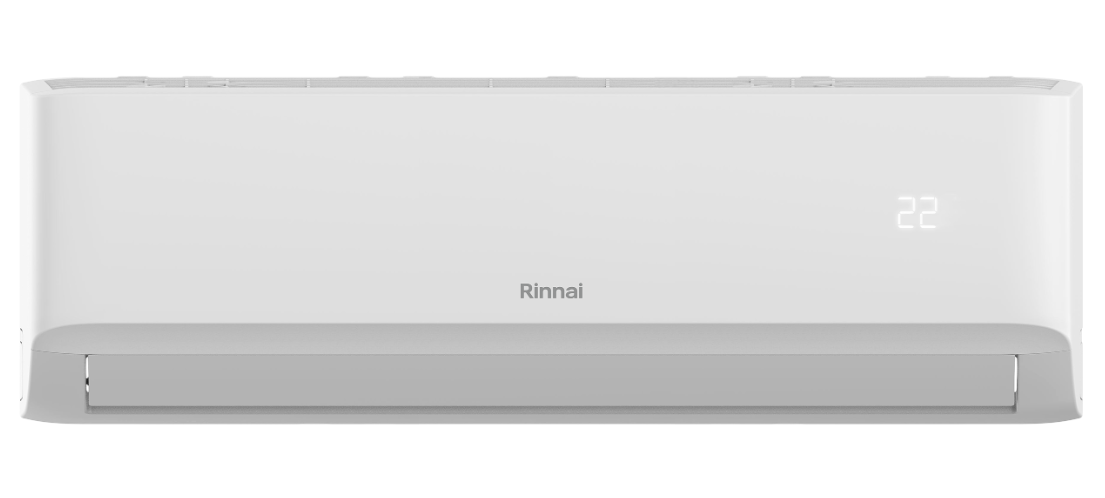

| Indoor Unit | HINRP26B | HINRP35B | HINRP50B | HINRP60B | HINRP70B | HINRP80B |
| Air Flow (Turbo/H/M/L/Min) (L/s) | 175 / 139 / 100 / 83 / 56 | 183 / 147 / 106 / 86 / 58 | 264 / 222 / 167 / 139 / 89 | 382 / 303 / 250 / 229 / 147 | ||
| Moisture Removal (L/h) | 1.0 | 1.2 | 1.8 | 2.1 | 2.4 | 3.0 |
| Sound Pressure Level @1m (Turbo/H/M/L/Min) dB(A) | 46.4 / 39 / 32.5 / 30 / 24.5 | 46.7 / 39 / 32.5 / 30 / 24.5 | 47.1 / 44.5 / 38 / 34.5 / 28 | 57.6 / 45 / 39 / 33.5 / 29.5 | ||
| Air Swing Louvres (Direction) | 4-Way Swing | |||||
| Unit Dimensions (HxWxD) (mm) | 295 x 802 x 200 | 321 x 971 x 228 | 337 x 1082 x 234 | |||
| Packing Dimensions (HxWxD) (mm) | 375 x 875 x 288 | 405 x 1045 x 308 | 415 x 1155 x 318 | |||
| Net/Gross Weight (kg) | 8.5 / 11.5 | 11.1 / 15.2 | 13.5 / 17.8 | |||
| Operating Range Cool/Heat (C) | 16 to 32 / 0 to 30 | |||||

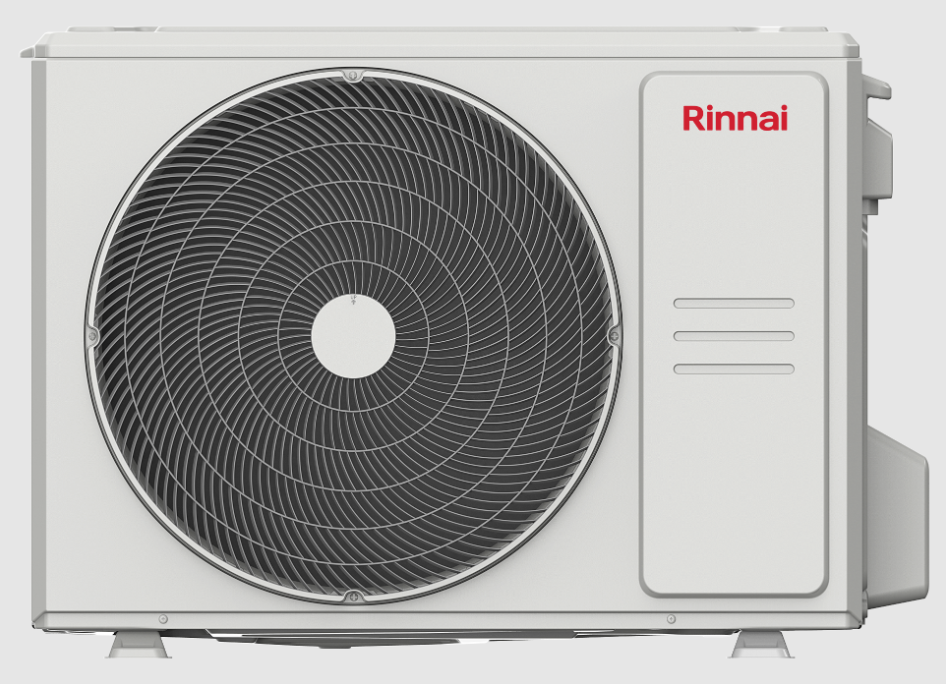

| Outdoor Unit | HONRP26B | HONRP35B | HONRP50B | HONRP60B | HONRP70B | HONRP80B |
| Sound Power Level dB(A) | 57.8 | 58.5 | 65.2 | 65 | 66.5 | |
| Sound Pressure Level @1m dB(A) | 55.5 | 59.5 | 61 | |||
| Unit Dimensions (HxWxD) (mm) | 554 x 805 x 330 | 673 x 890 x 342 | ||||
| Packing Dimensions (HxWxD) (mm) | 615 x 915 x 370 | 740 x 995 x 398 | ||||
| Net/Gross Weight (kg) | 32.2 / 35.1 | 38.3 / 41.6 | 42.4 / 46.9 | |||
| Refrigerant Type/Amount (kg) | R32 / 0.90 | R32 / 1.26 | R32 / 1.40 | |||
| Pipe Sizes (Liquid/Gas) (mm) | 6.35 / 9.52 | 6.35 / 12.7 | 6.35 / 15.88 | |||
| Maximum Pipe Length (m) | 25 | 30 | 50 | |||
| Chargeless Length (m) | 10 | |||||
| Extra Charge for Lengths >10m (g/m) | 12 | |||||
| Maximum Vertical Separation (m) | 10 | 20 | 25 | |||
| Ambient Temp Limits Cool/Heat (C) | 0 to 52 / -15 to 24 | 0 to 50 / -15 to 24 | -15 to 50 / -15 to 24 | |||
| SKU | HSNRP50B |
| Model # | HSNRP50B |
| Brand | Rinnai |
| Shipping Weight | 49.4000kg |
| Shipping Cubic | 0.275914000m3 |
| Unit Of Measure | ea |
Warranty
Rinnai offers a 5-year warranty for all of their Air Conditioners.
