Temperzone ISD116KYXKIT Single Phase 11.4kW Ducted Split System
ISD116KYX/OSA116RKSGH Digital Scroll Ducted System
.jpg)

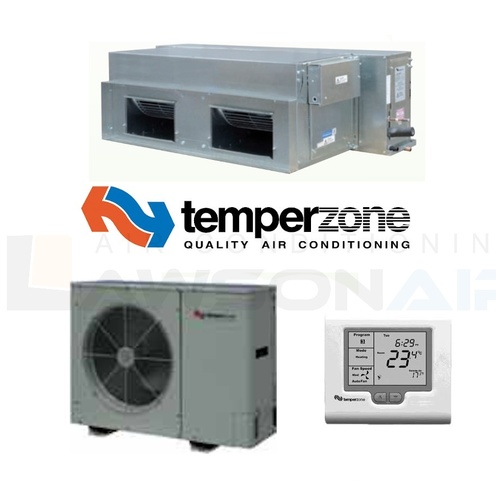

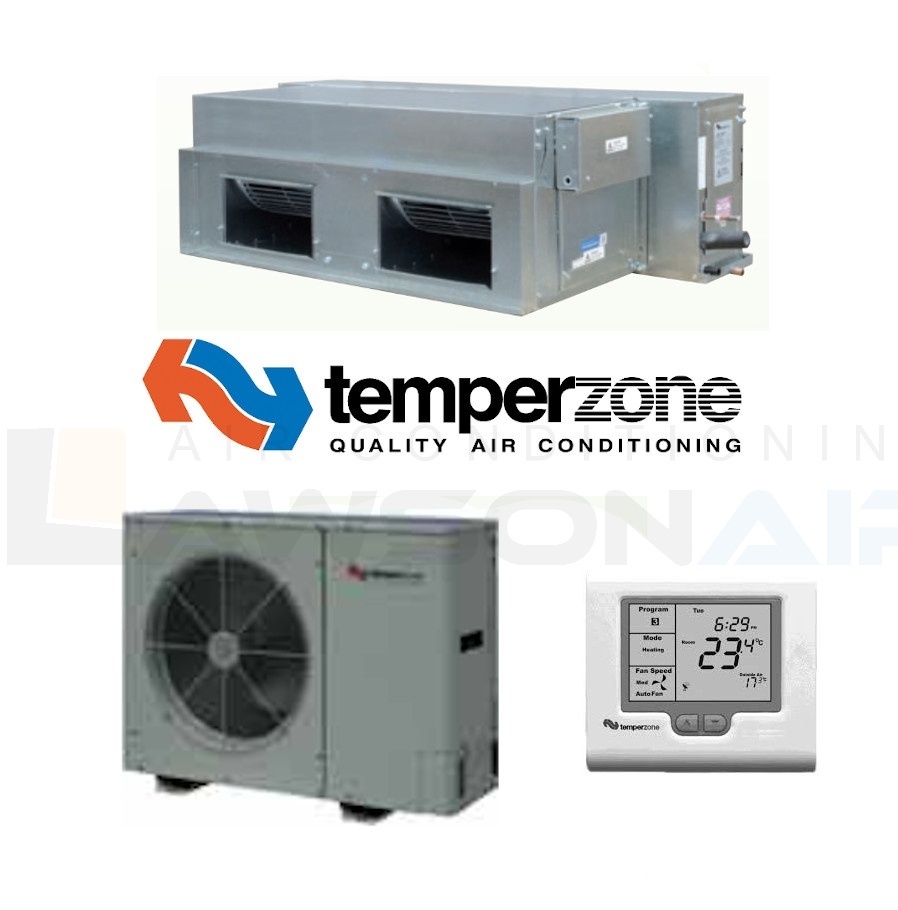

Temperzone ISD116KYXKIT 11.4kW Ducted Split System - Includes Outdoor Unit OSA116RKSGH & Wired Controller TZT-100
Temperzone intelligent system control technology offers leading energy efficiency with precision control of the air conditioners refrigeration system. Using advanced Inverter Compressor Technology, Temperzone ducted systems are able to deliver precise temperature and humidity control as well as a rapid cooling and heating capability.
Features:
- Ecologically Aware
- Efficiency
- Innovative Noise Reduction Technology
- Easy Access To Spare Parts
(ISD116KYXKIT)

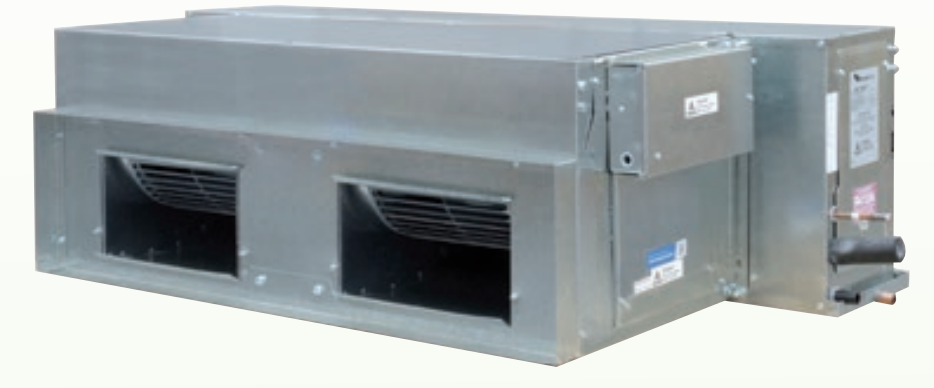

| Indoor | ISD116KYX | ||
| Outdoor | OSA116RKSGH | ||
| Refrigerant Type | R410A | ||
| Power Supply (Volts - Phase - Hz) | 230 / 1 / 50 | ||
| Cooling | Capacity - Rated (Range) | kW | 11.1 (4.6 - 11.4) |
| Working Range | °C | -10 to 52 | |
| Efficiency - Rated | W/W | 3.28 | |
| Heating | Capacity - Rated (Range) | kW | 10.8 (4.3 - 10.8) |
| Working Range | °C | -15 to 25 | |
| Efficiency - Rated | W/W | 3.55 | |
| Indoor Unit | Dimensions (WxDxH) | mm | 430 x 1150 x 785 |
| Air Flow | l/s | 630 | |
| Net Weight | kg | 65.0 | |
| Outdoor | Dimensions (WxDxH) | mm | 965 x 1120 x 425 |
| Net Weight | kg | 128.0 | |
| Compressor Type | - | - | |
| Fan Motor Output | W | - | |
| Pipe Size | Pipe Sizes | mm | 16 / 9.5 |
| Coupler Style | - | - | |
| Minimum Length | m | - | |
| Maximum Length | m | 60 | |
| Pre Charge Length | m | 10 | |
| Additional Refrigerant | g / m | - | |
| Lift | m | 20 | |
| Electrical | Run Amps | 16.9 | |
| Maximum Run Amps | 20.0 | ||
| Air Spigot | Supply Air Spigot Dimensions (W x H) | mm | 968 x 276 |
| Return Air Spigot Dimensions (W x H) | mm | 934 x 359 | |
| SKU | ISD116KYXKIT |
| Brand | Temperzone |
| Shipping Weight | 193.0000kg |
