Toshiba 5.0kW RAS-18N3KV2-A Wall Split Air Conditioning System

RAS-18N3KV2-A / RAS-18N3AV2-A Toshiba Wall Split




$1,351.00 Incl GST
$1,228.18 Excl GST
Sold Out

Dear Customers, our online sales will close on 23rd December 2024 at 3:00 PM and will recommence on 2nd January 2025 at 8:00 AM.

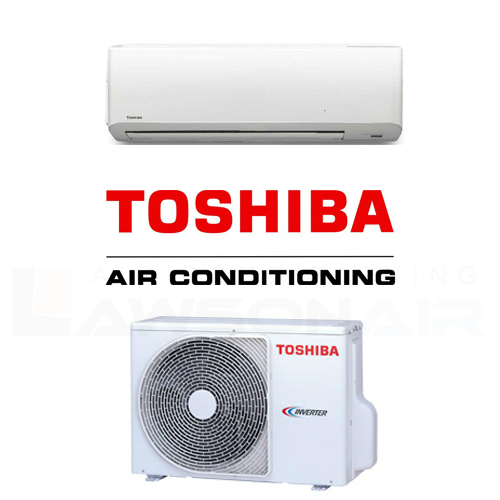

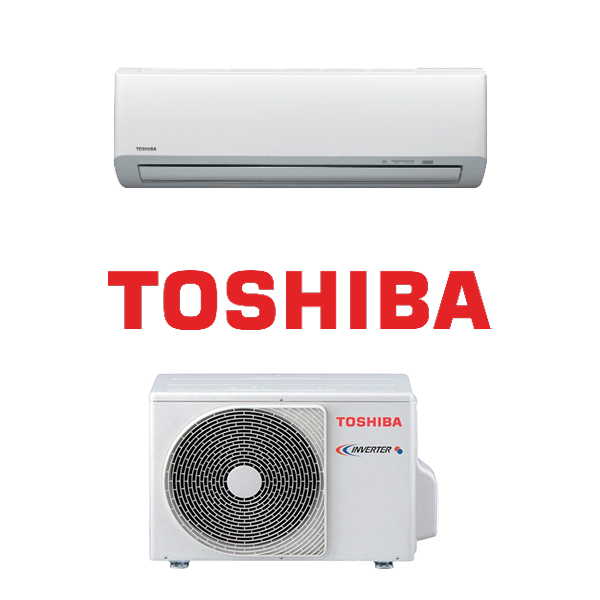

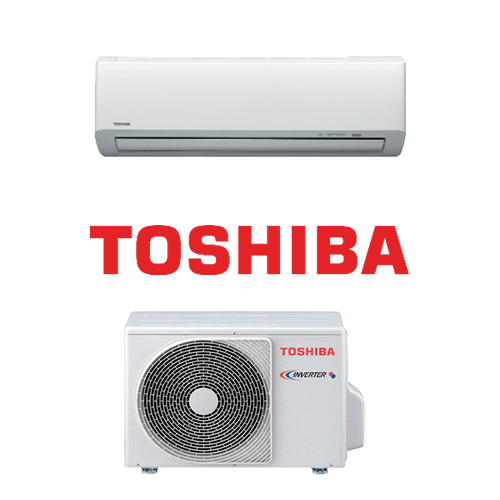

Toshiba RAS-18N3KV2-A 5.0kW Inverter - Includes Outdoor Unit RAS-18N3AV2-A

The Toshiba RAS-18N3KV2-A is an efficient 5.0kW inverter system. This Wall Mounted Split Unit has a cooling capacity ranging from 1.1kW up to 6.0kW and a heating capacity ranging from 0.8kW up to 6.3kW.

Wall-mounted split system air conditioners are an exceptional choice for those wanting a neat unit that blends unobtrusively with its surroundings. The same advanced technology that makes the indoor unit so compact also makes it powerful, yet extremely quiet, and kind on energy costs. The pleasing design of the high wall air conditioner also has functional appeal. The smooth surface of the flat panel models can be wiped clean and the flat panel easily removed for more thorough cleaning. Air purifying filters and innovative air flow systems ensure that fresh, conditioned air flows to every corner of the room.

(RAS-18N3KV2-A)

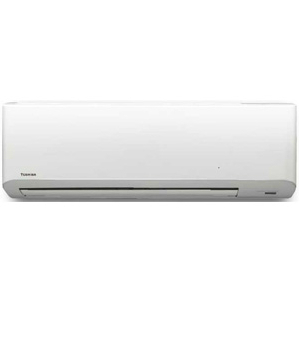

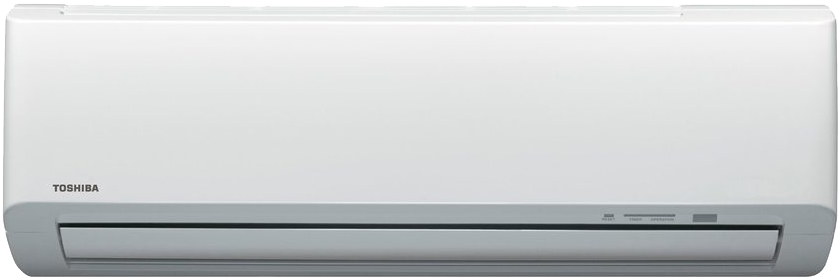

Indoor Unit RAS-18N3KV2-A

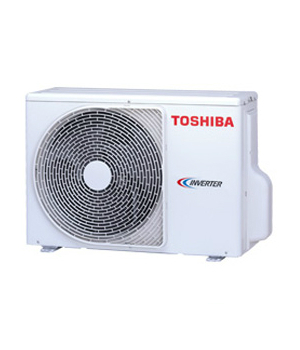

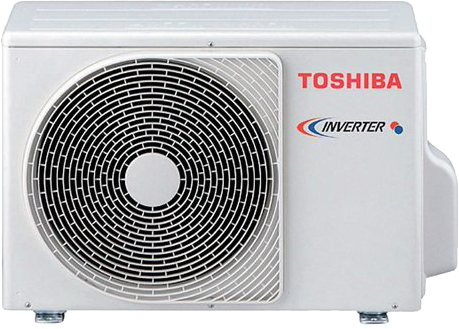

Outdoor Unit RAS-18N3AV2-A
Cooling Capacity - Rated kW 5
Cooling Capacity - Range kW 1.1 - 6.0
Power Input - Cooling (min - rated - max) kW 0.18 - 1.42 - 2.0
Operating Current - Cooling (min - rated - max) A 1.06 - 6.41 - 8.90
EER - Cooling (min - rated - max)   3.00 - 3.52 - 6.11
AEER - Cooling   3.48
Heating Capacity - Rated kW 5.8
Heating Capacity - Range kW 0.8 - 6.3
Power Input - Heating (min - rated - max) kW 0.14 - 1.56 - 1.70
Operating Current - Heating (min - rated - max) A 0.84 - 6.97 - 7.58
COP - Heating (min - rated - max)   3.71 - 3.72 - 5.71
ACOP - Heating   3.67
INDOOR UNIT Airflow Volume - Cooling (h-l) L/s 265 - 163
Moisture removal L/hr 2.8
Sound Pressure - Cooling (h/l) dB(A) 44.32
Dimensions (HxWxD) mm 320 x 1050 x 243
Net Weight kg 13
Sound Power - Cooling (h) dB(A) 59
Fan Motor Output W 30
OUTDOOR UNIT Dimensions (HxWxD) mm 550 x 780 x 290
Net Weight kg 41
Sound Pressure - Cooling (h) dB(A) 49
Sound Power - Cooling (h) dB(A) 64
Operating range - Cooling °C -10 to 46
Sound Pressure - Heating (h) dB(A) 50
Operating Range - Heating °C -15 to 24
PIPE SIZE Liquid Side mm 6.35
Gas Side mm 12.7
Maximum Piping Length m 20
Maximum Piping Height Difference m 10
Chargeless Length m 15
Compressor Type   DC Twin Rotary
Power Supply V / ph / Hz 220-240 / 1 / 50
SKU RAS-18N3KV2-A
Brand Toshiba
Shipping Weight 54.0000kg
